Yamaha CXR10 MK3 | 10in Passive Loudspeaker - 123dB SPL | Compact Utility Speaker for PA and Monitor Use

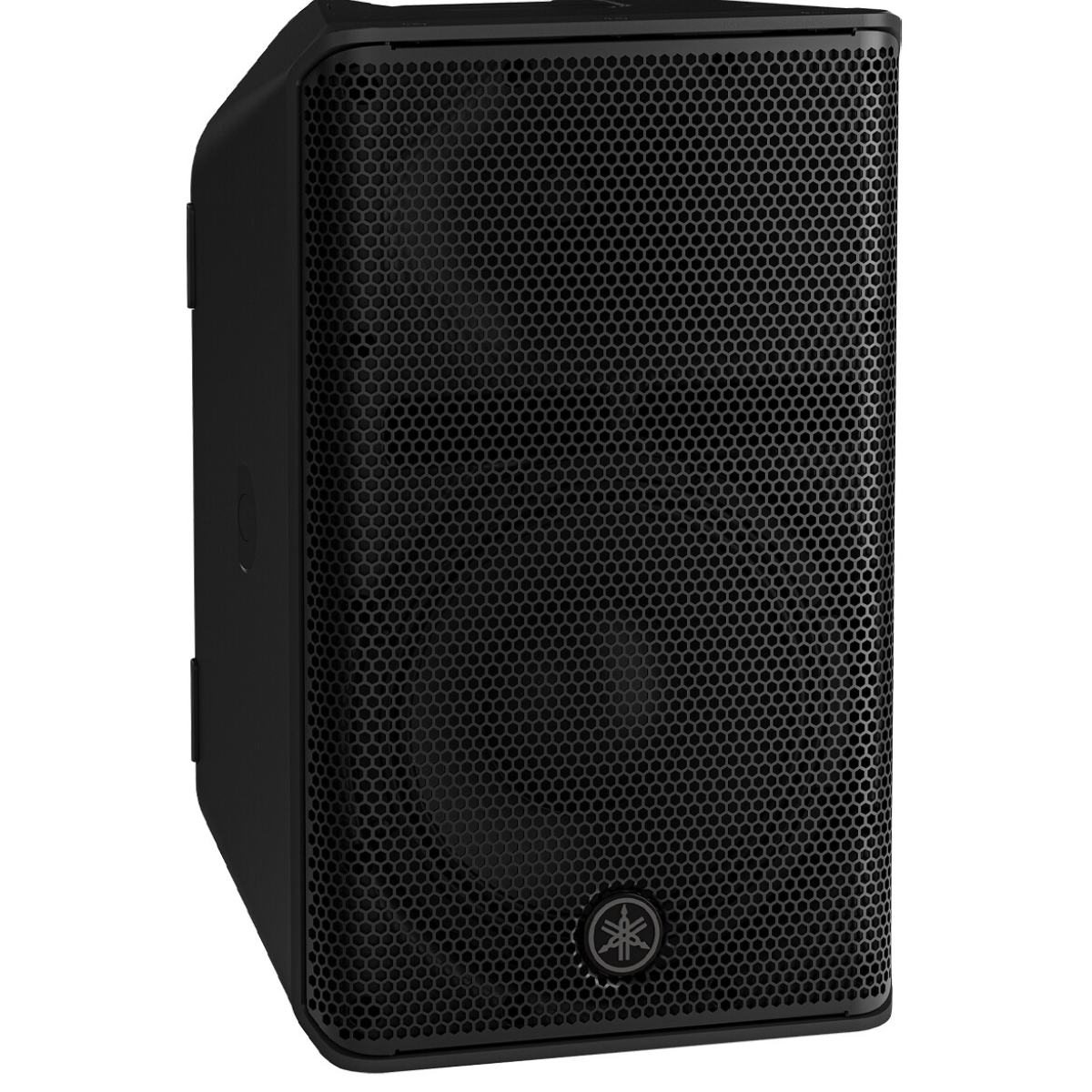

Yamaha CXR10 MK3  (Yamaha CXR10MKIII)

Passive PA Speaker

Yamaha CXR10 MK3 is a 2-way passive loudspeaker built for professional sound reinforcement, stage monitoring, and fixed installation use. As the most compact model in the CXR mk3 series, it combines clear full-range performance, controlled coverage, and a lightweight enclosure that makes it a practical choice for mobile systems and permanent installations alike.

Yamaha CXR10 MK3 Competitive Differences

• Compact 10-inch passive design with 123 dB SPL peak output for flexible PA, monitor, and utility speaker applications
• Lightweight molded enclosure with optimized horn and port design, dual-angle pole sockets, and compatibility with dedicated Yamaha processor tuning

Yamaha CXR10 MK3 Description

The Yamaha CXR10 MK3 is designed for users who need a passive loudspeaker that is easy to deploy without giving up clarity or control. Its 10-inch low-frequency driver and 1.75-inch high-frequency compression driver are housed in a 2-way bass-reflex enclosure that works well for portable PA setups, stage monitoring, speech reinforcement, and installed sound systems in smaller venues and event spaces.

Yamaha equips the CXR10 MK3 with proprietary high-durability LF and HF drivers engineered for reliable performance and smooth response. A large-diameter horn helps maintain directivity control across a wide frequency range, while optimized port positioning reduces standing wave effects for cleaner and more accurate low-frequency reproduction. The result is a speaker that delivers precise sound and useful output from a compact cabinet.

The lightweight polypropylene enclosure is built for everyday usability and flexible positioning. Its symmetrical cabinet supports mirror placement for monitor applications, while dual-angle pole sockets allow either a 0-degree or -7-degree down tilt for better audience coverage. Rigging points for eyebolts and support for the optional UB-DXRDHR10A U-bracket also make the speaker suitable for suspended or fixed installation use.

When paired with compatible Yamaha PX and PC-D Series amplifiers or other supported signal processors, the Yamaha CXR10 MK3 can take advantage of dedicated speaker processor tuning settings for optimized system performance. This makes it a strong option for users who want a passive loudspeaker that integrates well into a professionally tuned Yamaha sound system.

CXR10 MK3 Features

• 2-way passive loudspeaker with bass-reflex design
• 10-inch low-frequency driver with 2.5-inch voice coil
• 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
• Large-diameter horn for wide-range directivity control
• Optimized port positioning for smoother low-frequency response
• Lightweight high-performance molded polypropylene enclosure
• Symmetrical cabinet design for mirror monitor placement
• Compatible with dedicated Yamaha speaker processor tuning settings
• Dual-angle pole sockets with 0-degree or -7-degree tilt
• Rigging points for eyebolt suspension
• Compatible with optional UB-DXRDHR10A U-bracket
• Compatible with optional SPCVR-DXR103 protective cover
• SpeakON NL4MP input connectors wired in parallel

CXR10 MK3 Specifications

• Speaker Type: 2-way speaker, bass-reflex
• Frequency Range (-10 dB): 54 Hz - 20 kHz
• Coverage: 90° H x 60° V
• Crossover: 2.0 kHz
• Nominal Impedance: 8 Ω
• Sensitivity: 93 dB SPL (1W, 1m on axis)
• Peak SPL: 123 dB SPL
• LF Driver: 10 in cone, 2.5 in voice coil
• HF Driver: 1.75 in diaphragm, 1 in throat compression driver
• Power Rating (Noise): 275W
• Power Rating (PGM): 550W
• Power Rating (Peak): 1100W
• Connectors: SpeakON NL4MP x2 (parallel connected)
• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Top x1
• Pole Socket: 35 mm x2, bottom, 0° or -7°
• Rigging: Top x2, Rear x1 for M8 x 15 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXRDHR10A
• Floor Monitor Angle: 55°
• Dimensions: 12.2 x 19.8 x 12.2 in (310 x 502 x 310 mm)
• Weight: 26.9 lb (12.2 kg)
• Optional Accessories: UB-DXRDHR10A U-bracket, SPCVR-DXR103 cover
