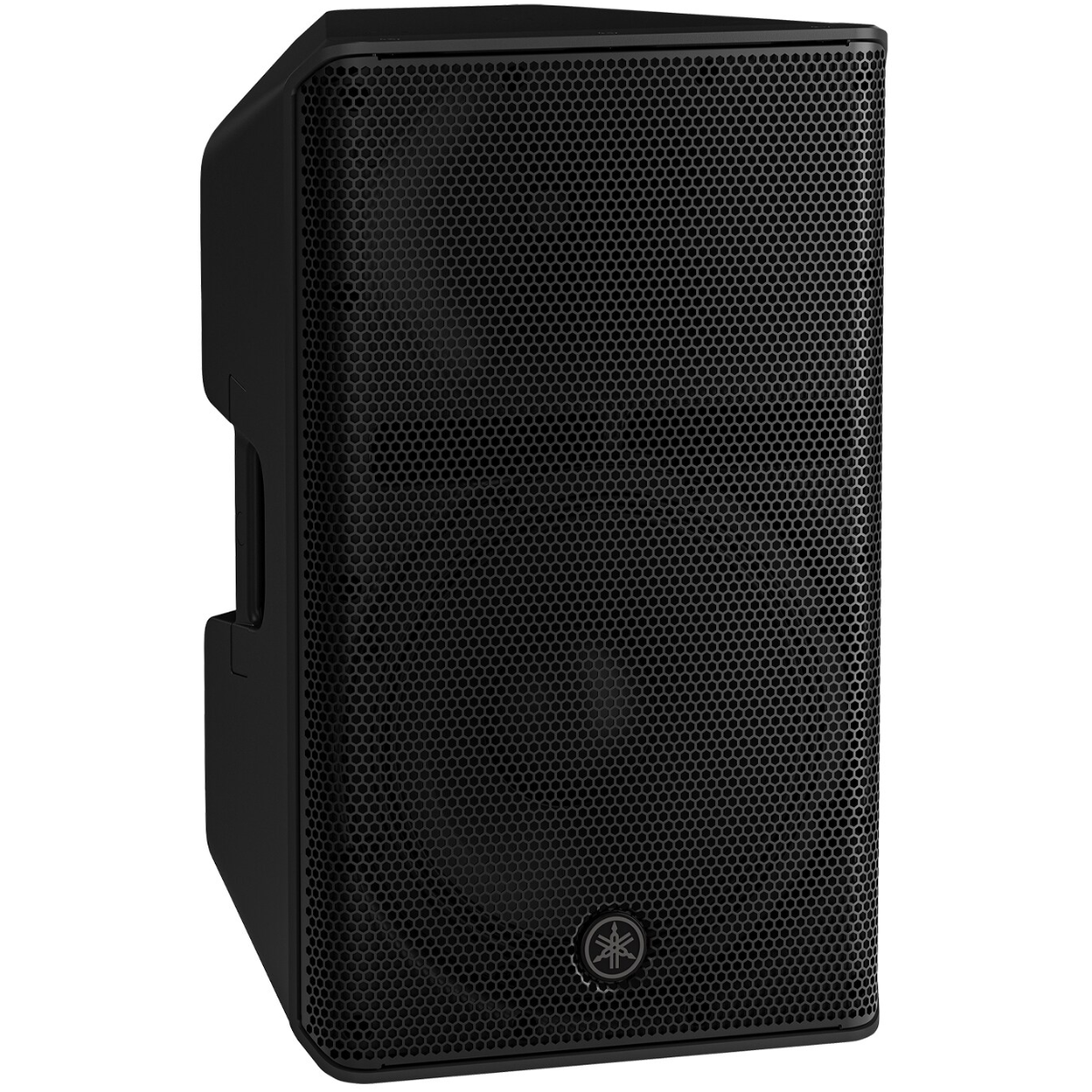

Yamaha CXR12 MK3 | 12in Passive Loudspeaker - 124dB SPL | Versatile PA Speaker for FOH and Monitor Use

889025171397 CXR12 MK3  (Yamaha CXR12MKIII)

Passive PA Speaker

Yamaha CXR12 MK3 is a 2-way passive loudspeaker built for professional sound reinforcement, floor monitoring, and fixed installation applications. It offers an excellent balance of size, output, and portability, making it a strong choice for users who need clear, controlled sound in a wide range of live and installed audio environments.

Yamaha CXR12 MK3 Competitive Differences

• 12-inch passive design with 124 dB SPL peak output for front-of-house, monitor, and side fill applications
• Lightweight molded enclosure with optimized horn and port design, dual-angle pole sockets, and compatibility with Yamaha processor tuning

Yamaha CXR12 MK3 Description

The Yamaha CXR12 MK3 is designed for users who want a passive loudspeaker that can handle a broad range of sound reinforcement duties. Its 12-inch low-frequency driver and 1.75-inch high-frequency compression driver are combined in a 2-way bass-reflex design that provides strong clarity, controlled coverage, and reliable output for live music, speech, DJ systems, houses of worship, and event production.

Yamaha equips the CXR12 MK3 with proprietary high-durability LF and HF drivers engineered for both performance and reliability. A large-diameter horn helps maintain directivity across a wide frequency range, while optimized port positioning reduces standing wave effects for smoother and more accurate low-frequency response. This gives the speaker a balanced sound that works well for both full-range PA use and monitor applications.

The lightweight polypropylene enclosure is built for practical deployment in portable and installed systems. Its symmetrical cabinet supports mirror placement for stage monitoring, while dual-angle pole sockets allow either a 0-degree or -7-degree down tilt for improved audience coverage. Integrated rigging points and support for the optional UB-DXRDHR12A U-bracket add flexibility for flown or mounted installations.

When paired with compatible Yamaha PX and PC-D Series amplifiers or other supported signal processors, the Yamaha CXR12 MK3 can take advantage of dedicated speaker processor tuning settings for optimized system integration. That makes it a strong option for users who want the flexibility of a passive speaker with the benefit of Yamaha system matching and control.

CXR12 MK3 Features

• 2-way passive loudspeaker with bass-reflex design
• 12-inch low-frequency driver with 2.5-inch voice coil
• 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
• Large-diameter horn for wide-range directivity control
• Optimized port positioning for smoother and more accurate low-frequency response
• Lightweight high-performance molded polypropylene enclosure
• Symmetrical cabinet design for mirror monitor placement
• Compatible with dedicated Yamaha speaker processor tuning settings
• Dual-angle pole sockets with 0-degree or -7-degree tilt
• Rigging points for eyebolt suspension
• Compatible with optional UB-DXRDHR12A U-bracket
• Compatible with optional SPCVR-DXR123 protective cover
• SpeakON NL4MP input connectors wired in parallel

CXR12 MK3 Specifications

• Speaker Type: 2-way speaker, bass-reflex
• Frequency Range (-10 dB): 51 Hz - 20 kHz
• Coverage: 90° H x 60° V
• Crossover: 1.9 kHz
• Nominal Impedance: 8 Ω
• Sensitivity: 94 dB SPL (1W, 1m on axis)
• Peak SPL: 124 dB SPL
• LF Driver: 12 in cone, 2.5 in voice coil
• HF Driver: 1.75 in diaphragm, 1 in throat compression driver
• Power Rating (Noise): 275W
• Power Rating (PGM): 550W
• Power Rating (Peak): 1100W
• Connectors: SpeakON NL4MP x2 (parallel connected)
• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Side x2
• Pole Socket: 35 mm x2, bottom, 0° or -7°
• Rigging: Top x2, Rear x1 for M10 x 18 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXRDHR12A
• Floor Monitor Angle: 52°
• Dimensions: 14.4 x 23.6 x 13.8 in (366 x 600 x 350 mm)
• Weight: 34.0 lb (15.4 kg)
• Optional Accessories: UB-DXRDHR12A U-bracket, SPCVR-DXR123 cover
