Yamaha CXS15 MK3 | 15in Passive Subwoofer - 126dB SPL | Deep Bandpass Bass for Live Sound

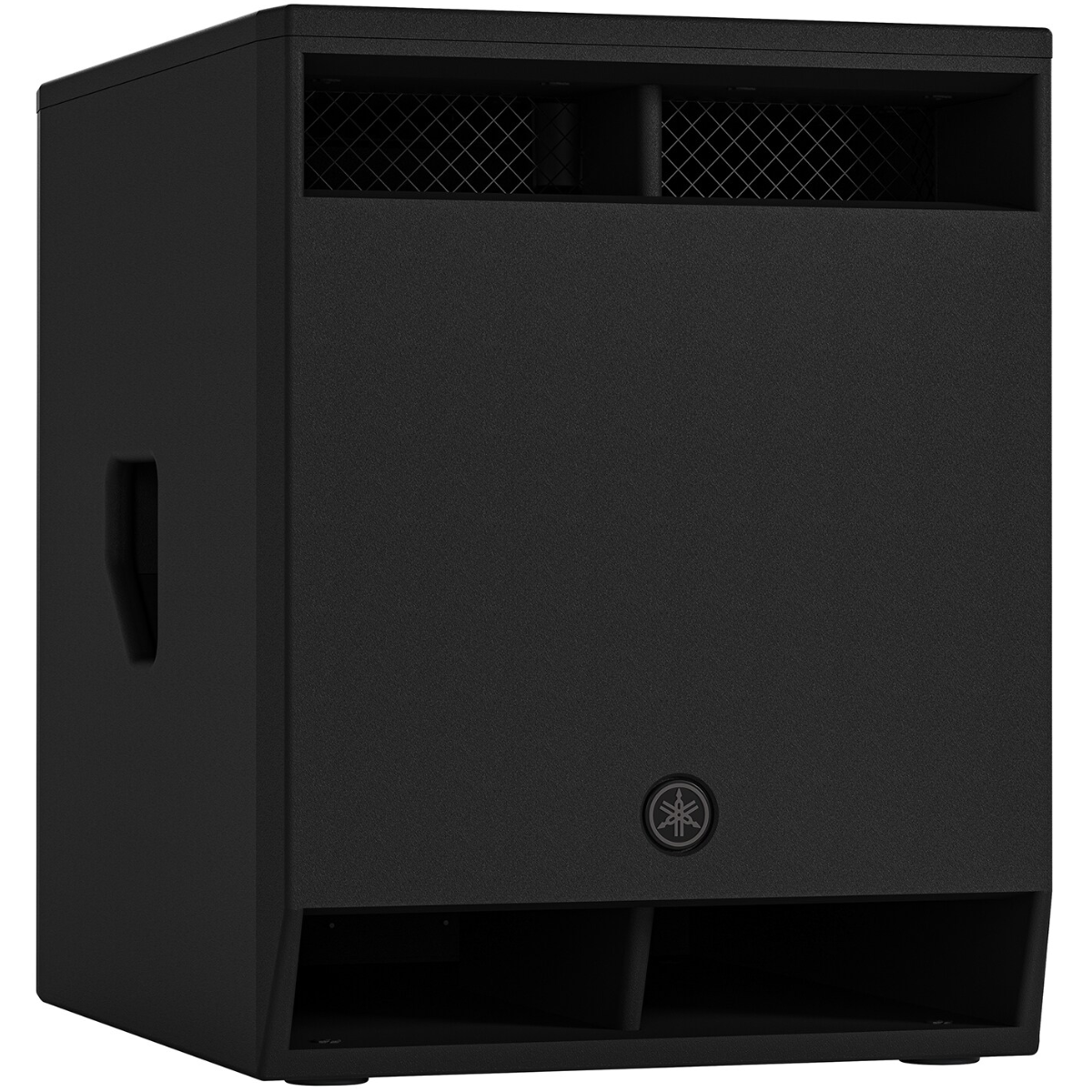

Yamaha CXS15 MK3  (Yamaha CXS15MKIII)

Passive Bandpass Subwoofer

Yamaha CXS15 MK3 is a passive bandpass subwoofer designed for professional low-frequency reinforcement in live sound and installed audio systems. Its acoustic design delivers deep, controlled bass with reduced unwanted cabinet and port noise, making it a reliable choice for users who need strong low-end performance with clean, consistent output.

Yamaha CXS15 MK3 Competitive Differences

• 15-inch proprietary long-excursion woofer with a durable 3-inch voice coil
• Bandpass cabinet design helps reduce unwanted noise while delivering deep, powerful bass
• Rugged plywood enclosure with scratch-resistant polyurea coating
• Dual pole sockets support both 35 mm and M20 speaker poles

Yamaha CXS15 MK3 Description

The Yamaha CXS15 MK3 is the mid-size model in Yamaha’s latest CXS MK3 passive subwoofer series, offering a practical balance of output, size, and portability. Designed for professional environments where dependable bass performance matters, it delivers deep and powerful low-frequency response while maintaining clarity at higher output levels.

Its 15-inch cone woofer uses Yamaha’s proprietary high-durability, long-excursion design with a 3-inch voice coil, helping the subwoofer handle demanding program material with confidence. The ideal bandpass structure works together with large ports and a high-performance grille to reduce wind noise and unwanted cabinet resonance, resulting in cleaner and more focused sub-bass reproduction.

The plywood cabinet is acoustically optimized for sound quality and finished in a durable black polyurea coating for added protection during transport, setup, and teardown. For system integration, the Yamaha CXS15 MK3 includes dual speakON NL4MP connectors and dual pole socket compatibility with both 35 mm and M20 threaded poles, making it easy to pair with compatible full-range speakers.

When used with Yamaha PX or PC-D Series amplifiers or other compatible signal processors, the CXS15 MK3 can take advantage of dedicated tuning settings for improved system performance. It also supports cardioid configurations when multiple units are deployed, helping improve audience-side bass impact while reducing low-frequency energy on stage.

CXS15 MK3 Features

• Passive bandpass subwoofer design
• 15-inch cone woofer
• 3-inch voice coil
• Yamaha proprietary long-excursion, high-durability speaker unit
• Deep, clear low-frequency performance with reduced unwanted cabinet noise
• Acoustically optimized plywood cabinet
• Durable black polyurea coating
• speakON NL4MP x 2 connectors with input and output
• Dual pole sockets: 35 mm and M20 threaded
• Compatible with Yamaha PX and PC-D Series amplifier tuning
• Supports cardioid mode with multiple units and compatible processing
• Optional SPW-1 speaker wheels available
• Optional SPCVR-DXS153 speaker cover available

CXS15 MK3 Specifications

• Speaker Type: Subwoofer, Band-pass
• Frequency Range (-10 dB): Passive 40 Hz - 180 Hz
• Extended Frequency Range (-10 dB): 35 Hz - 140 Hz
• Nominal Impedance: 4 Ω
• Sensitivity (1W, 1m on axis): 95 dB SPL
• Peak SPL: 126 dB SPL
• LF Component: 15-inch cone
• Voice Coil: 3-inch
• Power Rating (Noise): 325 W
• Power Rating (Program): 650 W
• Power Rating (Peak): 1300 W
• I/O Connectors: speakON NL4MP x 2 (Input x 1, Output x 1)
• Cabinet Material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handles: Side x 2
• Pole Socket: 35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
• Dimensions: 24.1 x 18.9 x 24.2 in (611 x 480 x 614 mm)
• Net Weight: 77.2 lb (35.0 kg)

What's In The Box

• Yamaha CXS15 MK3 passive subwoofer
• User documentation
