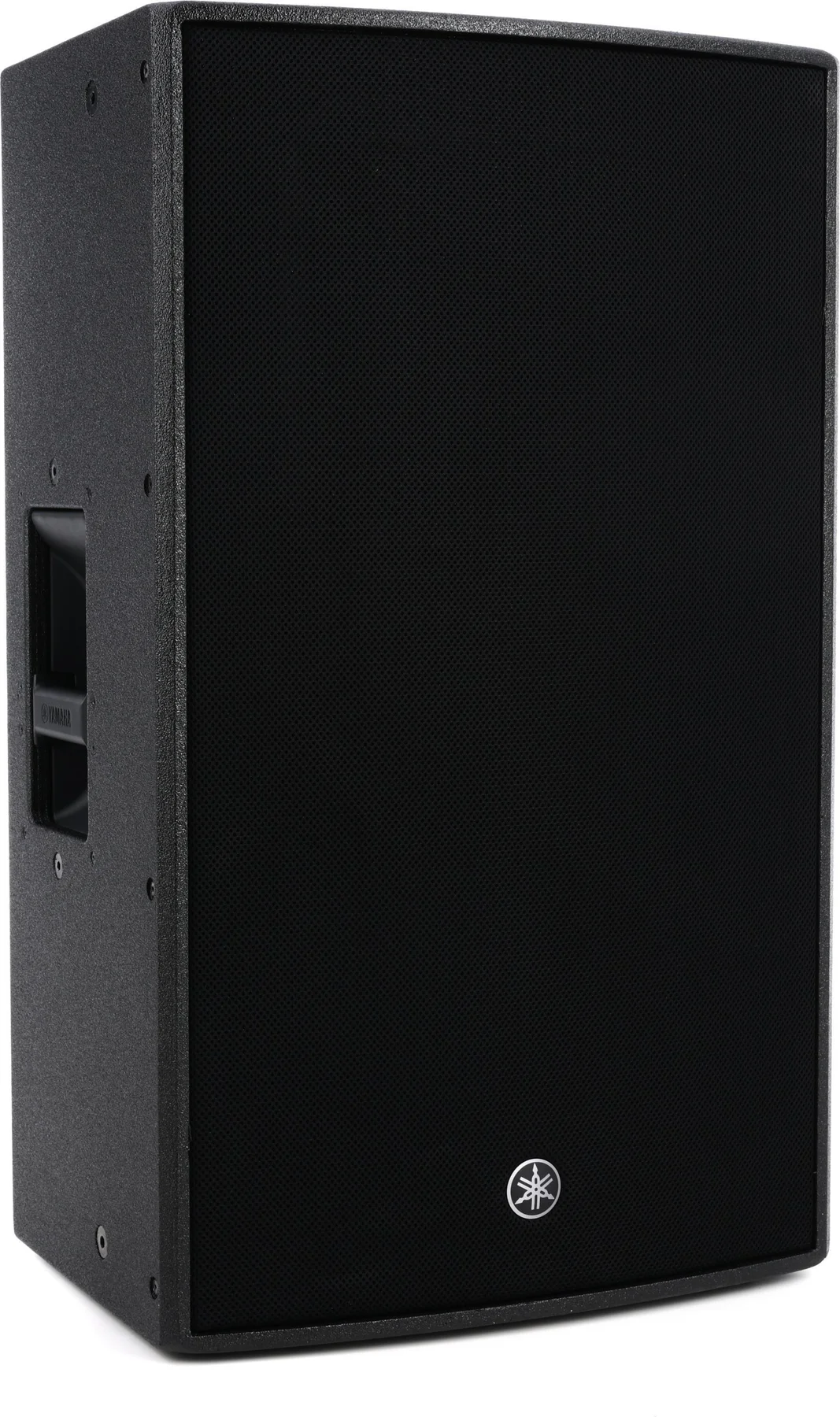

Yamaha CZR15 | 15 inch Passive Speaker | 1600W Peak with 129dB SPL

Yamaha CZR 15  (Yamaha CZR-15)

The Yamaha CZR15 is a 15-inch passive PA speaker built for high-output live sound with clear highs, strong low-end response, and flexible deployment options. With 1,600W peak power handling, 129dB SPL, and bi-amp capability, it is a strong choice for portable PA systems, installed sound, and stage monitoring.

Passive PA Speaker

Yamaha CZR15 is a high-performance 15-inch passive PA speaker designed for live sound reinforcement, portable event systems, and installed audio applications. Its 2-way bi-ampable design, high SPL capability, and flexible mounting options make it a practical choice for users who need powerful output, clear vocal reproduction, and easy system integration.

Yamaha CZR15 Competitive Differences

• 1,600W peak power handling with up to 129dB SPL for high-output sound reinforcement
• Rotatable constant directivity horn supports vertical or horizontal placement for flexible system design
• Custom transducers with neodymium magnets deliver detailed highs and controlled low-end performance
• Compatible with Yamaha PX Series amplifier speaker processor tuning settings for optimized system performance

Yamaha CZR15 Description

The Yamaha CZR15 is built for users who need strong sonic performance from a passive loudspeaker in a wide range of sound reinforcement environments. This 2-way cabinet combines a 15-inch low-frequency driver with a 2-inch high-frequency compression driver to deliver powerful output, clear detail, and dependable coverage for front-of-house or monitor use.

Its custom-designed transducers are engineered for both impact and clarity. The 15-inch woofer uses a 3-inch voice coil, cast-aluminum frame, and neodymium magnet to produce tight, controlled low end with solid mid-bass and vocal definition. The high-frequency section features a titanium diaphragm, 2-inch voice coil, 1-inch throat compression driver, and neodymium magnet for articulate top-end response.

The cabinet is designed for easy integration into different system configurations. A rotatable horn allows the Yamaha CZR15 to be used vertically or horizontally, while the constant directivity design helps maintain smooth and even coverage. It can also function effectively as a stage monitor, making it a flexible option for rental companies, venues, musicians, and production professionals.

The plywood enclosure is both lightweight and durable, finished with a premium-grade polyurea coating for added protection in demanding environments. When paired with a Yamaha PX Series amplifier, the speaker can also take advantage of dedicated processor tuning settings for EQ, limiting, crossover management, and delay alignment in larger systems.

CZR15 Features

• 2-way passive loudspeaker with 15-inch LF driver and 2-inch HF compression driver
• Bi-ampable design for flexible system configuration
• 1,600W peak power handling
• 800W program power rating
• Maximum peak SPL of 129dB at 1 meter
• Custom-designed transducers with neodymium magnets
• Titanium diaphragm high-frequency driver for detailed high-end response
• Rotatable horn for vertical or horizontal mounting orientation
• 90° horizontal by 50° vertical coverage
• Constant directivity horn for smooth, even sound dispersion
• Compatible with Yamaha PX Series amplifier processor tuning settings
• Plywood cabinet with durable polyurea coating
• Can be used in main PA or stage monitor applications
• Dual SpeakON parallel inputs

CZR15 Specifications

• Powered: No
• Power Configuration: 2-way Passive/Bi-amped
• LF Driver Size: 15 in woofer, 3 in voice coil with neodymium magnet
• HF Driver Size: 2 in HF compression driver
• Impedance: 8 ohms
• Power Rating: 800W Program
• Total Power: 1600W Peak
• Inputs: 2 x SpeakON (parallel)
• Frequency Range: 43Hz-20kHz (passive), 34Hz-20kHz (with DSP processing)
• Crossover Frequency: 2.0kHz
• Maximum Peak SPL: 129dB SPL @ 1m
• Horizontal Coverage Angle: 90 degrees
• Vertical Coverage Angle: 50 degrees
• Enclosure Material: Plywood cabinet with polyurea coating
• Mounting Options: 2 x 1.37 in (35mm) pole sockets, 12 x M10 fly points, wedge position
• Dimensions: 30 x 17.7 x 18.1 in
• Weight: 47 lb
• Manufacturer Part Number: CZR15
