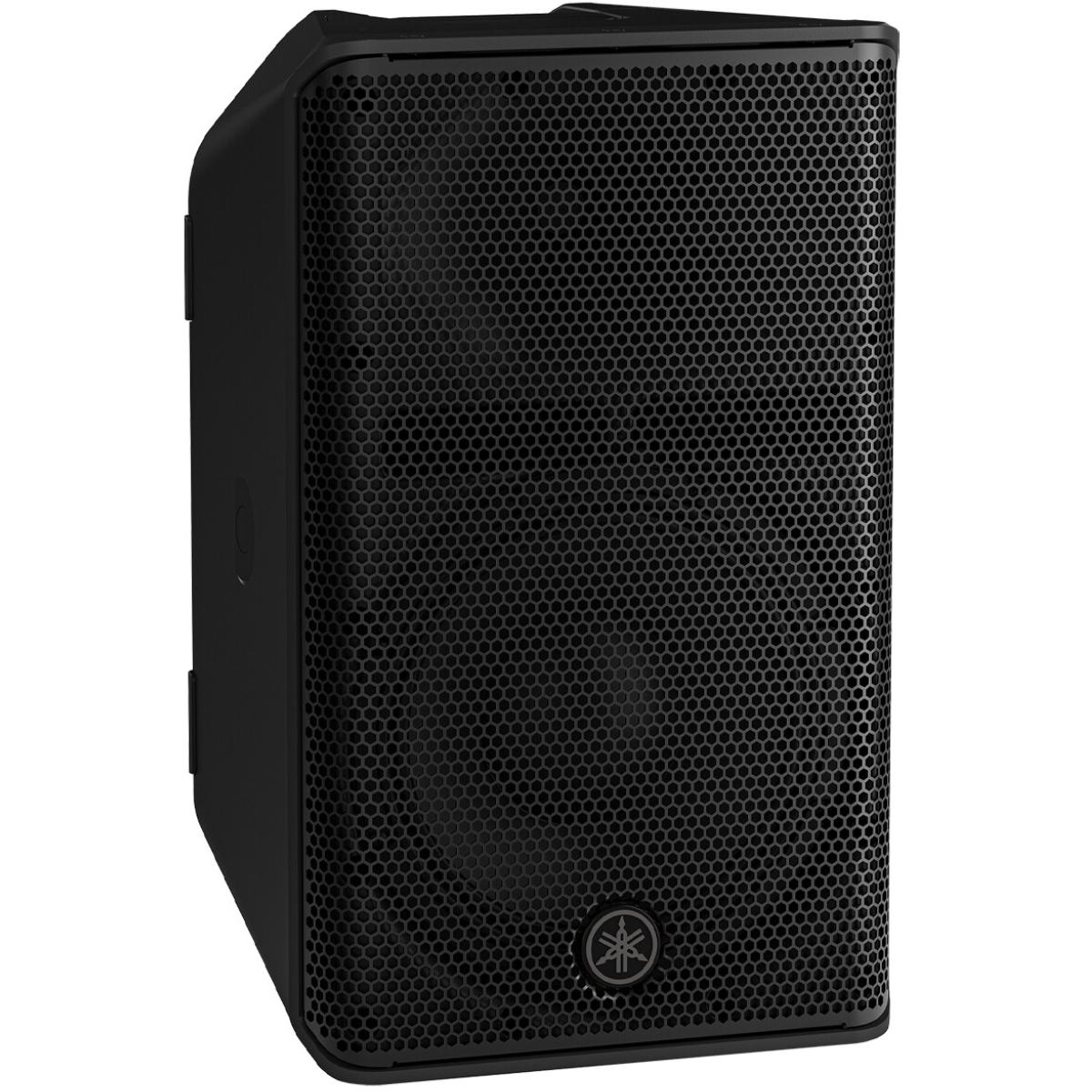

Yamaha DXR10 MK3 | 10in Powered Loudspeaker - 132dB SPL | Compact Utility Speaker with DSP and Bluetooth

Yamaha DXR10MKIII  (Yamaha DXR10 mk3)

Powered PA Speaker

Yamaha DXR10MKIII is a 2-way, bi-amped powered loudspeaker designed for professional sound reinforcement, stage monitoring, and utility speaker applications. Its compact and lightweight enclosure makes it easy to deploy in a wide variety of environments, while its advanced DSP, high-output amplifier, and Bluetooth-enabled remote control features give users powerful tools for dialing in clear, consistent sound.

Yamaha DXR10MKIII Competitive Differences

• 2000W Class-D amplification with up to 132 dB SPL output in a compact 10-inch format
• Advanced DSP features including FIR-X tuning, Drive Motion Calibration, intelligent feedback suppression, Bluetooth audio streaming, and D-Remote app control

Yamaha DXR10MKIII Description

The Yamaha DXR10MKIII is the most compact model in the DXR mk3 series, offering a strong balance of portability, output, and control. It uses a 10-inch low-frequency driver and a 1.75-inch high-frequency compression driver in a 2-way bi-amped bass-reflex design, making it well suited for mobile DJs, live bands, venues, houses of worship, corporate AV, and fixed installations that need professional sound in a smaller footprint.

Yamaha equips the DXR10MKIII with a newly developed 2000W Class-D amplifier and 96 kHz internal DSP processing for high output and refined sonic performance. FIR-X tuning combines linear-phase FIR filtering with corrective EQ for smooth crossover performance and reduced phase distortion, while Drive Motion Calibration helps produce more linear and reliable low-frequency response. The result is a speaker that delivers clarity, precision, and controlled coverage across a wide frequency range.

The enclosure is made from lightweight, high-performance molded polypropylene and features a symmetrical design that supports flexible placement. A dual-angle pole socket allows either a 0-degree or -7-degree down tilt, and the cabinet can also be used as a floor monitor with a 55-degree monitor angle. Rigging points for eye bolts and compatibility with the optional UB-DXRDHR10A U-bracket expand installation options for permanent or semi-permanent setups.

For added flexibility, the speaker includes DSP modes for FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, and OFF, along with AUTO V/H POSITION for automatic mode adjustment based on speaker orientation. Bluetooth 5.0 audio streaming and compatibility with Yamaha’s D-Remote app for iOS and Android make the Yamaha DXR10MKIII especially useful for users who want quick wireless control of level, EQ, delay, crossover, feedback suppression, and scene recall.

DXR10MKIII Features

• 2-way, bi-amped powered loudspeaker with bass-reflex design
• 10-inch low-frequency driver with 2.5-inch voice coil
• 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
• 2000W peak Class-D amplifier
• 1000W RMS power output
• Maximum output level of 132 dB SPL
• FIR-X tuning with linear-phase FIR filter
• Drive Motion Calibration for more linear low-frequency reproduction
• 96 kHz internal DSP processing
• DSP modes: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
• AUTO V/H POSITION automatic mode setting via internal accelerometer
• Intelligent feedback suppressor with DYNAMIC and FIXED modes
• Bluetooth 5.0 audio streaming with SBC and AAC support
• D-Remote app control for iOS and Android devices
• Rear LCD panel and encoder for fast setup and parameter control
• Dual-angle pole sockets with 0-degree or -7-degree tilt
• Rigging points for eyebolt suspension
• Compatible with optional UB-DXRDHR10A U-bracket and SPCVR-DXR103 cover

DXR10MKIII Specifications

• Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
• Frequency Range (-10 dB): 53 Hz - 20 kHz
• Coverage: 90° H x 60° V
• Crossover: 1.8 kHz, FIR-X tuning
• Maximum Output Level: 132 dB SPL
• LF Driver: 10 in cone, 2.5 in voice coil
• HF Driver: 1.75 in diaphragm, 1 in throat compression driver
• Amplifier Class: Class-D
• Power Output (Peak): 2000W (LF: 1700W, HF: 300W)
• Power Output (RMS): 1000W (LF: 850W, HF: 150W)
• A/D D/A Conversion: 32-bit / 96 kHz sampling
• Cooling: Fan cooling, 5 speeds
• Power Consumption: 120W (1/8 power), 35W (idle)
• Power Requirements: 100V - 240V, 50/60 Hz
• Analog Input 1: Combo x1, 20 kΩ balanced / 10 kΩ unbalanced, max input +24 dBu
• Analog Input 2: Combo x1, 6 kΩ balanced / 3 kΩ unbalanced, max input +24 dBu line / -6 dBu mic
• Analog Outputs: OUTPUT1 XLR3-32 THRU; OUTPUT2 XLR3-32 THRU or DSP OUT
• Bluetooth: Version 5.0, A2DP, SBC/AAC, Class 1
• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Top x1
• Pole Socket: 35 mm x2, 0° or -7°
• Rigging: Top x2, Rear x1 for M8 x 15 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXRDHR10A
• Floor Monitor Angle: 55°
• Dimensions: 12.2 x 19.8 x 12.2 in (310 x 502 x 310 mm)
• Weight: 32.0 lb (14.5 kg)
• Optional Accessories: UB-DXRDHR10A U-bracket, SPCVR-DXR103 cover
