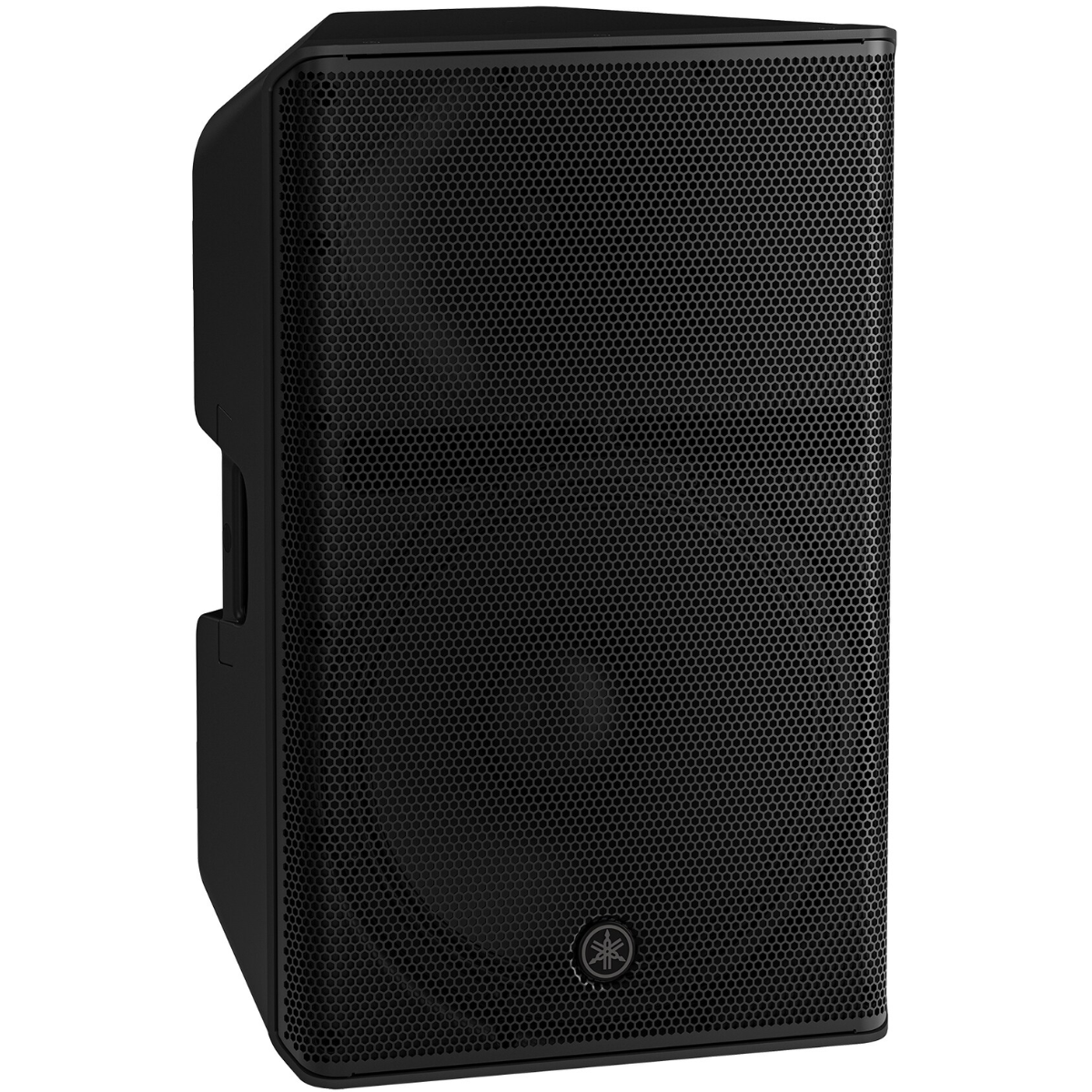

Yamaha DXR15 MK3 | 15in Powered Loudspeaker - 134dB SPL | High-Output PA Speaker with Deep Bass and DSP

Yamaha DXR15 MK3  (Yamaha DXR15MKIII)

Powered PA Speaker

Yamaha DXR15 MK3 is a 2-way, bi-amped powered loudspeaker designed for professional live sound, DJ applications, stage reinforcement, and installed audio systems. As the largest full-range model in the DXR mk3 lineup, it combines high output, extended low-frequency performance, and advanced DSP control for users who need authoritative sound and flexible deployment options.

Yamaha DXR15 MK3 Competitive Differences

• 15-inch woofer with 2000W Class-D amplification and up to 134 dB SPL for powerful full-range output with strong bass response
• Advanced DSP features including FIR-X tuning, Drive Motion Calibration, intelligent feedback suppression, Bluetooth audio streaming, and D-Remote app control

Yamaha DXR15 MK3 Description

The Yamaha DXR15 MK3 is built for users who want the deepest low-frequency extension in the DXR mk3 powered speaker family without stepping up to a separate subwoofer. Its 15-inch low-frequency driver and 1.75-inch high-frequency compression driver work together in a 2-way bi-amped bass-reflex design that makes it especially well suited for mobile DJs, live bands, event production, houses of worship, and venue applications where strong full-range performance is a priority.

Powered by a newly developed 2000W Class-D amplifier, the DXR15 MK3 delivers up to 134 dB SPL while maintaining clarity and precision. Yamaha’s FIR-X tuning combines linear-phase FIR filtering with corrective EQ to improve crossover behavior and minimize phase distortion, while Drive Motion Calibration helps the low-frequency driver respond more accurately for more linear bass reproduction. This gives the speaker solid low-end authority while preserving detail and articulation through the mids and highs.

The lightweight form-injection molded polypropylene enclosure is designed for durability, portability, and practical setup flexibility. Its symmetrical cabinet supports consistent monitor placement, while dual-angle pole sockets allow either straight or -7 degree down-tilted mounting for better audience coverage. Integrated rigging points and compatibility with the optional UB-DXR15A U-bracket make the cabinet suitable for suspended and installed applications as well.

For greater control, the speaker includes DSP modes for FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, and OFF, along with AUTO V/H POSITION for automatic mode switching based on cabinet orientation. Bluetooth 5.0 audio streaming and Yamaha’s D-Remote app support add wireless convenience, allowing the Yamaha DXR15 MK3 to be adjusted remotely from iOS and Android devices for level, EQ, delay, crossover, feedback suppression, scene recall, and more.

DXR15 MK3 Features

• 2-way, bi-amped powered loudspeaker with bass-reflex design
• 15-inch low-frequency driver with 3-inch voice coil
• 1.75-inch diaphragm high-frequency compression driver with 1-inch throat
• 2000W peak Class-D amplifier
• 1000W RMS power output
• Maximum output level of 134 dB SPL
• FIR-X tuning with linear-phase FIR filtering and corrective EQ
• Drive Motion Calibration for more linear and reliable low-frequency reproduction
• 96 kHz internal DSP processing
• DSP modes: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
• AUTO V/H POSITION automatic orientation-based mode setting
• Intelligent feedback suppressor with DYNAMIC and FIXED modes
• Bluetooth 5.0 audio streaming with SBC and AAC support
• D-Remote app control for iOS and Android devices
• Rear LCD panel and encoder for parameter access and preset recall
• Dual-angle pole sockets with 0-degree or -7-degree tilt
• Rigging points for eyebolt suspension
• Compatible with optional UB-DXR15A U-bracket and SPCVR-DXR153 cover

DXR15 MK3 Specifications

• Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
• Frequency Range (-10 dB): 46 Hz - 20 kHz
• Coverage: 90° H x 60° V
• Crossover: 1.8 kHz, FIR-X tuning
• Maximum Output Level: 134 dB SPL
• LF Driver: 15 in cone, 3 in voice coil
• HF Driver: 1.75 in diaphragm, 1 in throat compression driver
• Amplifier Class: Class-D
• Power Output (Peak): 2000W (LF: 1700W, HF: 300W)
• Power Output (RMS): 1000W (LF: 850W, HF: 150W)
• Cooling: Fan cooling, 5 speeds
• Power Consumption: 120W (1/8 power), 35W (idle)
• Power Requirements: 100V - 240V, 50/60 Hz
• A/D D/A Conversion: 32-bit / 96 kHz sampling
• Processors: HPF OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP Mode: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
• Analog Input 1: Combo x1, 20 kΩ balanced / 10 kΩ unbalanced, max input +24 dBu
• Analog Input 2: Combo x1, 6 kΩ balanced / 3 kΩ unbalanced, max input +24 dBu line / -6 dBu mic
• Analog Outputs: OUTPUT1 XLR3-32 THRU; OUTPUT2 XLR3-32 THRU or DSP OUT
• Bluetooth: Version 5.0, A2DP, SBC/AAC, Class 1
• Other Control: D-Remote app support for iOS and Android
• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Side x2
• Pole Socket: 35 mm x2, 0° or -7°
• Rigging: Top x2, Rear x1 for M10 x 18 mm eyebolts, Bottom x2, Side x2 for M8 x 25 mm UB-DXR15A
• Floor Monitor Angle: 52°
• Dimensions: 17.6 x 27.5 x 15.0 in (447 x 699 x 380 mm)
• Weight: 46.3 lb (21.0 kg)
• Optional Accessories: UB-DXR15A U-bracket, SPCVR-DXR153 cover
