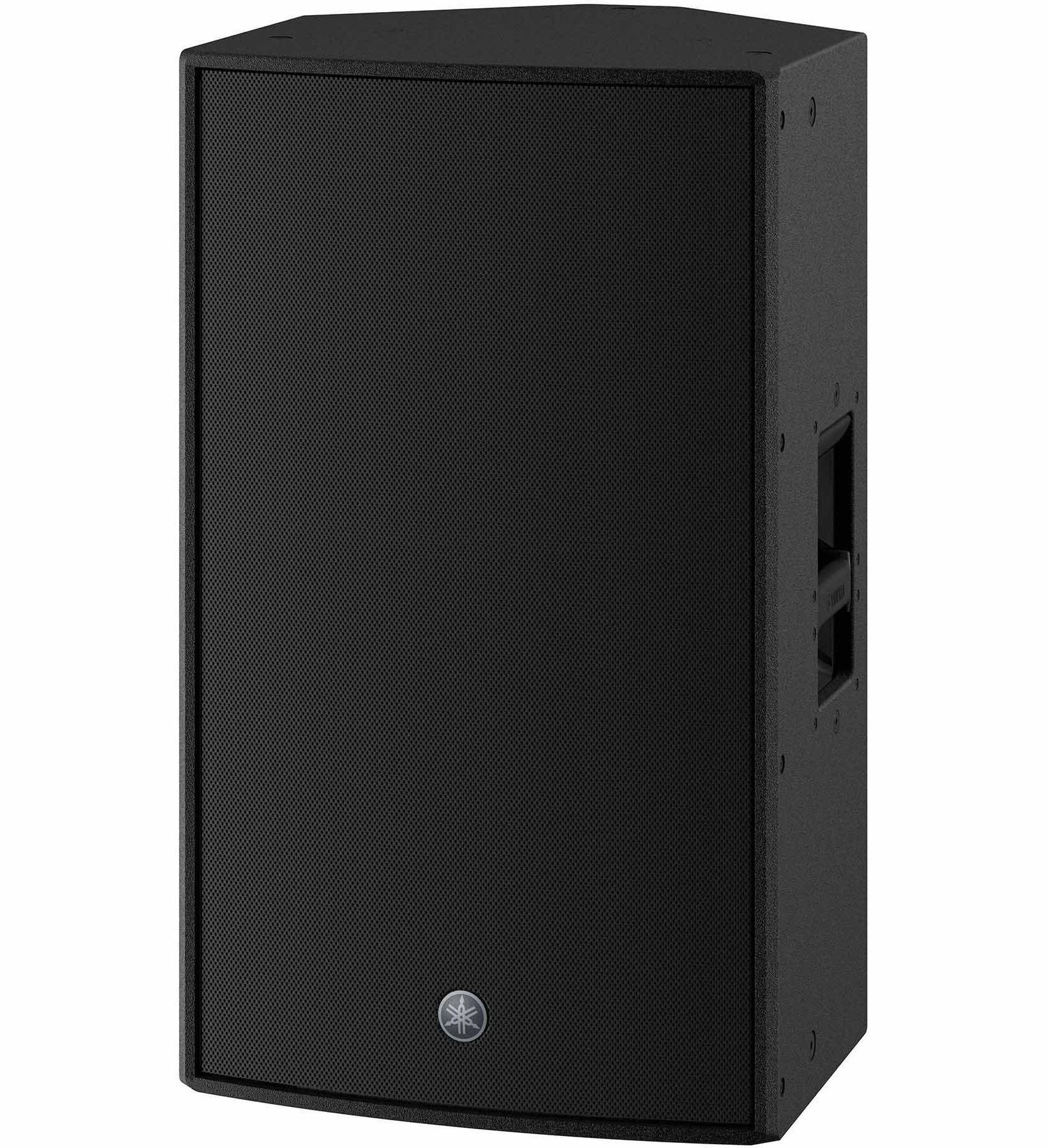

Yamaha DZR15-D | 15in - 139dB - Dante

Yamaha DZR-15 Dante  (Yamaha DZR Dante 15)

High-Performance 15" Powered Loudspeaker with Dante

The Yamaha DZR15-D is a premium 15" 2-way powered loudspeaker featuring Dante networking for seamless audio integration. With a maximum SPL of 139dB and a frequency range of 34Hz-20kHz, this speaker delivers unmatched clarity, deep bass, and powerful output. The 2000W Class-D amplifier, advanced DSP processing, and FIR-X tuning ensure professional-grade sound with minimal latency.

Yamaha DZR15-D Competitive Differences

• High Output Power: 2000W Class-D amplifier delivers 139dB SPL.
• Extended Low Frequency: 15" LF driver with a 34Hz-20kHz frequency response.
• Advanced DSP: 96kHz DSP with FIR filtering for high-resolution sound.
• Dante Integration: 2-in/2-out Dante I/O with sample rate conversion for 48kHz compatibility.
• Customizable DSP Controls: Onboard LCD display for PEQ, delay, and routing settings.
• Durable Yet Lightweight: Plywood cabinet with premium Polyurea coating.
• Flexible Mounting Options: Rotatable horn, M10 rigging points, and dual-angle pole socket.
• D-Contour & Protection Circuits: Intelligent multiband compressor and built-in safety measures.

Yamaha DZR15-D Description

The Yamaha DZR15-D is part of Yamaha’s most advanced series of professional powered loudspeakers, integrating cutting-edge DSP processing, high-power amplification, and network-ready Dante connectivity. Designed for superior sound reinforcement, the DZR15-D’s 15" LF driver and 2" HF compression driver provide deep, punchy bass and crystal-clear highs. Featuring 96kHz DSP and FIR filtering, the DZR15-D delivers precise phase alignment and optimal frequency response with minimal latency. The Dante-enabled connectivity ensures seamless audio networking with 2-in/2-out channels and sample rate conversion, making it compatible with both 48kHz and 96kHz systems. With a rugged yet lightweight plywood enclosure and a rotatable 90° x 50° horn, this speaker adapts to various applications, from front-of-house systems to stage monitoring. The D-Contour dynamic EQ optimizes performance at all output levels, while robust protection circuits safeguard long-term operation. An intuitive LCD display allows for easy DSP customization, ensuring precise control over EQ, delay, and routing settings.

DZR15-D Features

• 2-way, bi-amped powered loudspeaker with bass-reflex design
• 15" LF driver with neodymium magnet and 3" voice coil
• 2" HF compression driver with titanium diaphragm and neodymium magnet
• Maximum SPL: 139dB for powerful, distortion-free sound
• Extended frequency range: 34Hz – 20kHz (-10dB)
• 96kHz DSP processing with FIR filtering for ultra-low latency
• Dante I/O (2-in/2-out) with sample rate conversion for 48kHz and 96kHz compatibility
• Onboard LCD display for DSP adjustments (PEQ, delay, routing, and more)
• D-Contour intelligent dynamic EQ for optimized sound performance
• Rotatable horn (90° x 50°) for flexible dispersion control
• Floor monitor mode with 50° symmetrical angle
• Lightweight and durable plywood cabinet with Polyurea coating
• Handles: Two aluminum die-cast side handles for easy transportation
• Pole mount: 35mm socket with 0° or -7° tilt
• M10 rigging points (12 total) for secure installation
• Optional accessories: U-brackets (UB-DZR15H/V) and speaker cover (SPCVR-DZR15)

DZR15-D Specifications

• Speaker Type: 2-way, bi-amped powered speaker with bass-reflex
• Amplifier Class: Class-D
• Frequency Range (-10dB): 34Hz – 20kHz
• Maximum SPL: 139dB (measured peak at 1m)
• Coverage Angle: 90° x 50° (rotatable horn)
• Crossover Frequency: 1.7kHz (FIR-X tuning)
• Sampling Frequency: 96kHz with FIR filtering
• A/D D/A Converters: 96kHz
• Analog Inputs: 2 x Combo (XLR/TRS) with max input level of +24dBu
• Analog Outputs: 2 x XLR (CH1: THRU, CH2: THRU or DSP OUT)
• Digital I/O: Dante (etherCON CAT5e, 2-in/2-out, 44.1kHz - 96kHz)
• Power Output:
  • Dynamic: 2000W (LF: 1000W, HF: 1000W)
  • Burst: 1100W (LF: 1000W, HF: 100W)
  • Continuous: 950W (LF: 850W, HF: 100W)
• Cooling System: Variable-speed fan cooling
• Power Consumption: 45W (Idle), 150W (1/8 power)
• Rigging Points: 12 x M10
• Dimensions:
  • Width: 17.7" (450mm)
  • Height: 30.0" (761mm) (with rubber feet)
  • Depth: 18.1" (460mm)
• Weight: 55.6 lbs (25.2kg)
• Enclosure Material: Plywood with Polyurea coating
• Color Options: Black or White

What's in the Box

• Yamaha DZR15-D 15" Powered Loudspeaker
• Power Cable
• User Manual

The Yamaha DZR15-D is an exceptional choice for professionals seeking powerful, networked, high-fidelity sound reinforcement in a compact yet rugged enclosure.
