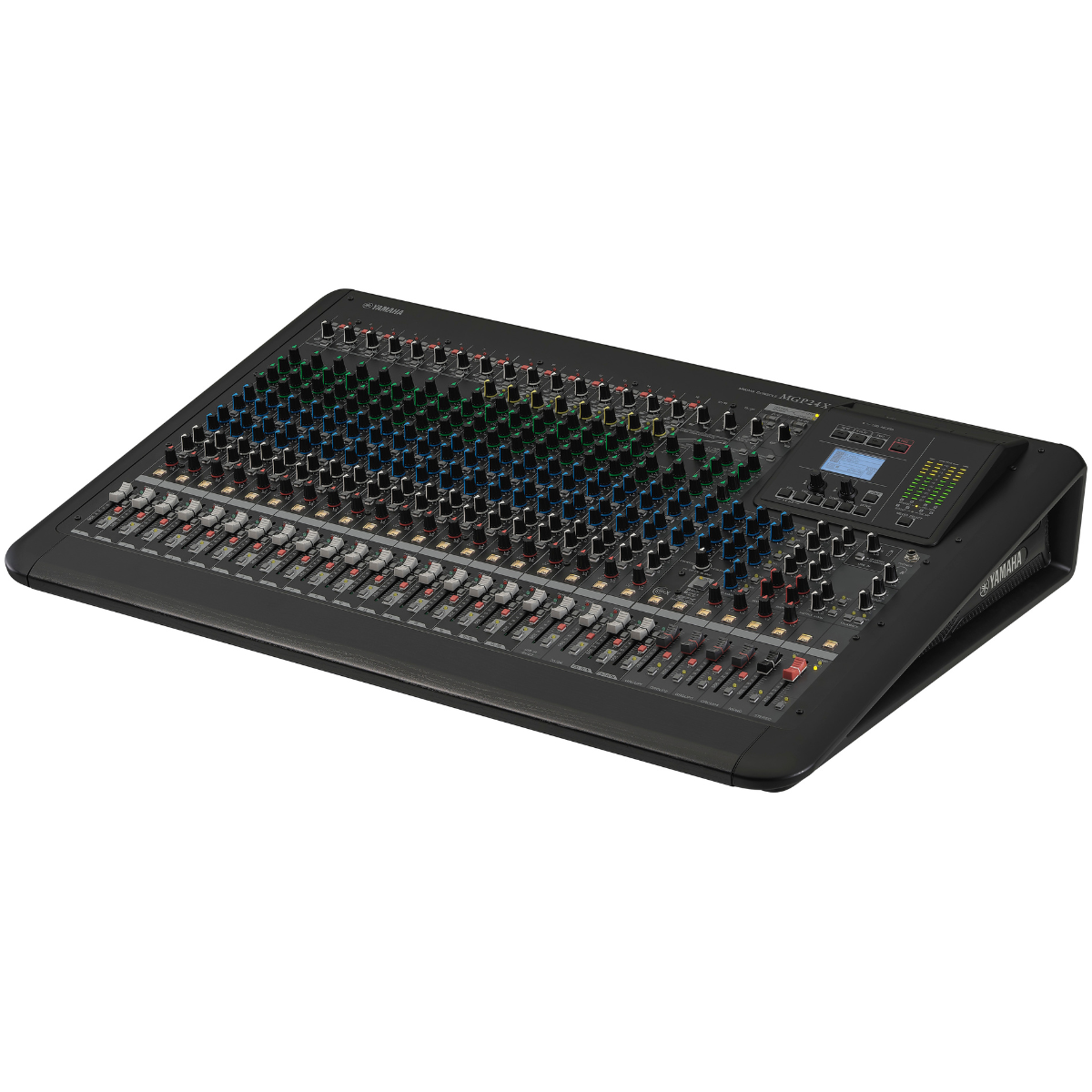

Yamaha MGP24XA
(Yamaha MGP24X-A)
24-Input Analog Mixing Console
The Yamaha MGP24X A combines the familiar hands-on workflow of an analog mixer with integrated digital effects, dynamics, and recording capabilities. Its 16 microphone inputs, four stereo input channels, flexible bus architecture, and USB device recorder make it a practical mixing solution for live performances, presentations, worship services, event production, and permanent installations.
Yamaha MGP24X A Competitive Differences
- 16 discrete Class-A D-PRE microphone preamps provide detailed, low-noise input amplification
- Eight channels of one-knob compression offer fast dynamics control on channels 9–16
- Independent REV-X and SPX effects processors can operate simultaneously
- X-pressive EQ provides musical analog-style tone shaping on the mono input channels
- Six AUX sends and two FX sends support monitor mixes, external processors, and flexible signal routing
- Built-in master compression and graphic EQ provide additional control over the stereo mix
- Direct USB device recording captures the stereo mix in WAV or MP3 format
- Two matrix outputs and a dedicated mono output support multi-zone and installed sound applications
Yamaha MGP24X A Description
The Yamaha MGP24X A provides 24 line inputs arranged as 16 mono input channels and four stereo input channels. Its 16 balanced XLR microphone inputs accommodate vocals, instruments, wireless systems, and other sources while providing independent 48V phantom power and high-pass filtering on each microphone channel.
Yamaha discrete Class-A D-PRE microphone preamps are designed to capture incoming signals with clarity and natural tonal detail. X-pressive EQ provides responsive frequency shaping, while eight one-knob compressors make it easier to control vocal and instrument dynamics without requiring complicated menus or external processors.
Two independent onboard effects engines expand the console’s sound-shaping capabilities. The REV-X processor supplies high-resolution reverb programs, while the SPX processor provides a selection of modulation, delay, reverb, and combination effects. Both processors can be used at the same time for more flexible live mixing.
Four group buses, six AUX sends, two matrix outputs, a mono output, master compression, graphic EQ, and direct USB recording and playback make the mixer suitable for live bands, DJs, corporate events, schools, houses of worship, performance venues, and installed audio systems.
MGP24X A Features
- 24 line inputs consisting of 16 mono and four stereo input channels
- 16 balanced XLR microphone inputs
- 16 discrete Class-A D-PRE microphone preamps
- Independent 48V phantom power on each microphone channel
- 100Hz high-pass filter on each microphone input channel
- X-pressive three-band EQ on mono input channels
- Eight one-knob compressors on channels 9–16
- Four group buses plus stereo bus
- Six AUX sends and two FX sends
- Two matrix outputs and one mono output
- REV-X processor with eight effect programs
- SPX processor with 16 multi-effect programs
- Standard and three-band multiband master compression
- Built-in graphic EQ for stereo output processing
- Stereo Hybrid Channels with Priority Ducker, Leveler, and Stereo Image processing
- Direct USB stereo recording in WAV or MP3 format
- USB playback of WAV, MP3, and AAC files
- Universal internal power supply
MGP24X A Specifications
- Product Type: Hybrid analog mixing console
- Mixing Channels: 24 line inputs consisting of 16 mono and four stereo channels
- Mic Inputs: 16 balanced XLR inputs
- Channel Compressors: 8 one-knob compressors on channels 9–16
- Group Buses: 4 group buses plus stereo bus
- Auxiliary Routing: 6 AUX sends plus 2 FX sends
- Matrix Outputs: 2
- Mono Outputs: 1
- Digital Effects: REV-X with 8 programs and SPX with 16 programs
- USB Recording Formats: WAV and MP3
- USB Playback Formats: WAV, MP3, and AAC
- Frequency Response: 20Hz–20kHz, +0.5/-1.0dB
- Total Harmonic Distortion: 0.02% from 20Hz–20kHz at +14dBu
- Equivalent Input Noise: -128dBu
- Crosstalk: -74dB at 1kHz
- Phantom Power: +48V per microphone channel
- Input High-Pass Filter: 100Hz, 12dB/octave
- Power Requirements: 100–240V AC, 50/60Hz
- Power Consumption: 76W maximum
- Dimensions: 32.2 x 6.7 x 22.2 in (819 x 169 x 565 mm)
- Net Weight: 34.2 lb (15.5 kg)
- Shipping Dimensions: 37.4 x 28.0 x 11.0 in (950 x 711 x 279 mm)
- Gross Weight: 50.7 lb (23 kg)
