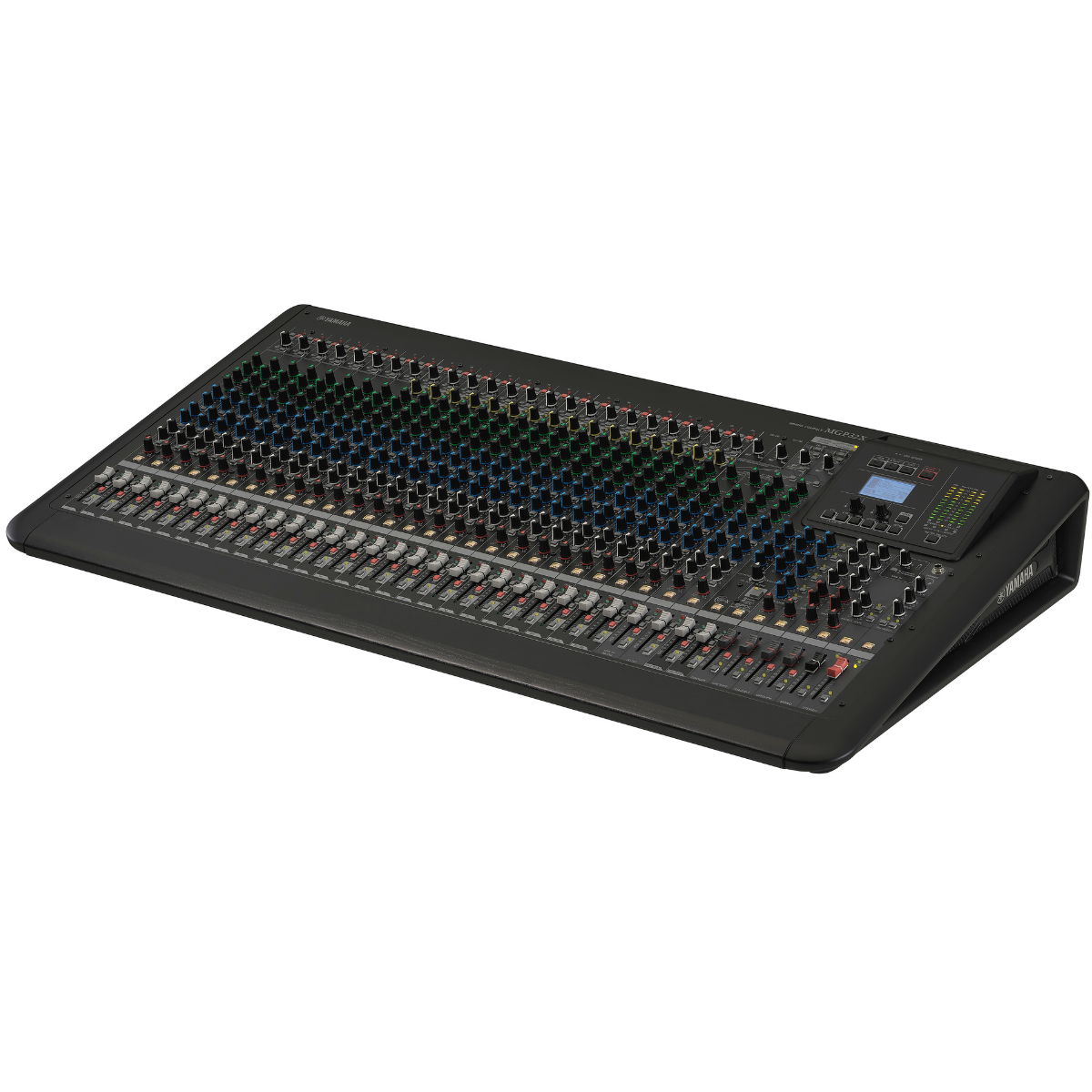

Yamaha MGP32XA
(Yamaha MGP32X-A)
32-Input Analog Mixing Console
The Yamaha MGP32X A combines hands-on analog operation with integrated digital processing for medium-size live productions and installed audio systems. It provides 24 microphone inputs, four stereo input channels, flexible group and auxiliary routing, dual effects processors, and direct USB recording and playback.
Yamaha MGP32X A Competitive Differences
- 24 discrete Class-A D-PRE microphone preamps provide detailed, low-noise input amplification
- 16 channels of one-knob compression provide fast dynamics control on channels 9–24
- X-pressive EQ on the mono channels delivers musical analog-style tone shaping
- Independent REV-X and SPX effects processors can operate simultaneously
- Built-in master compressor and graphic equalizer provide additional control over the stereo mix
- USB device recording captures the stereo mix directly in WAV or MP3 format
- Stereo Hybrid Channels include Priority Ducker and Leveler processing for speech and playback sources
- Two matrix outputs and a dedicated mono output provide flexible system routing
Yamaha MGP32X A Description
The Yamaha MGP32X A offers the immediate control of a traditional analog console with Yamaha digital processing integrated behind the mixing surface. Its 32-input capacity includes 24 mono microphone and line channels plus four stereo input channels, providing ample connectivity for vocals, instruments, wireless microphones, playback equipment, and other event sources.
Each microphone channel features a discrete Class-A D-PRE preamp, independently switchable 48V phantom power, and a 100Hz high-pass filter. X-pressive EQ supports musical frequency adjustment, while 16 one-knob compressors make it easier to control vocals and instruments without requiring complicated parameter adjustments or external dynamics processors.
The full-size control surface provides dedicated channel controls for efficient hands-on mixing. Four group buses, four AUX sends, two FX sends switchable to AUX 5 and AUX 6, two matrix outputs, and a dedicated mono output support monitor mixes, recording feeds, delay speakers, subwoofers, and multi-zone sound systems.
Dual onboard effects include Yamaha REV-X reverb with eight programs and an SPX multi-effects processor with 16 programs. USB device recording and playback, master compression, graphic EQ, Priority Ducker, and Leveler processing make the console well suited for live bands, corporate events, houses of worship, schools, party venues, and permanent sound installations.
MGP32X A Features
- 32 line inputs consisting of 24 mono and four stereo channels
- 24 balanced XLR microphone inputs
- 24 discrete Class-A D-PRE microphone preamps
- Independent 48V phantom power on each microphone channel
- 100Hz high-pass filter on each microphone input channel
- X-pressive three-band EQ on mono input channels
- 16 one-knob compressors on channels 9–24
- Four group buses plus stereo bus
- Four AUX sends plus two FX sends switchable to AUX 5 and AUX 6
- Two matrix outputs
- Dedicated mono output
- REV-X processor with eight reverb programs
- SPX processor with 16 multi-effects programs
- Built-in standard and multiband master compression
- Built-in graphic equalizer for stereo output processing
- Stereo Hybrid Channels with Priority Ducker and Leveler functions
- USB device recording in WAV or MP3 format
- USB device playback of WAV, MP3, and AAC files
- Universal internal power supply
MGP32X A Specifications
- Product Type: Hybrid analog mixing console
- Mixing Channels: 32 line inputs consisting of 24 mono and four stereo channels
- Mic Inputs: 24
- Channel Compressors: 16 one-knob compressors on channels 9–24
- Group Buses: 4 group buses plus stereo bus
- Auxiliary Routing: 4 AUX sends plus 2 FX sends switchable to AUX 5 and AUX 6
- Matrix Outputs: 2
- Mono Outputs: 1
- Digital Effects: REV-X with 8 programs and SPX with 16 programs
- USB Recording Formats: WAV and MP3
- USB Playback Formats: WAV, MP3, and AAC
- Frequency Response: 20Hz–20kHz, +0.5/-1.0dB
- Total Harmonic Distortion: 0.02% from 20Hz–20kHz at +14dBu
- Equivalent Input Noise: -128dBu
- Residual Output Noise: -92dBu
- Crosstalk: -74dB at 1kHz
- Phantom Power: +48V per microphone channel
- Input High-Pass Filter: 100Hz, 12dB/octave
- Power Requirements: 100–240V AC, 50/60Hz
- Power Consumption: 86W maximum
- Dimensions: 40.4 x 6.7 x 22.2 in (1027 x 169 x 565 mm)
- Net Weight: 41.9 lb (19 kg)
- Shipping Dimensions: 45.7 x 28.0 x 11.0 in (1161 x 711 x 279 mm)
- Gross Weight: 59.5 lb (27 kg)
