YAMAHA TIO1608-D2  (Yamaha 16x8 Dante-equipped 96kHz I/O Rack)

High-Performance Dante Stagebox for Live Sound and Installations

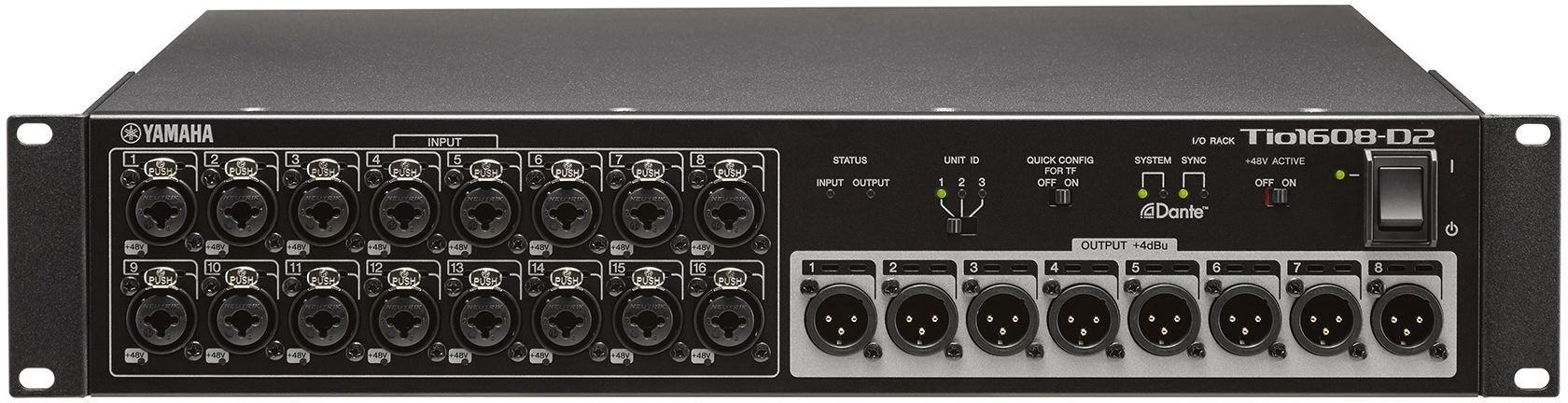

The Yamaha Tio1608-D2 is a 2U rackmount Dante-equipped I/O interface designed for seamless integration with Yamaha TF Series, DM3, and other Dante-compatible systems. With 16 combo mic/line inputs and 8 balanced XLR outputs, it provides high-quality, low-latency audio over a single CAT5e cable, making it a compact and efficient solution for both live and installed sound environments.

Yamaha Tio1608-D2 Competitive Differences

• Equipped with 16 mic/line combo inputs and 8 line-level XLR outputs
• Compatible with Yamaha TF Series and DM3 consoles via Dante
• Supports remote gain control and scene recall using Yamaha consoles
• Recallable D-PRE microphone preamps deliver natural and musical sound
• 96kHz sampling support for high-resolution audio environments
• Plug-and-play Quick Config and Auto Config setup modes
• Dual etherCON Dante ports (Primary/Secondary) for daisy-chaining or redundancy
• Low latency signal path: less than 1.3ms at 96kHz
• Supports up to 3 units on TF Series via NY64-D card or 1 unit on DM3
• Flexible patching via Dante Controller and R Remote software

Yamaha Tio1608-D2 Description

The Yamaha Tio1608-D2 is a rugged, high-quality Dante stagebox that significantly simplifies the setup of I/O systems for live events and permanent installations. This unit provides 16 analog inputs using combo XLR/TRS jacks and 8 analog XLR outputs, making it ideal for mics, instruments, and playback devices. Dante networking allows for high-resolution, low-jitter digital audio transmission with minimal setup. Whether you're integrating it with the TF Series (via optional NY64-D card) or a DM3 console, the Tio1608-D2 supports remote control of preamps and automatic configuration of network settings for fast deployment. Dual etherCON ports support both redundancy and daisy-chaining, offering maximum flexibility. With Yamaha’s renowned D-PRE preamplifiers, users get clean, musical sound with high headroom and minimal noise. The unit’s build quality and internal layout were engineered for performance and reliability, ensuring consistent audio quality in demanding environments.

Tio1608-D2 Features

• 16 analog mic/line combo inputs with phantom power (+48V)
• 8 analog XLR line outputs
• Recallable D-PRE microphone preamplifiers
• Dante audio network support (Primary/Secondary ports)
• Supports 44.1kHz, 48kHz, 88.2kHz, and 96kHz sampling rates
• Quick Config and Auto Config setup modes for TF Series and DM3
• Compatible with Dante Controller and R Remote software
• StageMix App support for remote control via wireless devices
• Supports daisy-chaining of up to 3 Tio1608-D2 units (TF Series)
• Plug & Play Cat5e network connection
• Internal universal power supply (100–240V, 50/60Hz)

Tio1608-D2 Specifications

• Sampling Frequency: 44.1kHz / 48kHz / 88.2kHz / 96kHz
• Signal Delay: Less than 1.3ms (at 96kHz, one-way)
• Total Harmonic Distortion: Less than 0.2% at +66dB gain; less than 0.05% at -6dB gain
• Frequency Response: +0.5 / -1.5 dB (20Hz–20kHz)
• Dynamic Range: Up to 112dB (DA Converter, 48kHz)
• Equivalent Input Noise: -128 dBu (Gain +66 dB)
• Residual Output Noise: -86 dBu (96kHz)
• Crosstalk: -100 dB between adjacent channels
• Inputs: 16 x Combo XLR/TRS jacks (balanced)
• Outputs: 8 x XLR line outputs (balanced)
• Digital I/O: Dante, 24-bit/32-bit, 1000Base-T
• Power Requirements: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• Heat Dissipation: 43.5 kcal/h
• Dimensions: 18.9" (W) x 3.5" (H) x 14.4" (D)
• Net Weight: 12.6 lbs (5.7 kg)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• UPC: 889025153454

What's In The Box

• Yamaha Tio1608-D2 Audio I/O Rack
• Power Cord (2.5m)
• Owner’s Manual
• Rubber stoppers (4)
