ACCU Cable AC5PDMX25 25ft 5-Pin DMX

Standard Discount:
$32.99
Available - Ships in 1-2 days [?]
Warranty Options
Condition
This item is brand new, factory sealed. It includes the full factory warranty and all applicable factory rebates.
Description
Reviews
Questions
Financing  (3)

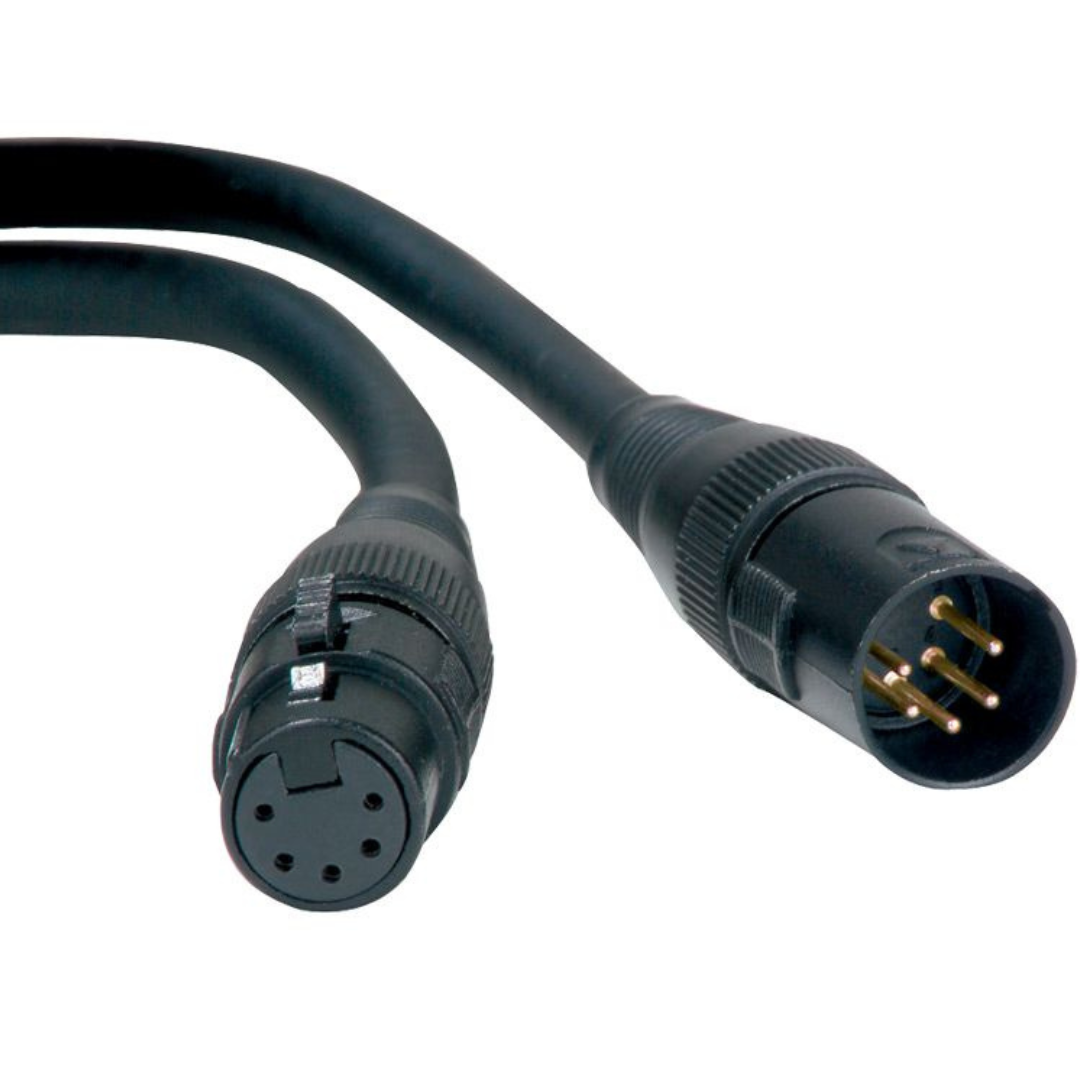

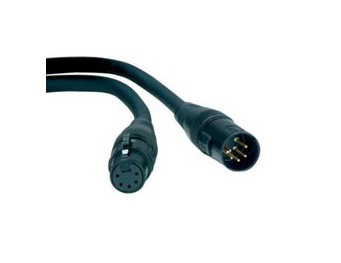

ACCU Cable AC5PDMX25 (American DJ AC5PDMX25)
25ft 5 Pin DMX Cable
DMX Cables  - ACCU Cables

High Quallty DMX 5 Pin Male XLR to 5 Pin Female XLR Turnaround, Description: 22 AWG stranded tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

•5 Pin DMX Cables

Conductor:

Number of Pairs: 2
Total Number of Conductors: 4
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: 0.0354"
Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene
Lay Length:

Lay Length: 1.1"
Direction: Left Hand Lay
Twists: 10.9 per foot
Inner Jacket:

Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: 0.055"
Pair Color Code: Green/Black/Red/White
Outer Shield:

Outer Shield Trade Name: Duofoil®
Outer Shield Type: Tape/Braid
Outer Shield Material:

Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket:

Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter: Overall Nominal Diameter: 0.295"

Mechanical Characteristics:

Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 50 lbs/1000 ft
Minimum Bend Radius (Install): 3.5"
Maximum Recommended Pull Tension: 22 lbs.
Electrical Characteristics:

Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 76%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C

• AC5PDMX5
• AC5PDMX10
• AC5PDMX25
• AC5PDMX50
• AC5PDMX100
