Chamsys ChamQuickQ20  (ChamSys QucikQ20)

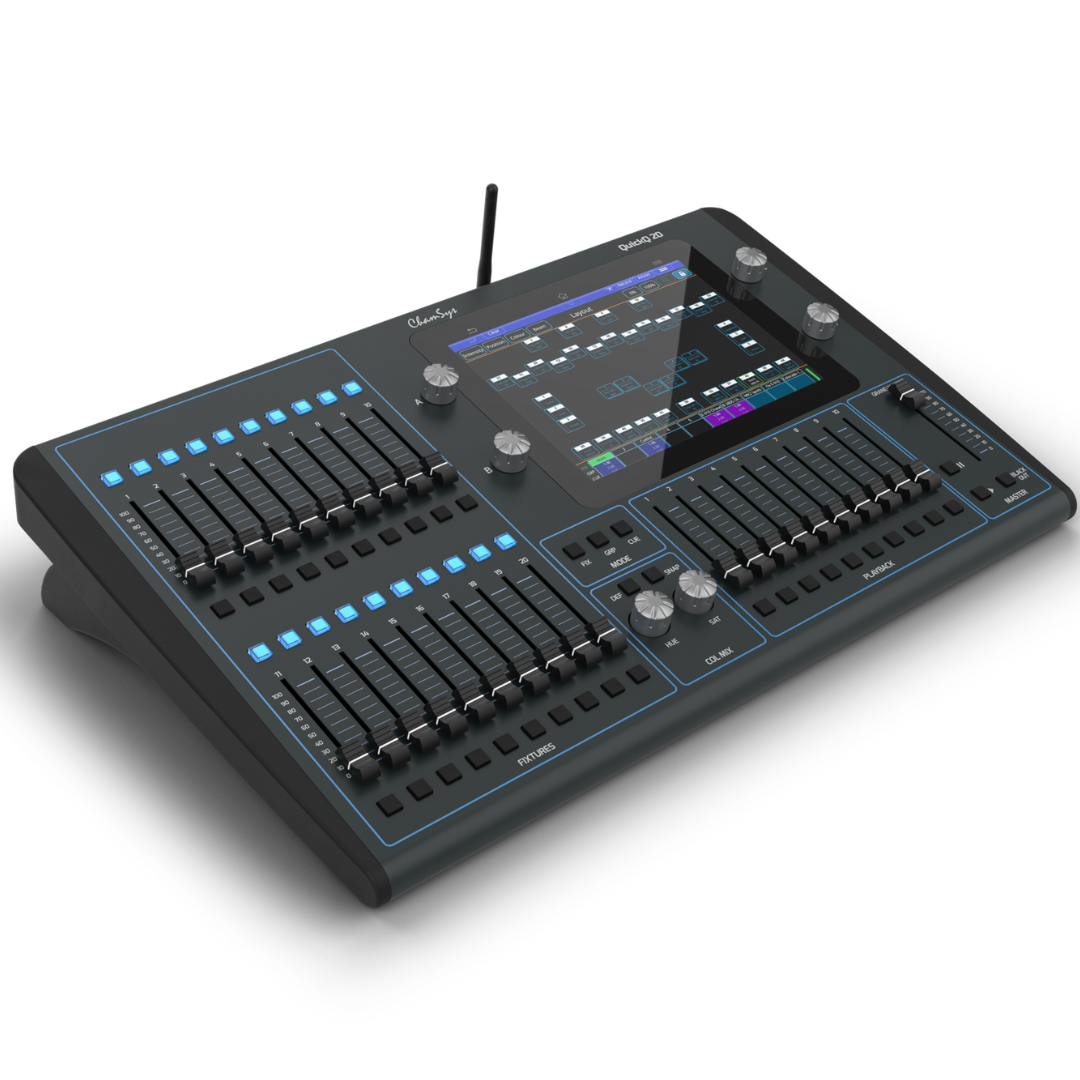

The ChamSys QuickQ 20 is designed with a quick and easy user interface, 9.7” touch screen, and a comprehensive feature-set that bring simplicity and power to the small console market. Built-in Wi-Fi allows for remote control from a tablet or phone, which can also serve as a 2nd external monitor! This console is ideal for students, volunteers, or part-time operators, and are comfortable to use even by professionals on small-scale shows.

Features:

Simple user interface
Easy navigation
Large touch screen with easy to understand and intuitive graphical interface
User prompts through setup, programming and operation
No limit on number of fixtures, only by number of universes supported
Modeled on smart phone icon interface and gesture support
Intuitive interface allowing simple control of all fixture attributes
Supports pinching for zooming and scrolling
The remote app is identical to that on the console display so that you can easily swap between the two
Dedicated Grand Master fader
Dedicated Cue Stack Control section
10 multi-purpose Cue Stack/Chase faders
Playbacks compatible with and aid progression towards MagicQ
Fader for Intensity Control
Flash button
Fixture, Group and Cue modes
RGB LED shows current mode/state
20 fixture faders
QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
A dedicated “colour control area” with Hue and Saturation encoders, and a pair of additional buttons for colour control
Select from in-built palettes and gel libraries using the touch screen
2 USB ports for loading and saving shows, and for optional keyboard and mouse audio input and output
In-built WIFI port for simple connection of tablets and smart phones
Offline editor available for both Windows and Mac
Easy upgrades
Includes MagicVis visualiser
Replicates entire QuickQ console software excluding output

Specifications:

Touch Screen: 9.7"
Universes Supported: 2
DMX Outputs 5-Pin XLR: 2
Fixtures Supported: 1024
Fixture Faders: 20
Bump Buttons: Y
Dedicated Hue/Saturation Encoders: Y
Attribute Encoders: 4
Master Faders: 10 Multiple Function Playbacks
Cue Stacks: Multiple
Dedicated Home Button: Y
USB: 2
Network: Y
External Monitor: 1920 x 1080 HDMI
Audio In/Out: Y
sACN: Y
ArtNet: Y
Pathport: Y
OSC: Y
MIDI: Y
MIDI Timecode: Y
Supports Moving Lights: LEDs, Dimmers & Moving Lights
Size (WDH mm): 525 x 350 x 106
Weight: 5.2 kg
