JTS RU8012DB/ RU850LTB | Dual Belt Pack Wireless System

JTS Professional RU8012DB/RU850LTB Lavalier Wireless System  (JTS RU-8012DB/RU-850LTB Wireless Mic System)

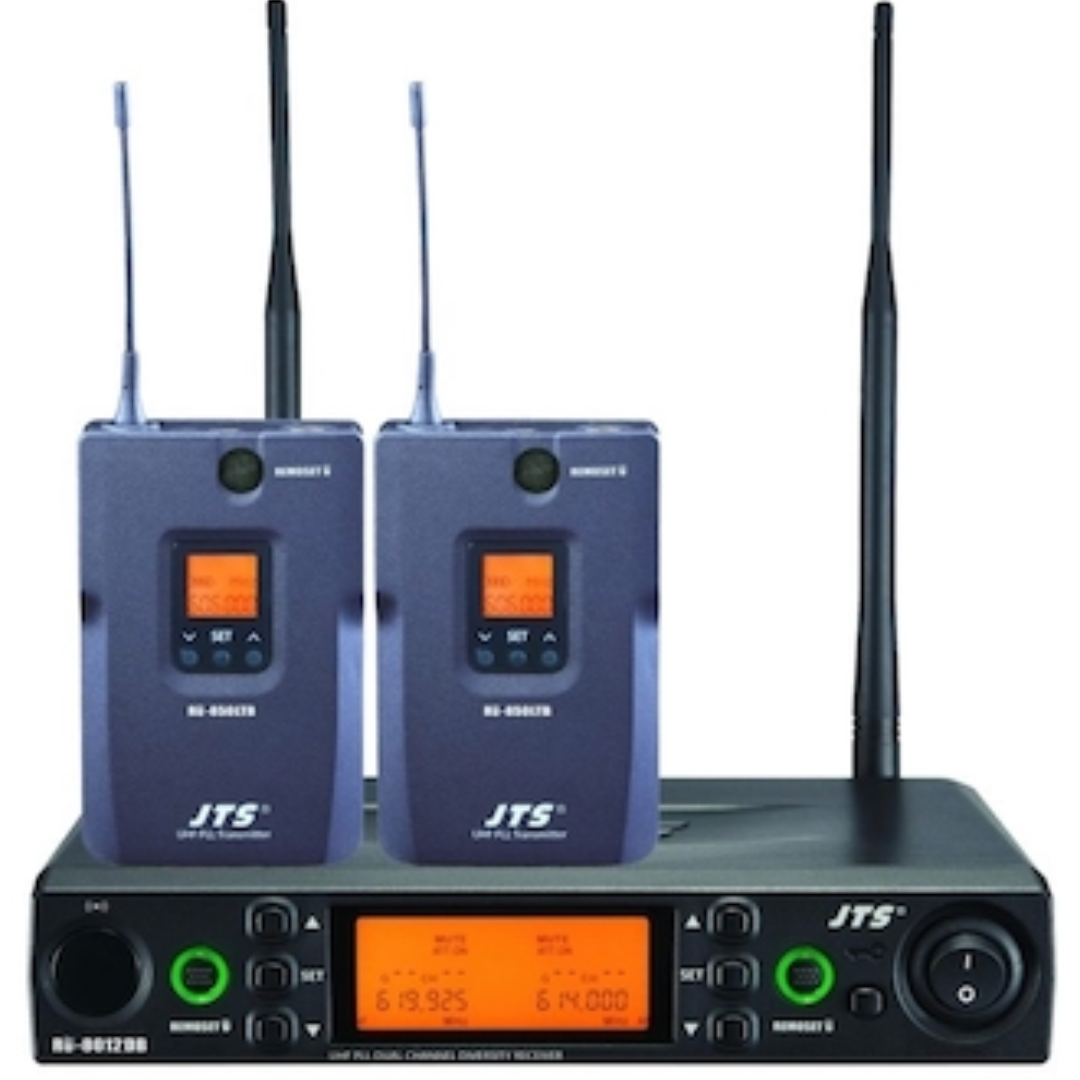

JTS RU-8012DB/RU-850LTB Wireless Dual Bodypack Microphone System

Includes:
(1) JTS RU-8012DB
(2) JTS RU-850LTB

Specifications:

RU-8012DB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 506-542 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter,
RF Meter, Frequency Scan, Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuation(XLR), Frequency Scan(ON/OFF)
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)
Notes Actual product specifications may vary depending on model and region

RU-850LTB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 506-542 MHz
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LCD+LED
Input Connector 4P Mini XR
Controls Power, Mute, Group, Channel,
Frequency, Gain Adjust, Auto Power Off, Key
Lock
Battery UM3, AA x2
