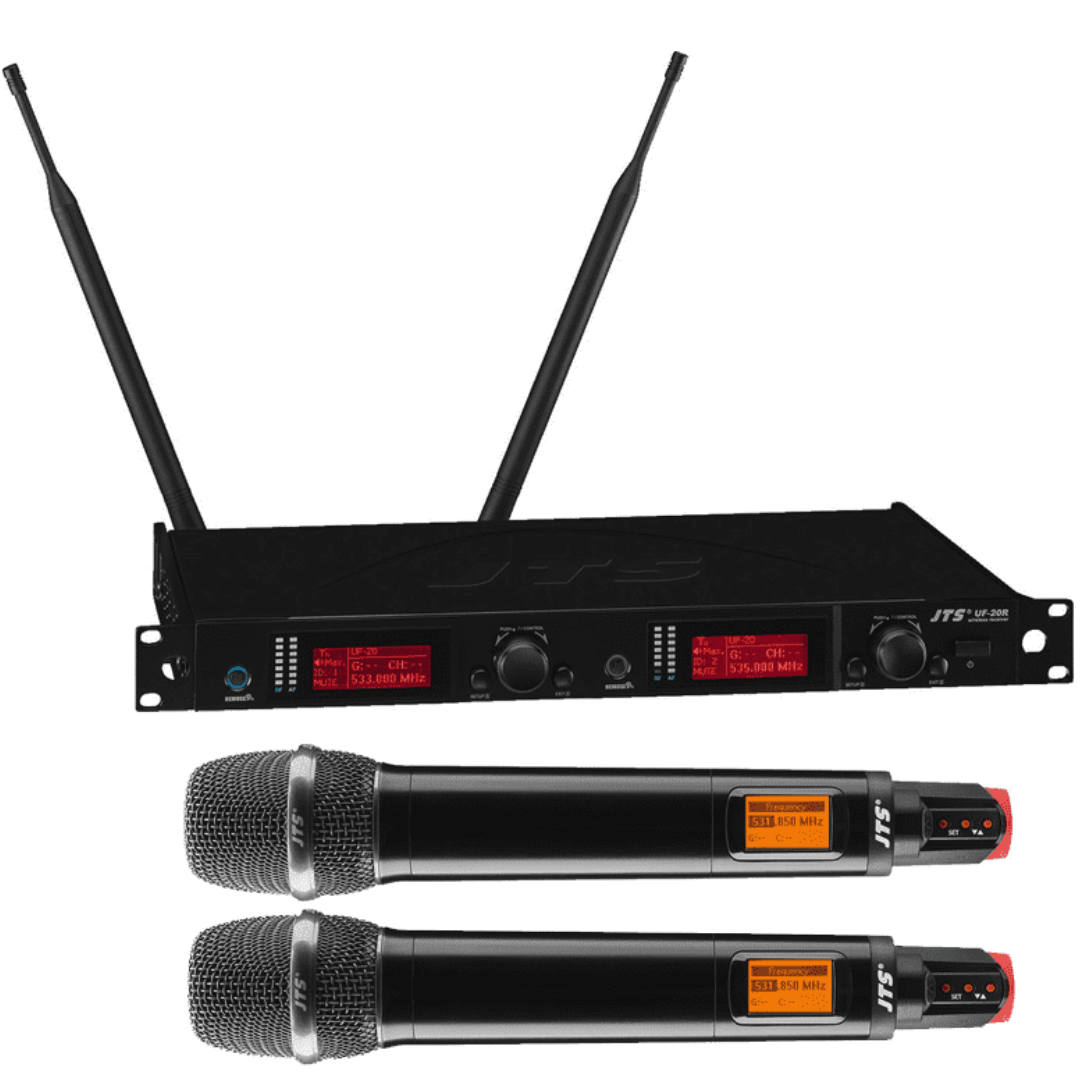

JTS UF-20R/JSS-20 | Dual Handheld Wireless Mic System

JTS Professional jf20r-jss20 - dual channel handheld mic system  (JTS UF20R-JSS20)

UF-20R/JSS-20 System
Professional Dual Channel Wideband True Diversity System

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a
button
* JTS LCX circuit design technology minimizes companding noise
NEWEST FEATURE:
* The is now not only sends the frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer
* Power / Antenna cascading output provided.

Specifications:

UF-20R
Frequency Preparation
PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 530-605 MHz
Channel Dual
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 2 XLR Balanced Socket
2 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 480mm (W) 45Mmm (H) 260mm (D)
Notes Actual product specifications may vary depending on model and region.

2x JSS-20
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 530-605 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.
