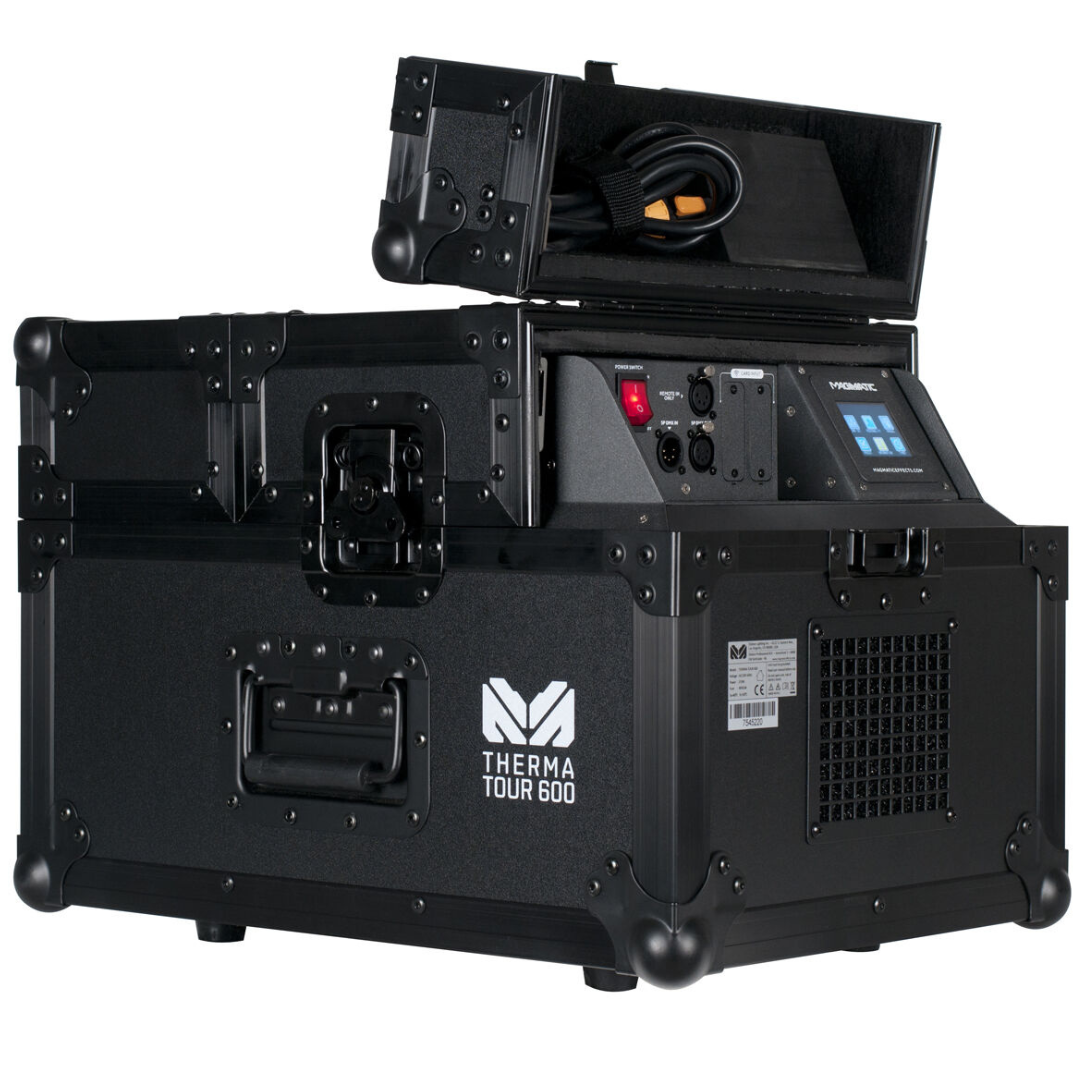

Magmatic Therma Tour 600

Magmetic TST613  (Magmatic TST-613)

The Therma Tour 600 is a premium oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 350W Therma Tour 600 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual touch screen control.

Features:
- 350 watt low power consumption
- Over 35 hours of run time
- Haze lasting up to 3 hours after machine is off
- Rugged mobile road case design
- Soundproof insulation for indoor use

Specifications:
PERFORMANCE
Rated Power: 350W
Max Output: 3,800 CFM* (cu ft/min.) ()
Ready Time: Instant
Fluid Capacity: 0.66043 Gallons (2.5 liters)
Fluid Consumption: 0.033814 oz/min (1.0 ml/min)
*approximate

COMPATIBLE FLUID
ATMOSITY

CONSTRUCTION
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL
3 DMX Channel Modes (1 / 3)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 19.57 in. (497mm)
Width: 14.06 in. (357mm)
Height: 13.31 in. (338mm)
Weight: 66 lbs. (30kg)

ELECTRICAL
AC 100-120V - 50/60Hz
10A (NFB)
Max Power Consumption: 370W

THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)

APPROVALS / RATINGS
CE | cETLus (pending) | IP20
