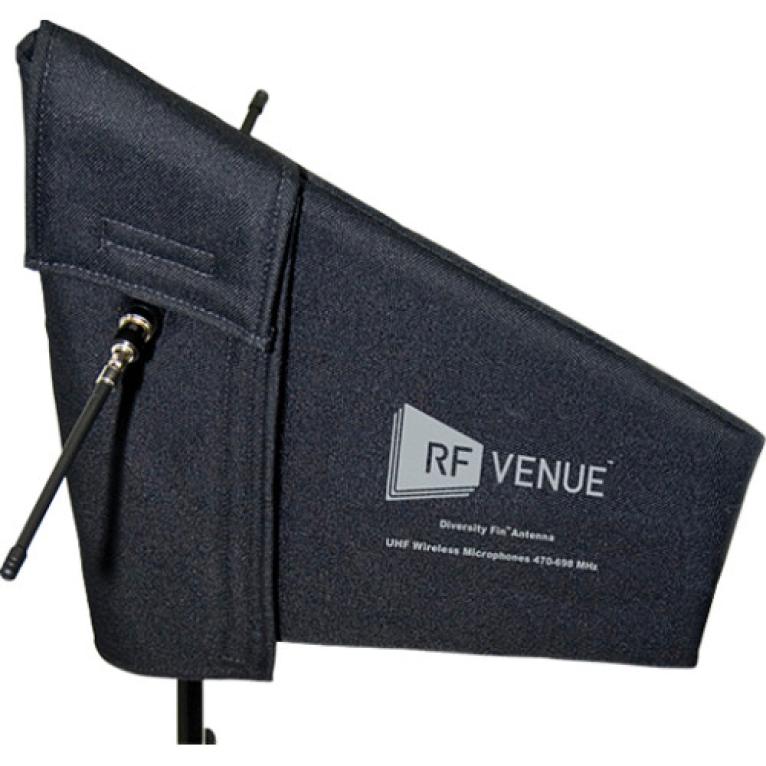

RF Venue DFIN  (Audio-Technica D-FIN)

The Diversity Fin Antenna is the flagship RF Venue wireless microphone antenna; it's portable, simple to operate, and capable of pushing diversity microphone systems to the limits of their performance while excelling in tough RF environments.

The Diversity Fin reduces microphone drop-outs and interference in a novel and remarkably simple way; instead of using two antennas of the same orientation spaced a distance apart, as with standard whip or paired LPDA "shark fin" antennas, it includes one element that captures vertically polarized waves, and another that captures horizontally polarized waves. To use, just connect both the A and B ports on any antenna distributor or wireless microphone receiver and point toward the stage. The result is an antenna that dramatically improves diversity system performance in the space of only one LPDA.

Features:
Frequency Range: 470 - 698 MHz
Standard version includes black water resistant padded cover
Black paint versions available with L-bracket and easy hardware for wall mounting
Mounting block accepts 5/8-27, 1/4-20, AND 3/8-16 stands

Specifications:

Operating frequency: 468-740 MHz
Bandwidth: 272 MHz
Average return loss: -9.4 dBm
Impedance: 50 ohms
Pattern type: Dual Omni-Unidirectional

LPDA:
Beam width: 140º Azimuth
F/B Ratio: 8 dB
F/S Ratio: 5 dB
Gain: 5 dBd
Polarization: Vertical

Dipole:
Beam width: 100º Azimuth
F/B Ratio: 5 dB
F/S Ratio: 13 dB
Gain: 1.8 dBd
Polarization: Horizontal

Dimensions: 12" L x 15" H (300 x 370 mm)
Weight: 1 lb (454 g)
Mounting Block: 1/4-20, 3/18-16, 5/8-27 ??
Operating temperature: -10 - 130 F (-23 - 54 C)
Color: Black
Connector: BNC female (2)
