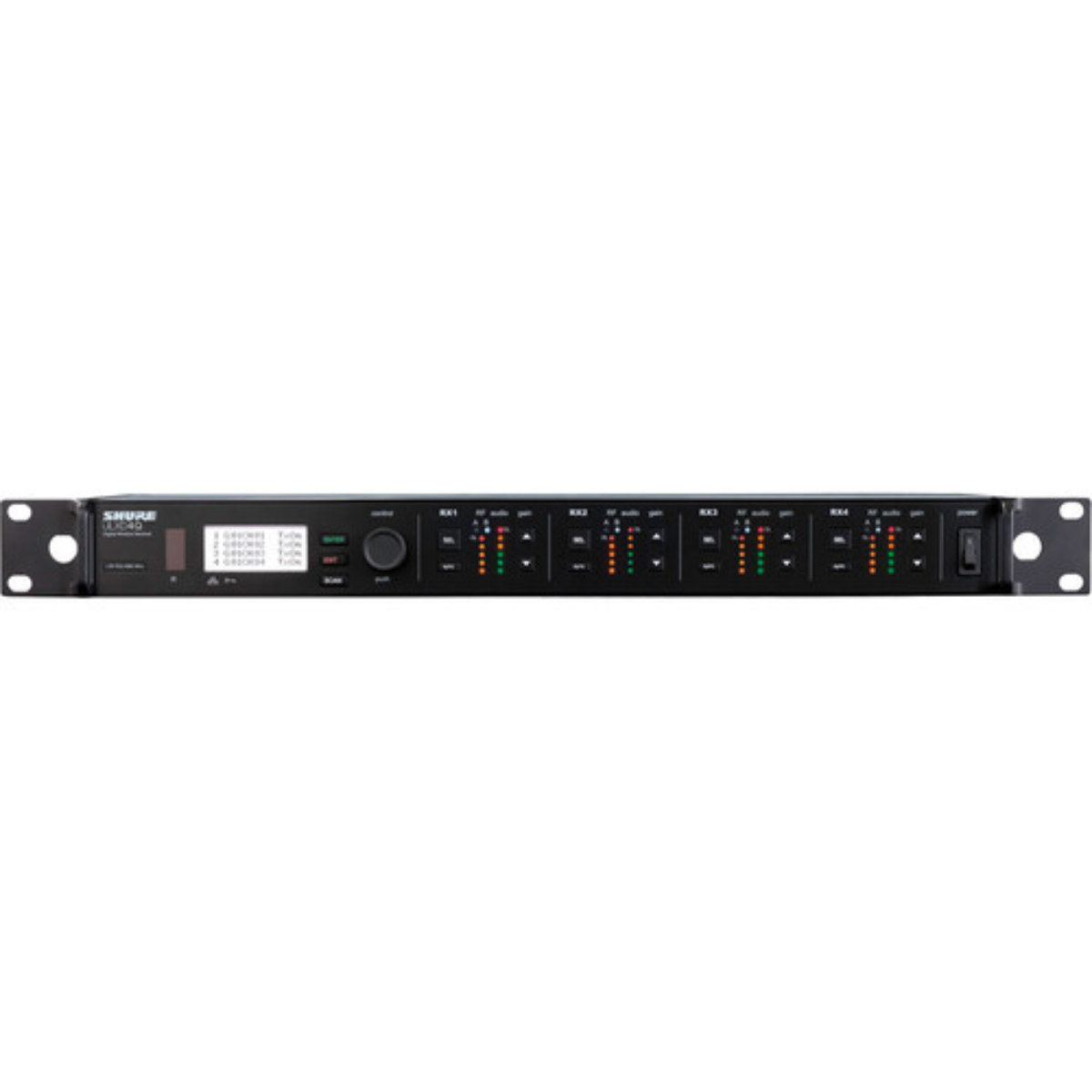

Shure ULXD4Q Quad-Channel Digital Wireless Receiver
Band G50: 470 to 534 MHz
The Shure ULXD4Q Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup features in a space-efficient single rack unit. Rugged yet lightweight and compact, the 1RU all-metal chassis houses four independent receivers, each with its own audio and RF meters, gain control, and XLR outputs that can be either direct or summed for flexible signal routing.
At only 7.6 pounds, the ULXD4Q offers space savings in the rack and cost savings when shipping. With RF cascade and two Ethernet ports, units can easily share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante™ digital networking allows multiple channels of audio over a single Ethernet cable.
With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4Q is truly generations ahead of any other available receiver in its class, and brings a new level of performance and scale to professional sound reinforcement.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
Four receivers in a rugged 1RU metal chassis with internal power supply
Individual gain controls, LED meters, and XLR outputs for each channel
Up to 64 MHz tuning range (region dependent)
Digital predictive switching diversity
High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
RF cascade ports allow distribution of RF signal to another unit
Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
AES 256-bit encryption-enabled for secure transmission
Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel’s gain adjustment to reach the desired mix.
Dante™ digital networked audio over Ethernet
Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
Interference detection and alerts provided on both the receiver and WWB6
Up to 60 dB independently adjustable gain for each channel
Wireless Workbench® 6 (WWB6) software integration for advanced coordination, monitoring, and control
AMX/Crestron® control
Compatible with the AXT600 Axient® Spectrum Manager
Yamaha® device ID allows simplified channel patching on CL consoles
Intuitive front panel LCD menu and controls with lockout feature
Upgraded LCD with adjustable contrast and brightness
Audio and RF LED meters with peak indicator
Switchable mic/line output level
Remoteable ½ wave antennas
Specifications:
Band G50: 470 to 534 MHz
RF Input Spurious Rejection: > 80 dB, Typical
Connector Type: BNC
Impedance: 50 Ohms
Bias Voltage: 12 to 13 V DC, 150 mA Maximum, Per Antenna
Cascade Output Connector Type: BNC (For Connecting of One Additional Receiver in the Same Band)
Configuration: Unbalanced, Passive
Impedance: 50 Ohms
Insertion Loss: 0 dB
Audio Output Gain Adjustment Range: -18 to 42 dB (in 1 dB Steps, Plus Mute Setting)
4x Balanced XLR Outputs
Impedance: 100 Ohms
Line Setting: 18 dBV
Mic Setting: -12 dBV
Mic/Line Switch: 30 dB Pad
Phantom Power Protection: Yes
Network Network Interface: Dual Port Ethernet 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability: DHCP or Manual IP Address
Maximum Cable Length: 328' (100 m)
Power Requirement 100 to 240 V AC, 50 to 60 Hz, 0.32 A Maximum
Dimensions (H x W x D) 1.7 x 18.9 x 10.7" (44 x 482 x 274 mm)
Weight 7.6 lb (3.45 kg)
