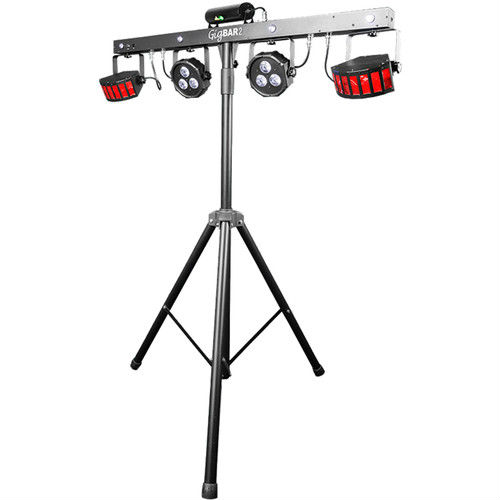

Chauvet DJ Gig Bar 2

Product Description:

Experience the next level of lighting performance with the all-in-one lighting system Chauvet DJ GigBar 2.

its impressive light output and advanced LED technology, it delivers vibrant colors, intense beams, and captivating effects that will transform any venue.

Equipped with a wireless footswitch, the GigBar 2 puts you in complete control of your lighting show. Seamlessly switch between different lighting modes, activate dynamic strobe effects, or unleash synchronized patterns with just a tap of your foot.

The GigBar 2 is built to last, with rugged construction and durable components that can withstand the demands of touring and mobile entertainment. Its compact size and lightweight design make it ideal for mobile DJs, bands, and event organizers who need a portable and versatile lighting solution.


  • 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar

  • Added UV in pars and strobes for increased color mixing and effects

  • Cover any room or stage with 4 individually adjustable and interchangeable heads

  • Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags

  • Ready for every application using the included mounting brackets to attach to truss

  • 4 high-power, LED strobe lights create exciting chase and slow motion effects

  • Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions.

  • Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show

  • Easily control from the display, IRC, wireless foot switch or DMX to take your gig to a higher level

  • Master/slave multiple units under the control of a single IRC or wireless foot switch

  • Save time running cables and extension cords by power linking multiple units


DMX Channels: 3, 11 or 23

DMX Connectors: 3-pin XLR

Light Source: (pars): 6 LEDs (Quad-color RGB+UV) 3.5 W (1.1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 1.8 W (600 mA), 50,000 hours life expectancy
(Derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode

Strobe Rate: (strobe): 0 to 18 Hz
Beam Angle: (pars): 13°
(strobe): 8°Field Angle: (pars): 24°
(strobe): 18
Coverage Angle: (laser): 93°
(Derby): 114°

Fits Tripod Size: 37.4 mm

Illuminance: (pars): 1,205 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone)

Power Linking: 8 units @ 120 V; 15 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 68 W, 1 A @ 120 V, 60 Hz
64 W, 0.5 A @ 230 V, 50 Hz

Weight: 14.4 pounds

Size: 1185 x 110 x 386.5 mm

Approvals: CE, FDA, FCC
Stand Height: 1.5 to 2.5 m
Tripod leg width: 1.2 m
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 30.5 m
Included Remote: IRC-6

Frequently Asked Questions:

What is a GigBAR?

A lighting system commonly used in entertainment and event production. It is a compact and all-in-one lighting solution that combines multiple lighting fixtures into a single unit.

A single bar-like fixture that integrates different lighting elements, such as LED wash lights, strobe lights, laser lights, and sometimes even a built-in derby effect or UV light. These fixtures are arranged in a linear configuration on the bar, offering a versatile and comprehensive lighting setup in a compact package.

Does the GigBAR 2 have Bluetooth?

No, the Chauvet DJ GigBAR 2 does not have Bluetooth connectivity.

What is included in the GigBar 2?

  • 2 RGB LED Rotating Derby Effects

  • 4 White/UV LED Strobes

  • 1 Red/Green Laser

  • 2 RGB+UV LED PAR Wash Lights

  • IRC-6 and Footswitch Wireless Remotes

  • Carrying Bags for Tripod and Fixtures

How do you sync 2 gigbar 2 systems together?

  1. Set one of the GigBAR 2 units as the Master. This will be the unit that controls the lighting effects of the other unit.

  2. On the Master unit, locate the "Master/Slave" or "Mode" button. Press and hold this button until the unit enters the Master/Slave mode. The LED indicators on the unit will typically indicate that it is in Master mode.

  3. On the second GigBAR 2 unit, set it as the Slave. This unit will follow the lighting effects controlled by the Master unit.

  4. On the Slave unit, locate the "Master/Slave" or "Mode" button. Press and hold this button until the unit enters the Slave mode. The LED indicators on the unit will typically indicate that it is in Slave mode.

  5. Ensure that both GigBAR 2 units are connected to power and turned on.

  6. The Slave unit should now receive control signals from the Master unit and synchronize its lighting effects accordingly.

Can the GigBAR lights be dimmed?

Yes! To dim the lights on the GigBAR system, you can use the built-in controls or a compatible DMX controller.

How tall is the gigbar 2?

It can reach a height of 1.2 ft. with just the lights and bar, and up to a staggering 8.2 ft. when connected to a stand.

What is the difference between Gigbar 2 and the original Gigbar?

  1. Design: GigBAR 2 are sleeker and more compact, with improved integration of the different lighting elements.

  2. Light Output: The GigBAR 2 generally offers a brighter and more powerful light output compared to the original GigBAR.

  3. Wireless Connectivity: GigBAR 2 offer wireless connectivity options, allowing for wireless control or synchronization with other compatible lighting systems.
