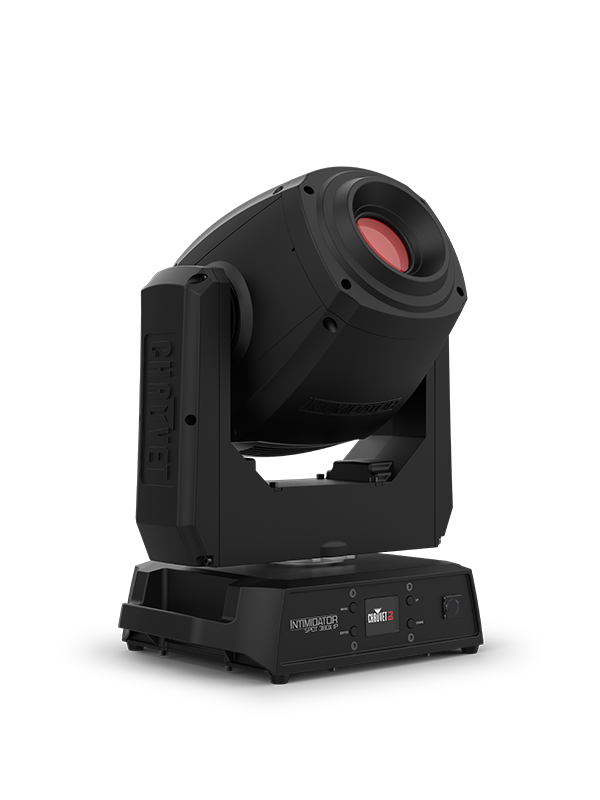

Chauvet DJ Intimidator Spot 360X IP

Chauvet INTIMSPOT360XIP  (Chauvet DJ Intimidator Spot 360X-IP)

Bring the power of Intimidator outdoors! Intimidator Spot 360X IP is an outdoor-rated moving head that prioritizes ease of
use. Setup time is a breeze with power input/output connections that don't compromize on the units water resitance. Take
advantage of an expansive array of wireless control options without the use of DMX with optional RFC or RFC-XL remotes.
Impress guests with smoother programming thanks to a new home positions, crisp gobos at nearly any distance thanks to
the motorized focused, and sharp beams that never leave the dance floor thanks to the built-in, innovative Totem mode
technology. Enjoy Outdoor Event Excellence with Intimidator Spot 360X IP.

When mother nature crashes the party, Intimidator Spot 360X IP has your back. This outdoor-rated moving head is

designed to keep you prepared for the unexpected. With a built in RF receiver for control using the optional RFC or RFC-
XL remotes and a new home position that allows for smoother programming, tackle the outdoors with ease.

FEATURES:
Outdoor-rated moving head designed for situations where mother
nature gets in the way
Power input/output connections save setup time while
maintaining water resistance
Built-in RF receiver for wireless control using the RFC or RFC-XL
optional remotes
New home position allows for smoother programming
Durable magnalium housing is lightweight, strong and corrosion
resistant
Dual rotating prisms split the beam for great effects and cover a
larger area
1⁄4-turn hanging bracket allows for single or dual clamp mounting
options
Project crisp gobos from nearly any distance with the motorized
focus
Beams always remain on the dance floor using the built-in,
innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-color
LCD display
Fits best in the Intimidator Road Case

SPECIFICATIONS:

DMX Channels: 8 or 14
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds
Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: 24 mm outside, 20 mm image, 0.5 mm max thickness
Prism: 5-facet linear, bi-directional at variable speeds
Prism: 3-facet round, bi-directional at variable speeds
Light Source: 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life
expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 15°
Illuminance (2m): 23,978 lux
Illuminance (5m): 3,836 lux
Lumens: 4268
Color Temperature: 15,000 K
IP Rating: IP65
Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
Power Linking: 5 units @ 120 V; 9 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 190 W, 2.4 A @ 120 V, 60 Hz
Power and Current: 185 W, 1.4 A @ 230 V, 50 Hz
Bracket Mounting Hole: 13 mm
Approvals: CE, MET, UKCA, ROHS
Cable Length: 5 ft (1.5 m)
Weight: 23 lb (10.4 kg)
Size: 11.8 x 8.5 x 15.9 in (299 x 217 x 406 mm)
Optional Controllers: RFC, RFC-XL
