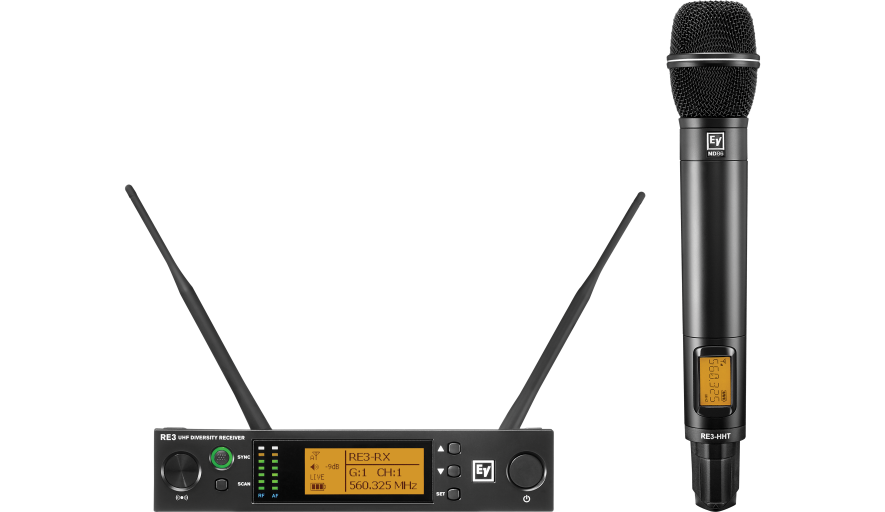

EV RE3-ND86-6M F.01U.354.206(Electro-Voice RE3/ND86-6M)
UHF wireless set featuring ND86 dynamic supercardioid microphone
Handheld UHF wireless set featuring ND86 dynamic supercardioid microphone head for vocal performance and presentations. The ND86’s sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
ND86-RC3 Wireless Head with ND86 Capsule:
Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters)
Excellent acoustic control in even the largest of venues: present, smooth and detailed sound
Large diaphragm dynamic capsule creates a rich and detailed frequency response
Shock-mounted capsule minimizes handling noise
Memraflex grille resists denting
RE3-HHT Handheld Transmitter:
Robust metal body
Sync function for easy frequency setup
Selectable low and high output power (band specific)
Up to 36 MHz tuning bandwidth (band specific)
Common threaded coupling allows microphone head interchangeable
RE3-RX Diversity Receiver:
Diversity reception minimizes dropouts
Frequency scanning for selecting open frequencies
Sync function links transmitter to receiver for easy setup
Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
Easy-to-read LCD display
Other Components:
Microphone stand adapter
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
Band name: 6M
Bandwidth limits (MHz): 653 – 663
Tuning bandwidth: 10 MHz
Selectable frequencies: 400
Transmit output power (mW): 10 and 20
Coverage: Global
