Eliminator MDF3 | Modular RGB LED Dance Floor Panel with DMX Control

ADJ MDF300  (Eliminator MDF3 LED Panel)

Versatile RGB LED Dance Floor Panel for Dynamic Visuals

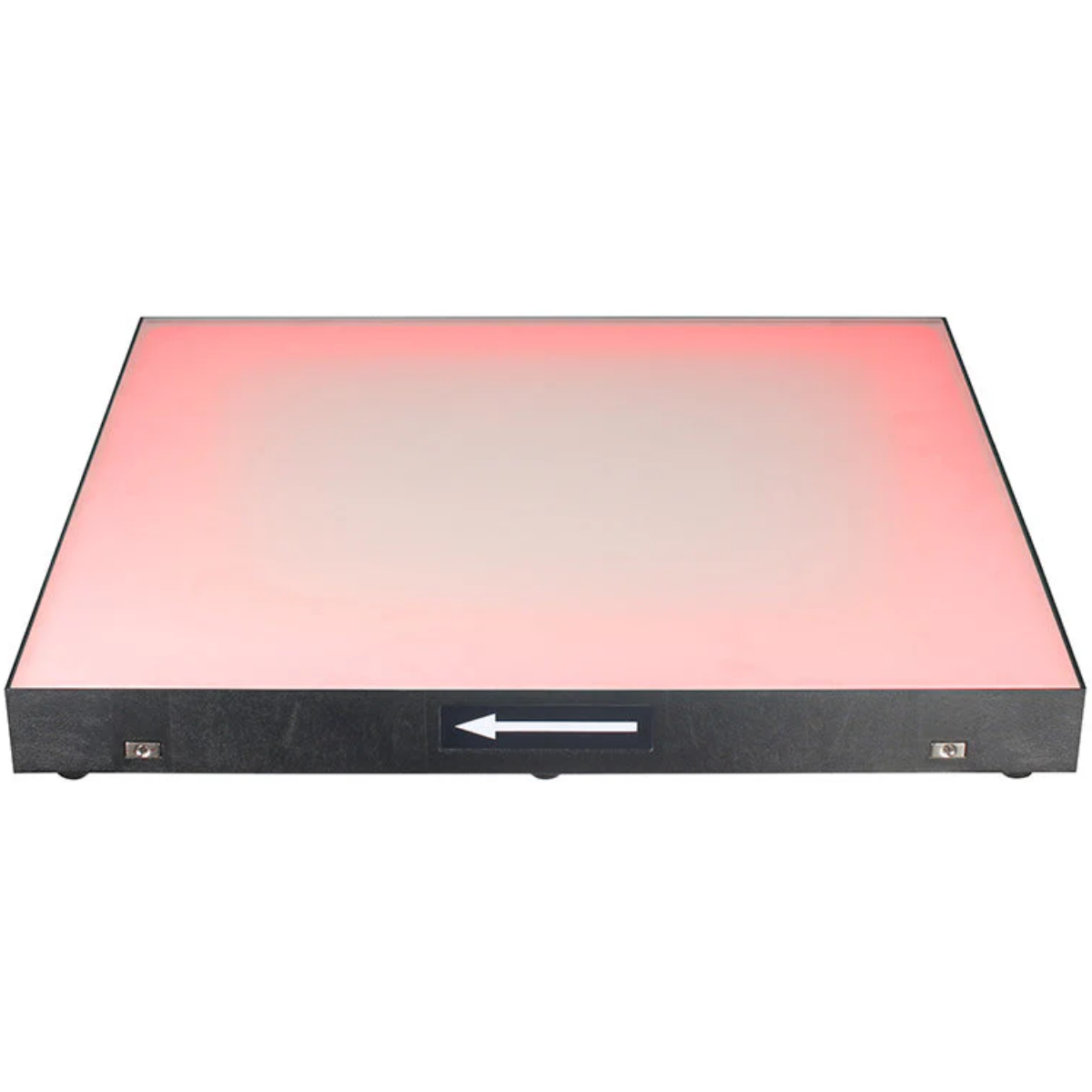

The Eliminator MDF3 is a single modular LED dance floor panel designed to create vibrant, customizable floor displays. Featuring powerful 3-in-1 RGB LEDs, this robust yet lightweight panel brings dynamic color and illumination to any event space. Each MDF3 panel measures 23.62” x 23.62” and is built with durable tempered glass and ABS materials, making it a reliable choice for high-traffic areas.

Eliminator MDF3 Competitive Differences

• High-brightness 3-in-1 RGB LEDs for vivid, full-color displays
• DMX512 control with 3, 5, 7, and 10 channel modes for precise lighting customization
• Multiple control modes: DMX console, sound-activated, audio control, and remote control
• Robust tempered glass and ABS construction for durability in high-traffic applications
• Modular design allows seamless integration with additional panels
• Certified safety standards including cETLus, CSA, and CE compliance

Eliminator MDF3 Description

The Eliminator MDF3 LED dance floor panel combines high brightness with efficient 3-in-1 RGB color mixing, delivering dynamic visuals for dance floors, stages, and event installations. This versatile panel offers multiple control options, including DMX512, sound activation, and remote control, allowing users to create engaging lighting effects. The MDF3 is constructed with a tempered glass surface and ABS base, providing a solid build capable of supporting up to 61.5 lbs. per square foot, ideal for high-traffic and high-energy environments. Each panel is equipped with a 160° visual angle for wide-ranging light dispersion, creating an immersive experience for event attendees. The MDF3’s modular design allows users to connect multiple panels seamlessly, making it adaptable to venues of various sizes. Operating in temperatures from -4°F to 113°F, the MDF3 is built for reliable use under diverse environmental conditions.

MDF3 Features

• High-brightness RGB 3-in-1 LEDs with 160° visual angle
• DMX512 input with control modes: DMX console, sound-activated, audio control, and remote control
• Tempered glass and ABS construction for durability and high load-bearing capacity
• Compatible with a range of power supply options for different panel configurations
• Modular design allows easy integration with additional panels

MDF3 Specifications

• Light Source: RGB 3-in-1 LED
• Control Signal: DMX512 (3-Pin XLR)
• DMX Channel Modes: 3, 5, 7, & 10 channels
• Surface Material: Tempered Glass
• Base Material: ABS
• Power Consumption: 15W
• Input Voltage: DC 24V (requires power ramp)
• Dimensions: 23.62” x 23.62” x 2.76” (600 x 600 x 70 mm)
• Weight: 26.57 lbs. (12.05 kg)
• Load Bearing Capacity: 61.5 lbs./ft² (300 kg/m²)
• Approvals: cETLus, CSA, CE compliant
• Operating/Storage Temperature: -4°F to 113°F (-20°C to 45°C)

MDF3 Series Accessories

• MDF300: LED Floor Panel
• Power Supplies: MDF232 (9 panels), MDF248 (15 panels), MDF264 (20 panels), MDF281 (40 panels), MDF454 (117 panels), MDF477 (156 panels)
• Power Main Cables: MDF297 (16 ft), MDF313 (20 ft), MDF320 (25 ft), MDF336 (50 ft)
• MDF388: Connection/Power Transfer Bracket
• MDF368: Panel Removal Tool
• MDF390: Power Supply Ramp
• MDF401: Edging Ramp
• MDF417: Corner Ramp
