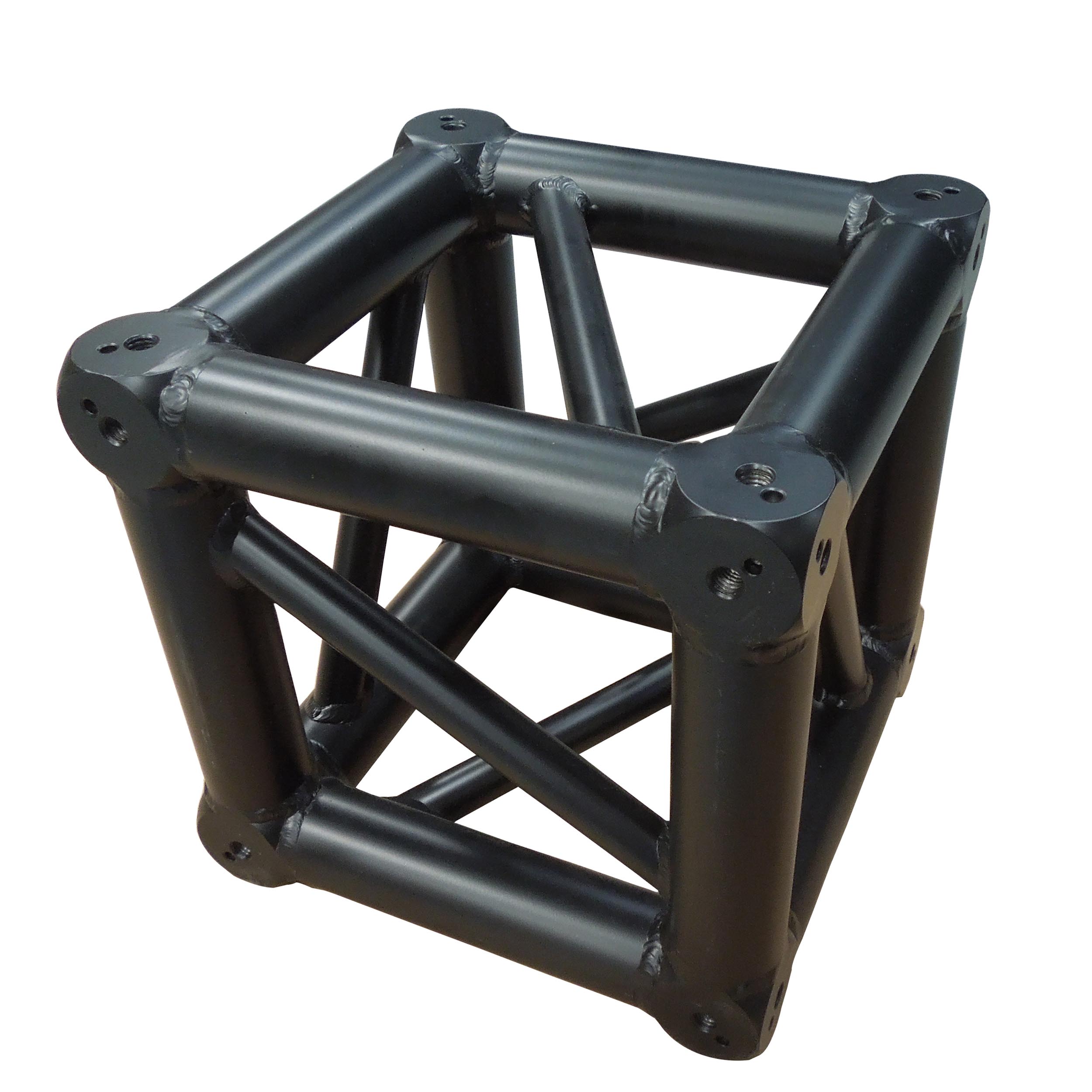

ProX XT-JB6W-4W-BLK | F34 Universal Junction Box

Pro X XT-JB6W 4 Way Black  (ProX XT Junction Box in black)

6 Way Square Truss Junction Block - Includes 4 Way 16 Half Conical Couplers | Black Powder Coated | 3mm Wall

The ProX XT-JB6W-4W-BLK 6 Way Square Truss Junction Box | 3mm Wall is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components.  It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications.  It is built to the highest standards of safety and performance.   Finished in Powder Coated Black

16 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103)

Powder coating provides a stronger finish that is more resistant to damage than paint!  Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display.  Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

ProX Goes Green - Unlike many liquid paints, powder coatings offer a smaller carbon footprint which reduces the adverse effects on the environment.  Powder coatings contain no solvents and release little or no amount of Volatile Organic Compounds (VOC) into the atmosphere!

Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

Tolerance Free Conical Connector System
Main tube wall thickness of .08in (2mm)
ProX Heavy Duty Connector Sockets
XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .11in / 3mm
Braces: .75in / 20mm

Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
Black Powder Coated

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers F34 trussing products.

To Fit
Standard F34 Configurations


Shipping Dimensions
12.50"L x 12.50"D x 12.50"H
Shipping Weight: 18.00 lbs

Suggested Shipping Method: Parcel

UPC
019372410980
