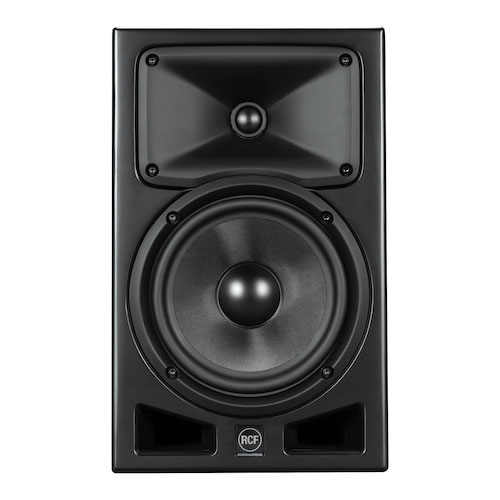

RCF AYRA PRO8 | 8in - 111dB

RCF AYRA-EIGHT-PRO  (RCF AYRA Pro-8)

AYRA PRO8
PROFESSIONAL ACTIVE TWO-WAY STUDIO MONITORS

AYRA PRO8 studio monitor works perfectly in any listening environment, whether large or small production facilities, with absolute clarity. It delivers accurate monitoring and provides the engineer or producer with a neutral tool to analyze recordings and optimize the mix; for this reason, we call it PRO. Featuring a dedicated powerful internal DSP that optimizes frequency response and dynamics together with the exclusive RCF FiRPHASE processing and selected components, the AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.

Features:

45 – 20 kHz Frequency Response
0° Phase Response
100W + 40W Class-D Amplifiers
8” Composite Fiberglass Woofer
1” ferrofluid cooled Soft Dome tweeter
RCF Precision Waveguide
DSP Processing with FiRPHASE
Low distortion frontal Vented Ports

FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
111 dB

HORIZONTAL COVERAGE ANGLE:
110°

VERTICAL COVERAGE ANGLE:
70°

Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

WOOFER:
8'', 1.5'' v.c

Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack, RCA

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
2000Hz

LIMITER:
Soft Limiter

CONTROLS:
HF Adjust -1dB,0,+1dB LF Adjust -2dB,0,+2dB
Power section
TOTAL POWER:
280 W Peak, 140 W RMS

HIGH FREQUENCIES:
80 W Peak, 40 W RMS

LOW FREQUENCIES:
200 W Peak, 100 W RMS

CONNECTIONS:
XLR, Jack, RCA
Standard compliance
CE MARKING:
Yes

Physical specifications
CABINET/CASE MATERIAL:
MDF

COLOR:
Black - RAL 9005

Size
HEIGHT:
410 mm / 16.14 inches

WIDTH:
253 mm / 9.96 inches

DEPTH:
320 mm / 12.6 inches

WEIGHT:
8.6 kg / 18.96 lbs

PACKAGE HEIGHT:
510 mm / 20.08 inches

PACKAGE WIDTH:
416 mm / 16.38 inches

PACKAGE DEPTH:
329 mm / 12.95 inches

PACKAGE WEIGHT:
9.5 kg / 20.94 lbs
