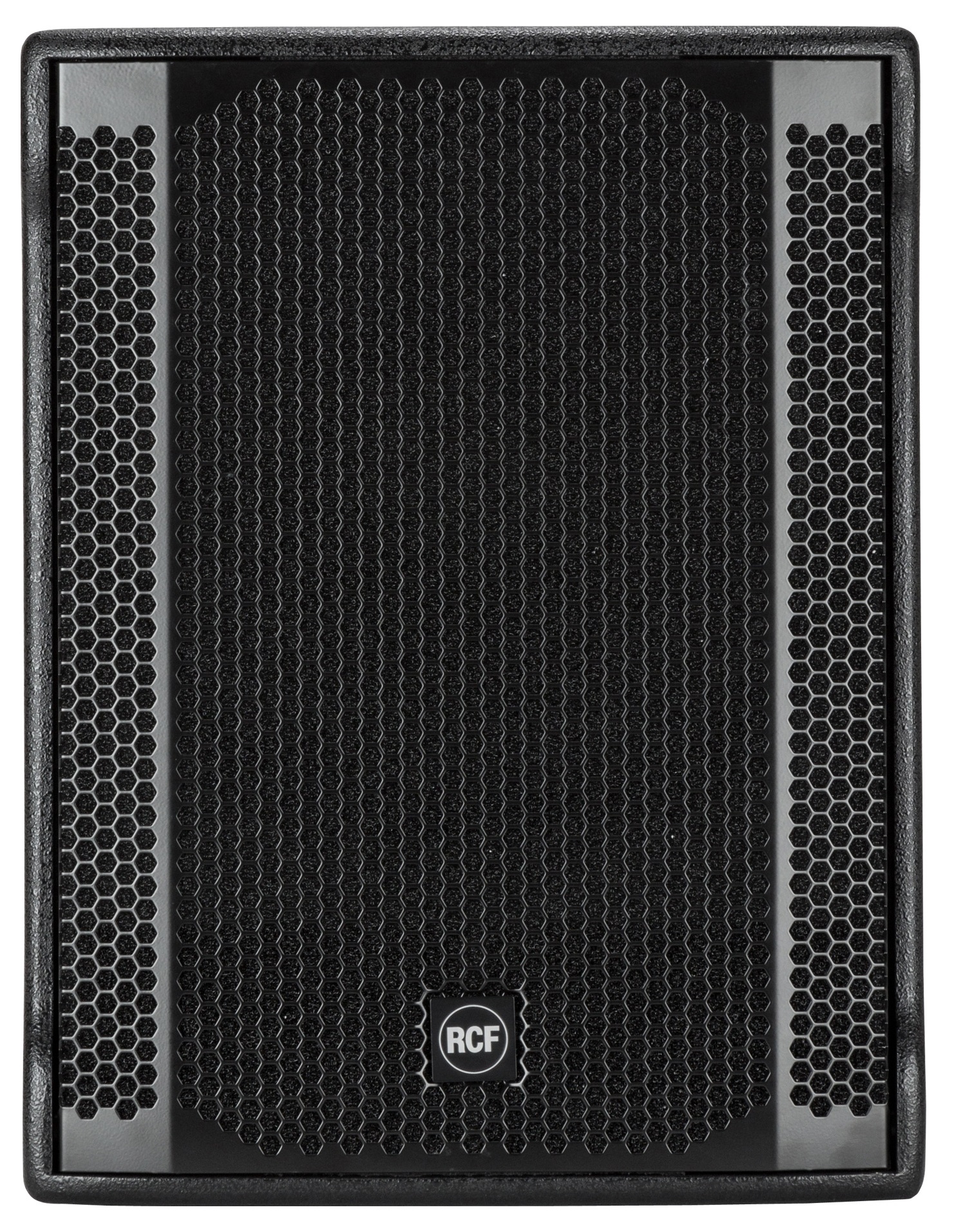

RCF Sub 705 AS MkII | 15in - 131dB

RCF Sub-705-AS-Mkii  (RCF sub705 AS mk2)

SUB 705-AS II
ACTIVE SUBWOOFER

The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.

Features:

1400 Watt Digital Amplifier
15" Woofer, bass reflex housing
Stereo crossover
Switchable crossover frequencies
Phase-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 120 Hz
Max SPL:131 dB
Woofer:15", 3.0" v.c.

INPUT/OUTPUT SECTION
Input connectors:Stereo XLR
Output connectors:Stereo XLR
Input sensitivity:-2 dBu / + 4 dBu

PROCESSOR SECTION
Crossover frequencies:80-110 Hz Hz
Protections:thermal, rms
Limiter:soft limiter
Controls:Volume, EQ, phase, xover

AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
   Low frequencies:1400 W PEAK
Total power:700 W RMS
   Low frequencies:700 W RMS
Cooling:convection
Connections:VDE connector

CABINET
Cabinet Material:Baltic birch plywood
Hardware:Pole mount
Handles:2 side
Pole Mount/Cap:yes
Grille:Steel
Color:Black

PHYSICAL SPECIFICATIONS
Height:568/22.36 mm/inch
Width:430/16.93 mm/inch
Depth:595/23.43 mm/inch
Net Weight:28.0/62 kg/lbs
