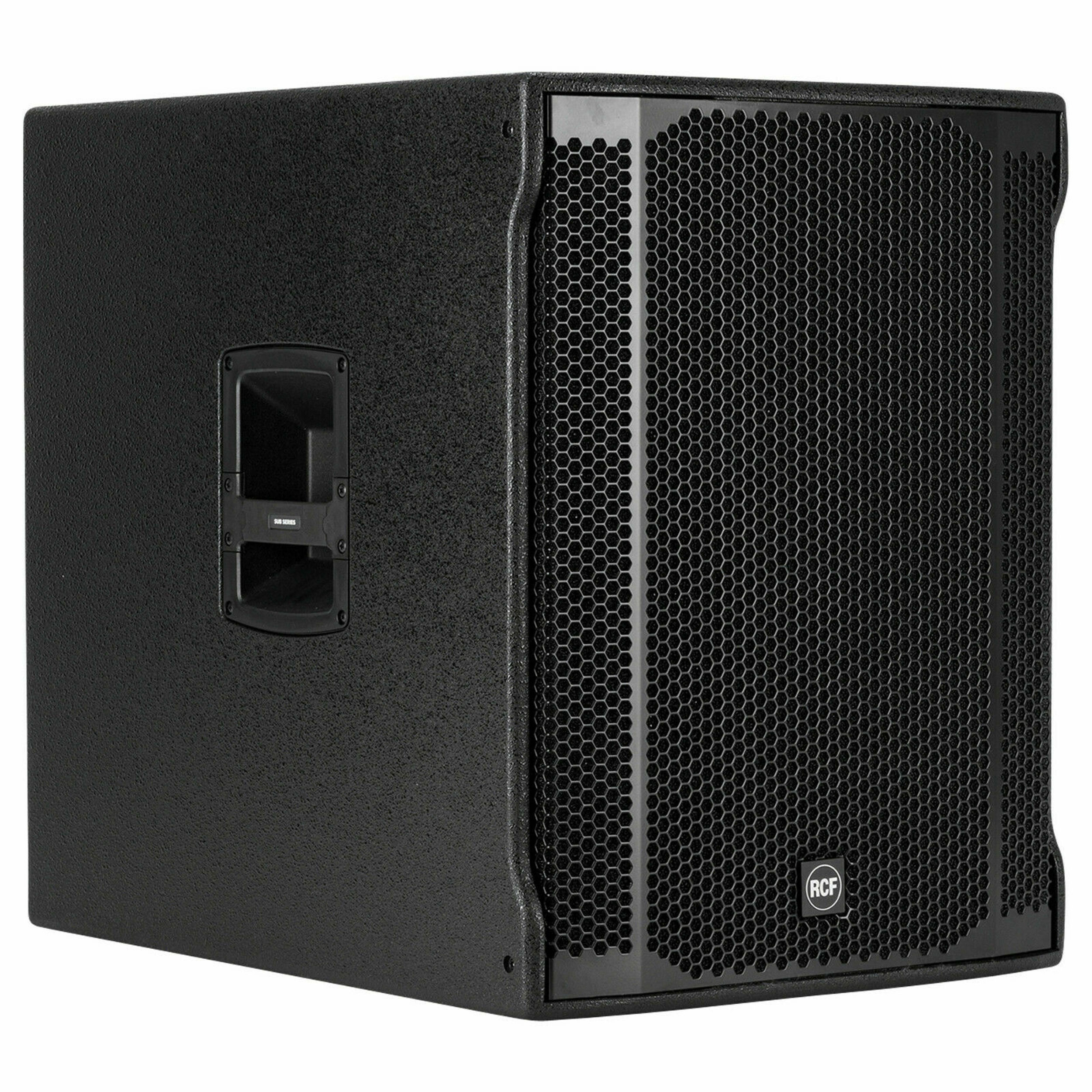

The SUB 905-AS II active subwoofer is ideal for building powerful subwoofer satellite systems where compactness and high sound levels are required at the same time. The SUB 905-AS has the most advanced RCF woofer technology, coupled with a powerful 2200 W digital amplifier. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands or DJs.

Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

The trasducers innovators
RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Cabinet & mechanics
The RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

2200 W
133 dB max SPL
40 Hz - 120 Hz frequency response
15" Woofer, 3.0" v.c.
Selectable gain, X-over and delay
Birch tour grade cabinet
Stereo XLR input, Stereo XLR signal output

Frequency Response:40 Hz ÷ 120 Hz
Max SPL @ 1m:133 dB

Woofer:15'', 3.0'' v.c

Input connectors:XRL Stereo
Output connectors:XRL Stereo
Input sensitivity:-2 dBu/+4 dBu

Crossover Frequencies:Selectable
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Gain,EQ, phase, xover, delay, cardioid

Total Power:2200 W Peak, 1100 W RMS
Low frequencies:2200 W Peak, 1100 W RMS
Connections:Powercon IN/OUT

CE marking:Yes

Cabinet/Case Material:Baltic birch plywood
Handles:2 Side
Pole mount/Cap:Yes

Height:600 mm / 23.62 inches
Width:445 mm / 17.52 inches
Depth:610 mm / 24.02 inches
Weight:30.2 kg / 66.58 lbs

Package Height:650 mm / 25.59 inches
Package Width:670 mm / 26.38 inches
Package Depth:500 mm / 19.69 inches
Package Weight:35 kg / 77.16 lbs
