SquareCable DMX-05 | 5ft DMX Cable (3-Pin)

Standard Discount:
$19.99
Available - Ships in 1-2 days [?]
Warranty Options
Condition
This item is brand new, factory sealed. It includes the full factory warranty and all applicable factory rebates.
Description
Reviews
Questions
Financing  (3)

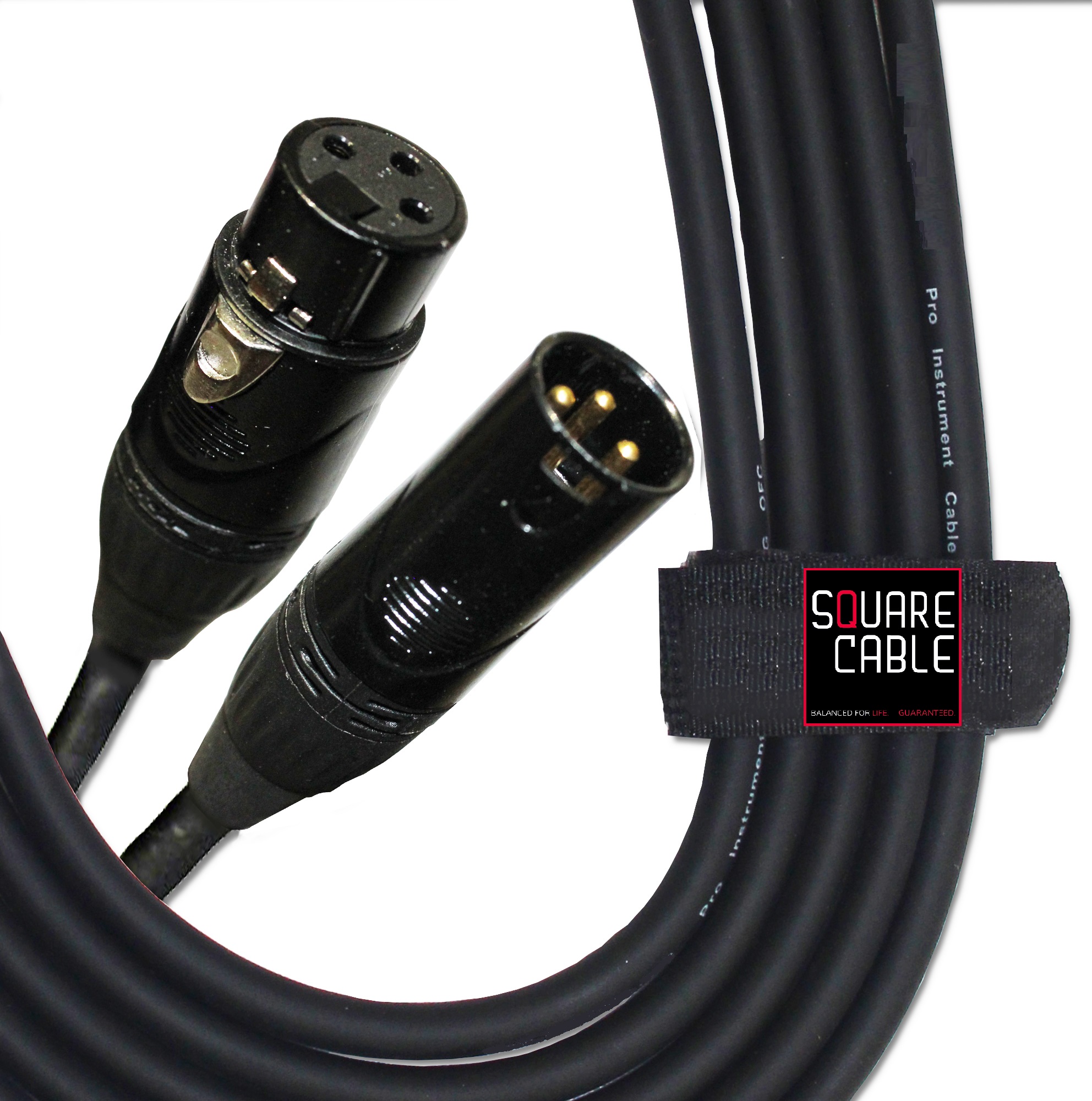

Square Cable SQ-DMX05  (SquareCable DMX5)

Square Cable 5ft DMX Cable for Lighting
Tour Grade, Ultra High Performance DMX 3-Pin Male to DMX 3-Pin Female

3-Pin DMX Lighting Cable

All Metal XLR Connectors
Twisted Pair Data Cable with Polyethylene Insulation
100% Coverage Duofoil
85% Coverage Tinned Copper Braid Shield with Cotton
Durable PCV Jacket
Bend/Twist Resistant Cable
Gold Plated Contacts
Lifetime Guarantee

Nominal Characteristic Impedance: 110 Ohms
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft

These Tour Grade Cables are resistant to bending & twisting. They are ideal for professional grade signal transfer with standard DMX fixtures.
