Square Cable DMX-25 | 25ft DMX Cable (3-Pin)

Standard Discount:
$39.00
This item is in stock!

Warranty Options
Condition
This item is brand new, factory sealed. It includes the full factory warranty and all applicable factory rebates.
Description
Reviews
Questions
Financing  (3)

Square Cable SQ-DMX25  (Square Cable DMX25)

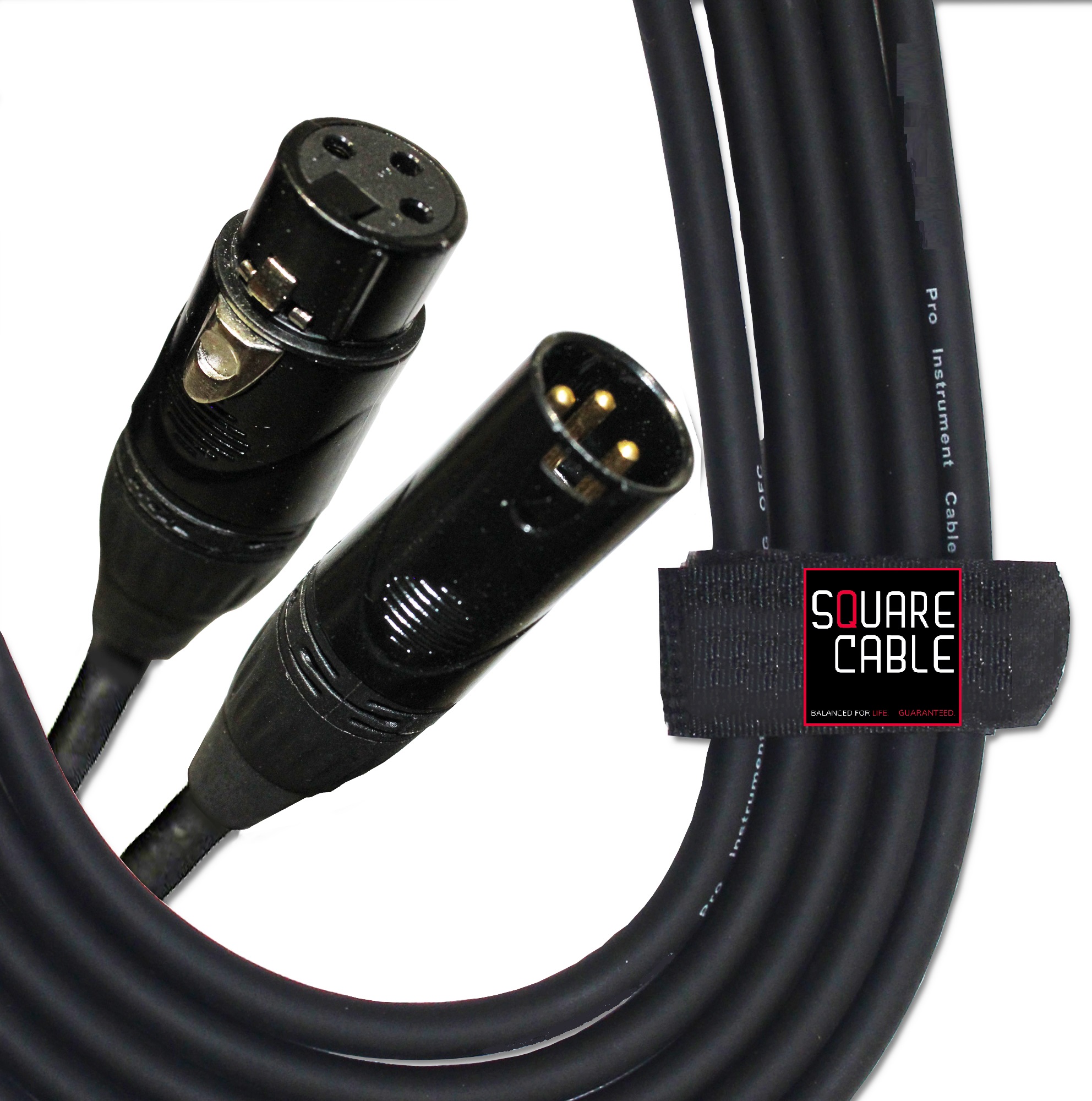

Square Cable 25ft DMX Cable for Lighting
Tour Grade, Ultra High Performance DMX 3-Pin Male to DMX 3-Pin Female

3-Pin DMX Lighting Cable

All Metal XLR Connectors
Twisted Pair Data Cable with Polyethylene Insulation
100% Coverage Duofoil
85% Coverage Tinned Copper Braid Shield with Cotton
Durable PCV Jacket
Bend/Twist Resistant Cable
Gold Plated Contacts
Lifetime Guarantee

Nominal Characteristic Impedance: 110 Ohms
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft

These Tour Grade Cables are resistant to bending & twisting. They are ideal for professional grade signal transfer with standard DMX fixtures.
