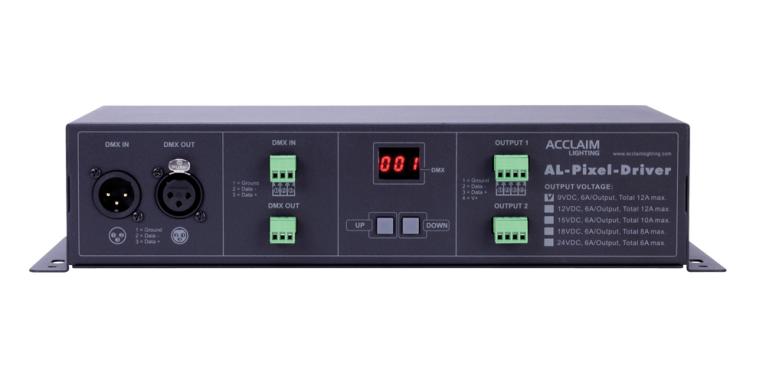

Acclaim AL Pixel Driver

Acclaim Lighting ALPixel Driver  (Acclaim AL-Pixel Driver)

Model : DPI-111-CAAE AL Pixel Driver 100-230V (VDE) (for 2 strings)
Model : DPI-111-CAAU AL Pixel Driver 100-230V (UL) (for 2 strings)

AL-Pixel-Driver is a simple driver, specially designed to drive our LED product AL-Pixel. It features DMX addressing automatically, optional driven pixel of AL-Pixel and digit LED display. The brightness of red, green and blue at each pixel can be controlled separately. Moreover, the EEPROM is used to memorize the current function and parameters. AL-Pixel-Driver is easy to operate with high reliability.

Features

• System: Pixel Driver 9v
• Control Options: DMX-512, DMX-1000
• Load: 1 pc AL Pixel string with max 100 pixels or 2 pcs AL Pixel string with max 50 pixels
• Addressing DMX: Automatic
• Power Requirement: 110 Vac (3.2A) / 240 Vac (1.6A)
• DMX Input: 3-pin Term. and 3-pin XLR
• DMX Output: 3-pin Term. and 3-pin XLR (auto addressing)
• Output to LED: 2 x 4-pin Terminal
• Listing: CE Certified
• Operating Temp.: 0 °C ~ +40 °C
• Storage Temp.: -20 °C ~ +70 °C
• Housing: Sheet metal with powder painting
• Ingress Protection Rating: IP20
• Dimensions: 327,6 (L) x 143,6 (W) x 70 (H) mm
• Weight: 2,0kg
