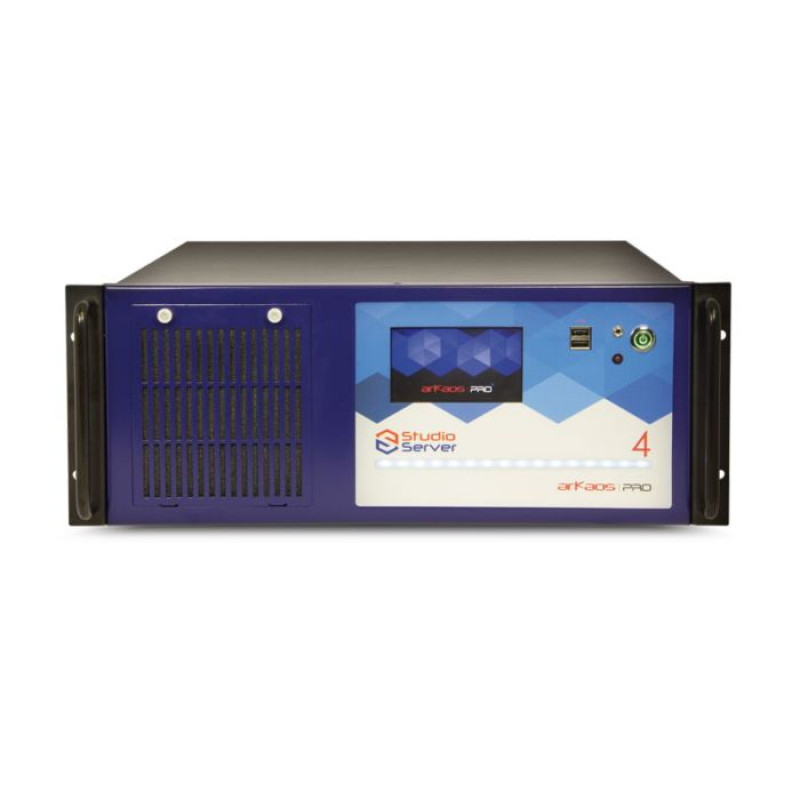

American DJ ArKaos Studio Server

Features
Plug and Play Simplicity
Vast library of high quality digital media from world’s best visual content providers
Comes installed with MediaMaster Pro

Smart Design
Runs full HD video on up to four EDID managed outputs
One HD-SDI input and fast SSD drive
Large LED status strip for quick visual feedback on the server’s operation state
Front display allows use of server without the need of additional screens
Fast recovery system by Acronis allows extremely simple reset from the boot menu
Pre-configured to work directly with all market-leading DMX lighting desks

Blistering Performance
Shock-resistant up to 2G
Easy access to fans and filters
Thoroughly tested in structural strength, and toleration of heat and vibration

Specifications
Interface Output: 1 (DVI)
Output: 4 (DVI)
EDID Management: Yes
Input (Standard): 1x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
Output Resolution: 4 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2

STORAGE
System Drive: SSD 128 GB
Separate Drive: SSD 256 GB

SOFTWARE
MediaMaster: Pro
CuePlayer (Theater mode): Yes
LED Mapper: Yes
Kling-Net Mapper: Yes
Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes

CONTROL
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes

HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes

SIZE / WEIGHT
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)
