Blizzard Lighting Motif Atelier 8FX

Blizzard Pro Motif Atelier 8-FX  (Blizzard Lighting Motif Atelier 8 FX)

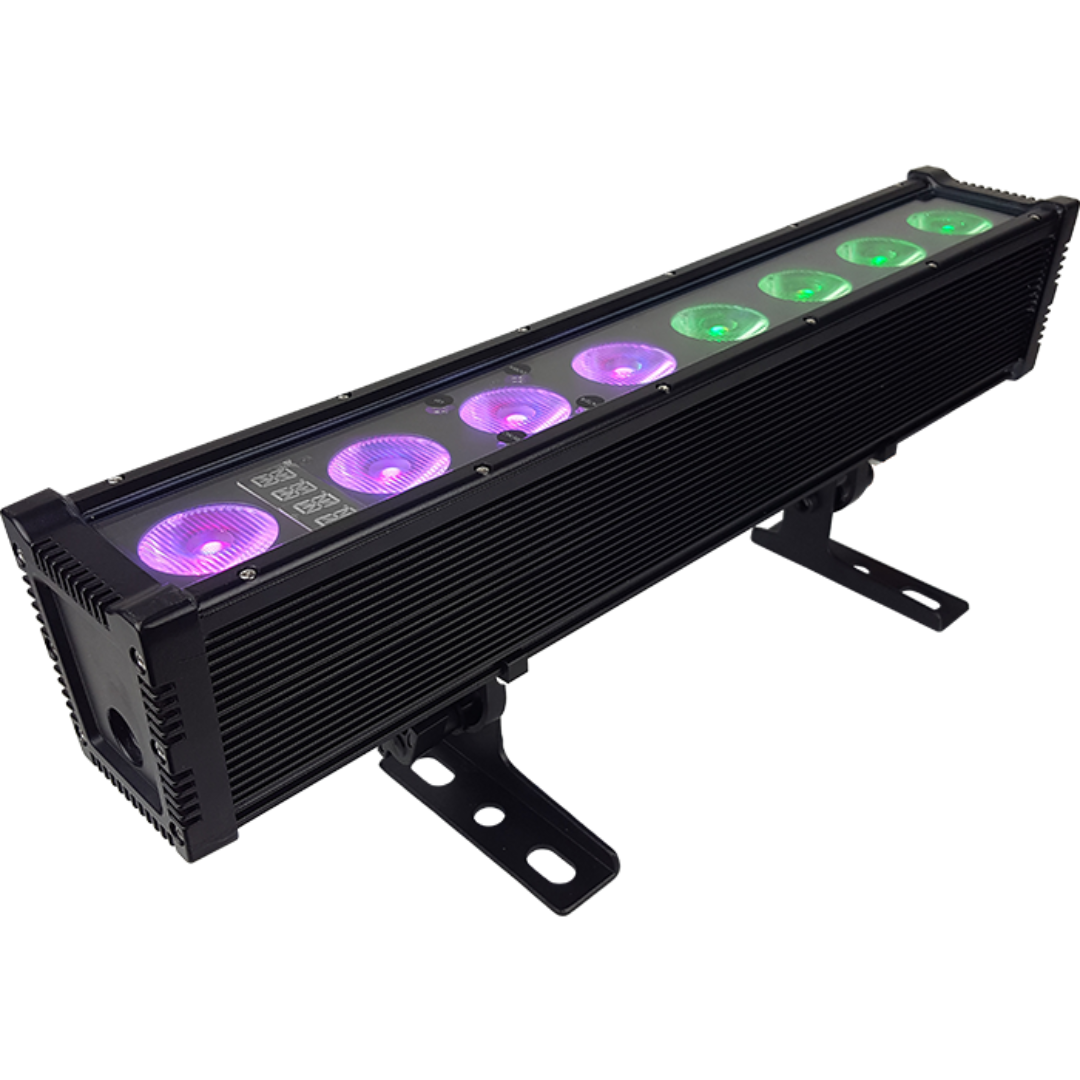

Motif Atelier 8FX
10x40° Asymmetrical Beam

RGB+WW 4-in-1 LEDs
Rugged yet elegant… that’s not just a description of the Blizzard Modern Interpretive Dance Troop. It also describes the Motif™ Atelier™ 8FX. Our IP65-rated 1-meter wash offers RGB+WW 4-in-1 LED color mixing and pixel effects via 8x 15W, individually controllable high output LEDs. It mimics tungsten-source lighting to produce soft, warm white tones or add more warmth to the blend of any RGB mixed color.

Asymmetrical 10x40° Optics
Motif™ Atelier™ 8FX innovative asymmetrical 10x40° optics are ideally suited for vertical wash applications along walls, scrims, and other boundaries. It projects a 10° soft edge parallel to minimize spill away. Atelier’s™ 40° angle is perpendicular; its long axis mixes individual LEDs into a homogeneous wash or allows multiple swaths of color to overlap for spectacular gradients and pixel effects.


MAIN FEATURES
• Color mixing via 8x 15W RGB+WW 4-in-1 LEDs
• 10-40° asymmetrical beam spread
• Wash effect, grouped pixels, and pixel mapping
• Virtual color wheel effects
• 33 built-in automated programs, 10 custom colors, and 3 custom program banks
• RGB+WW color mixing ability in standalone mode
• Custom global color calibration settings
• Variable electronic dimmer & multiple strobe effects
• Sync custom settings between fixtures via DMX
• Fixture ID addressing
• LED control panel with touch sensitive buttons
• Durable cast aluminum housing
• Tempered glass lens and watertight internal gaskets
• Efficient convection cooling for zero fan noise
• Mounting bracket with locking knobs

Optical

8x 15W RGB+WW 4-in-1 LEDs, (2700k Warm White)

10-40° asymmetrical degree beam

Flicker-free LEDs

Luminous intensity: 1,037 Lux (96.4 fc) @ 2m | 242 Lux (22.5 fc) @ 4m


Weight & Dimensions

Width: 20.6” (522 mm)
Depth: 3.7” (94.7 mm)
Height: 7.1” (179.9 mm)

Bracket depth: 5.2” (132.3 mm)

Weight: 9.3 lbs. (4.2 kg)


Control

Protocol: USITT DMX-512

3/4/5/10/16/24/32 or 40-channel DMX

Standalone, master/slave, color preset, auto mode

3-pin DMX input/output

4-button LED control menu display


Power & Current

100-264VAC, 47-63 Hz

107W, .87A, PF: .99


Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs
