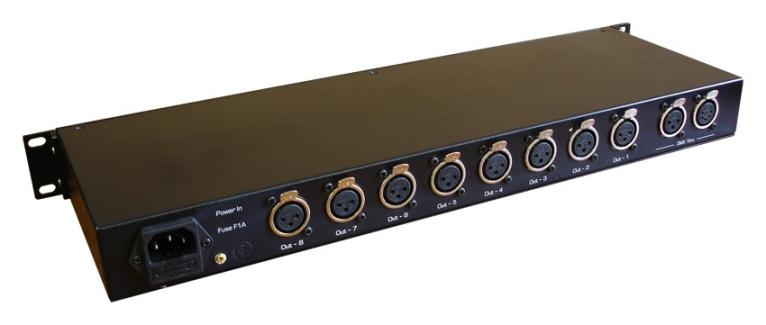

Pipeline 8-way DMX Distributor
Blizzard Lighting is proud to introduce the Pipeline™ 8-way DMX distributor.
The unit has two inputs and eight outputs. It features absolute electrical
isolation between input and outputs, and between all of the outputs. There are
two types of DMX connectors (3-pin) for each individual channel. Each DMX output
features an independent driver. With the Pipeline™ you can run up to 32 units
per one output channel.
Fully compliant to DMX-512 (1990)
3pin & 5pin DMX Input and DMX Thru
100% electrical isolation between in/output
100% electronic isolation between output/output
Signal & power LED indicator for each output
Termintor resistor switch for end of a DMX chain
Power input via IEC connector on rear panel
Removable rack wings for Rack mount or wall mount
Anodized aluminum front panel
Power input: AC120V 50Hz/60Hz
Consumption: 10W
Dimensions: 482 x 130 x 44mm
Weight: 2.6KG
