Blizzard Lighting Squarodox 3D

Blizzard Pro Squarodox 3D  (Blizzard Lighting Square O-Dox 3D)

3D Cube Effect Panel

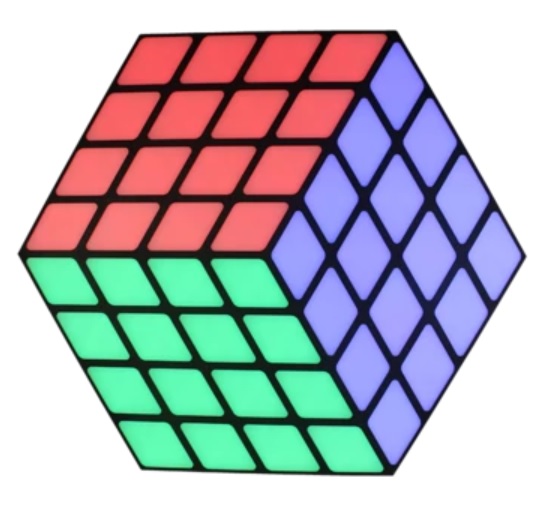

Squarodox™ 3D is an LED effect panel that displays dazzling 3D light shows with its built-in programs, sound activated modes, or even your own pixel mapped video. It features a killer 3D cube layout with fixtures that can be linked together to create infinitely large wall of light.

MAIN FEATURES
• 192 3-in-1 RGB 5050 LED chips
• Built-in auto & sound active modes
• LED digital display
• DMX channels: 5/8/41/144/149
• PowerCON compatible power input/output
• 3-pin DMX input/output
• Steel omega mounting bracket

Optical

192 3-in-1 RGB 5050 LED chips


Weight & Dimensions

23.6 x 19.7 x 3.2 inches (600 x 500 x 82 mm)

12.8 lbs (5.8 kg)


Control

Protocol: USITT DMX-512

DMX Channels: 5/8/41/144/149

3-pin DMX In/Out

Operating Modes: DMX512, master/slave, auto, sound active


Power & Current
90-260VAC, 50-60Hz
Power Consumption: 60W


Warranty
2-year limited warranty
