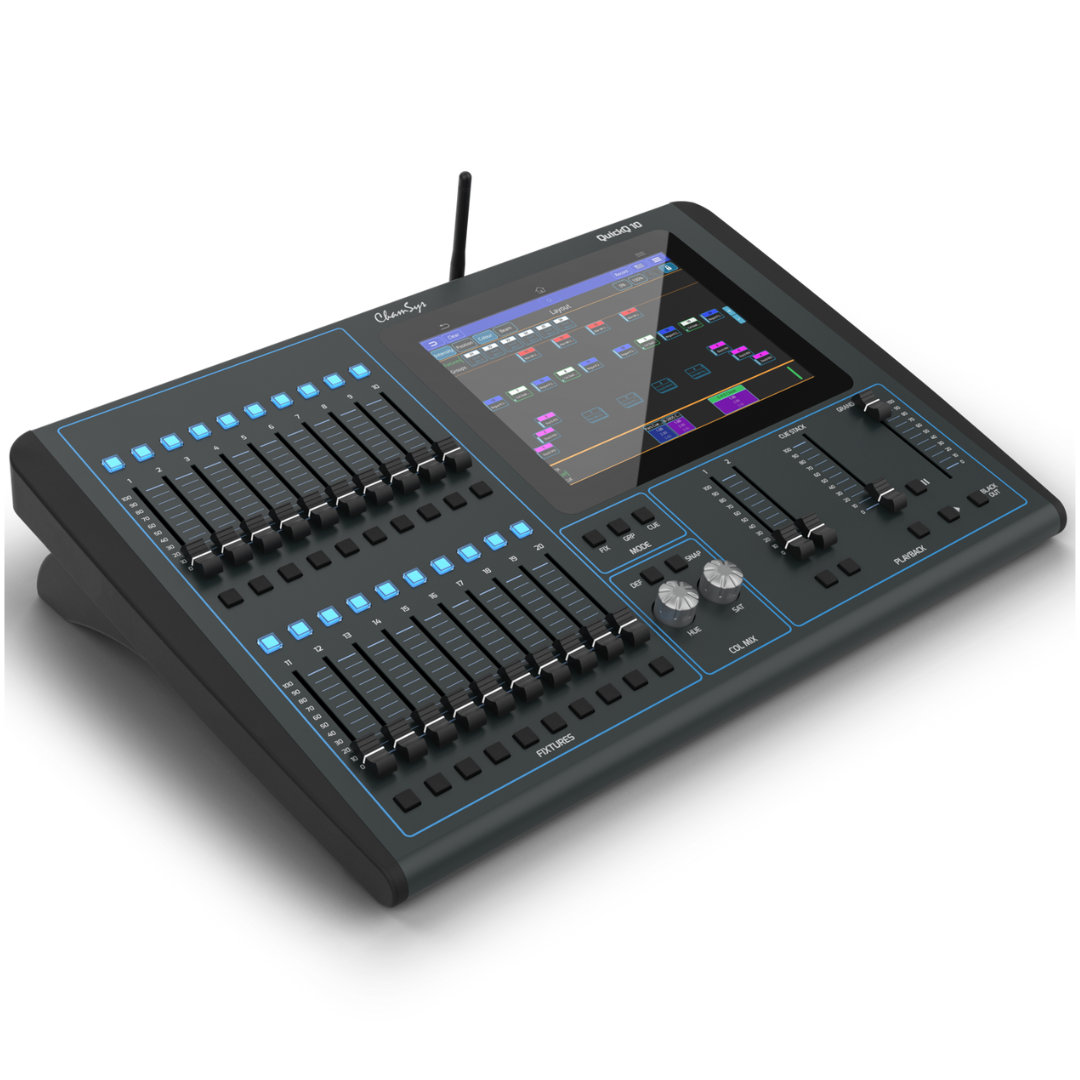

ChamSys QuickQ 10 is a user-friendly lighting console built for smaller rigs and newer operators, offering intuitive control for dimmers and LED fixtures. With a 9.7-inch multi-touch display and smartphone-style interface, it simplifies setup, programming, and playback—making it an ideal solution for schools, churches, small theaters, and mobile productions.
ChamSys QuickQ 10 Competitive Differences
9.7in multi-touch display with intuitive smartphone-style interface
In-built Wi-Fi for remote app control via iOS and Android devices
ChamSys QuickQ 10 Description
The QuickQ 10 is designed for ease of use, especially for lighting beginners or smaller venue operators. The console features 20 multi-function faders for fixture, group, and cue control, and 3 playback faders (2 for chases, 1 for cue stack), all labeled on-screen for clear operation. A dedicated Grand Master fader gives you full control over output levels, while the color control area with Hue/Saturation encoders and built-in color picker streamlines LED color mixing.
The 9.7" multi-touch display supports gesture control like pinch-to-zoom and scrolling, and includes an on-screen pan/tilt trackpad and built-in FX generator. The console supports one DMX universe via 5-pin XLR and adds ArtNet/sACN/Pathport output via the network port.
With built-in Wi-Fi, you can connect to the free QuickQ app for remote control—just scan the on-screen QR code. The console is compatible with ChamSys' offline designer software for Mac and Windows, allowing you to program shows in advance and load them via USB.
Model Features
9.7" multi-touch screen with gesture support
20 multi-function faders with on-screen legends
3 playback faders (2 chase, 1 cue stack)
Dedicated Grand Master fader
Hue/Saturation encoders and built-in color picker
Supports DMX, ArtNet, sACN, and Pathport
Wi-Fi control with free app for iOS/Android/Windows
Compatible with QuickQ and MagicQ software platforms
Model Specifications
Universes Supported: 1
Max DMX Channels: 512
Max Fixtures Supported: 512
Cue Stacks: 1
Chases: 2
DMX Output: 1 x 5-pin XLR
Network Port: 1
USB Ports: 2
Audio Input: 1
Audio Output: 1 (enabled via future update)
External Monitor Support: 1920 x 1080 HDMI
Power Consumption: Max 60W
Console Dimensions: 20.7 x 13.8 x 4.2 in (525 x 350 x 106 mm)
Console Weight: 8.97 lb (4.07 kg)
Boxed Dimensions: 26.8 x 16.5 x 9 in (680 x 420 x 230 mm)
Boxed Weight: 17.63 lb (8 kg)
Flightcase Dimensions: 25.6 x 19.3 x 8.3 in (650 x 490 x 210 mm)
