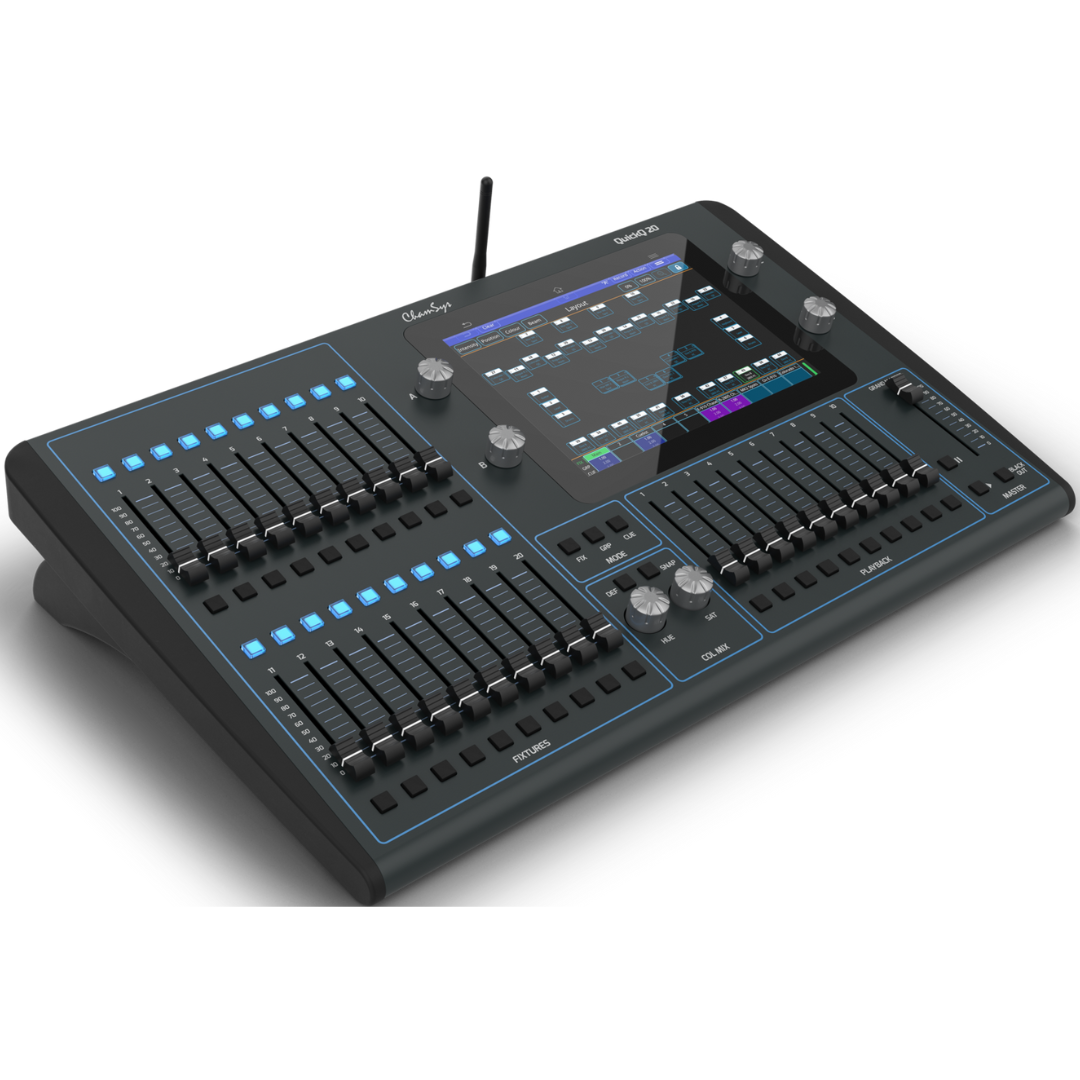

ChamSys QuickQ 20 is an intuitive, feature-rich lighting control console designed for easy programming and control of dimmers, LED fixtures, and moving lights. With a user-friendly 9.7" multi-touch interface and streamlined features, it’s ideal for churches, schools, theaters, and event spaces.
ChamSys QuickQ 20 Competitive Differences
20 fixture faders and 10 playback faders for hands-on live control
Supports 2 universes via direct DMX and ArtNet/sACN networking
ChamSys QuickQ 20 Description
The QuickQ 20 is built for users needing an easy-to-learn lighting console that delivers real power and flexibility. Featuring a 9.7" multi-touch screen modeled on smartphone-style gestures, the console makes setup, programming, and playback highly accessible—even for novice operators.
With 20 multi-function fixture faders and 10 master playback faders, the QuickQ 20 offers excellent tactile control for live environments. The console supports RDM fixture auto-patching and includes onboard networking to output over ArtNet, sACN, and Pathport. Built-in Wi-Fi allows remote control via the free QuickQ app for iOS, Android, or Windows tablets—just scan the on-screen QR code to connect.
Advanced features like a color picker, FX generator, master cue stack, and OSC support bring pro-level functionality into a console that’s simple enough for beginners. The included offline editor for Mac and Windows also lets you pre-program shows remotely.
Model Features
9.7" multi-touch screen with gesture-based interface
20 multi-function fixture faders with on-screen legends
10 playback faders with cue/chase support
Dedicated Grand Master fader
Color control area with Hue/Saturation encoders and picker
In-built Wi-Fi for app-based remote control
ArtNet, sACN, Pathport, and direct DMX output
OSC and MIDI support (output enabled via future update)
Model Specifications
Universes Supported: 2
Max DMX Channels: 1024
Max Fixtures Supported: 1024
Cue Stacks: 10
Chases: 10
DMX Outputs: 2 x 5-pin XLR
Network Port: 1
USB Ports: 2
Audio Input: 1
Audio Output: 1 (enabled via future update)
MIDI Ports: Yes (enabled via future update)
External Monitor Support: 1920 x 1080 HDMI
Power Consumption: Max 60W
Console Dimensions: 22.2 x 13.8 x 4.2 in (565 x 350 x 106 mm)
Console Weight: 11.46 lb (5.2 kg)
Boxed Dimensions: 26.8 x 16.5 x 9 in (680 x 420 x 230 mm)
Boxed Weight: 17.63 lb (8 kg)
Flightcase Dimensions: 25.6 x 19.3 x 8.3 in (650 x 490 x 210 mm)
