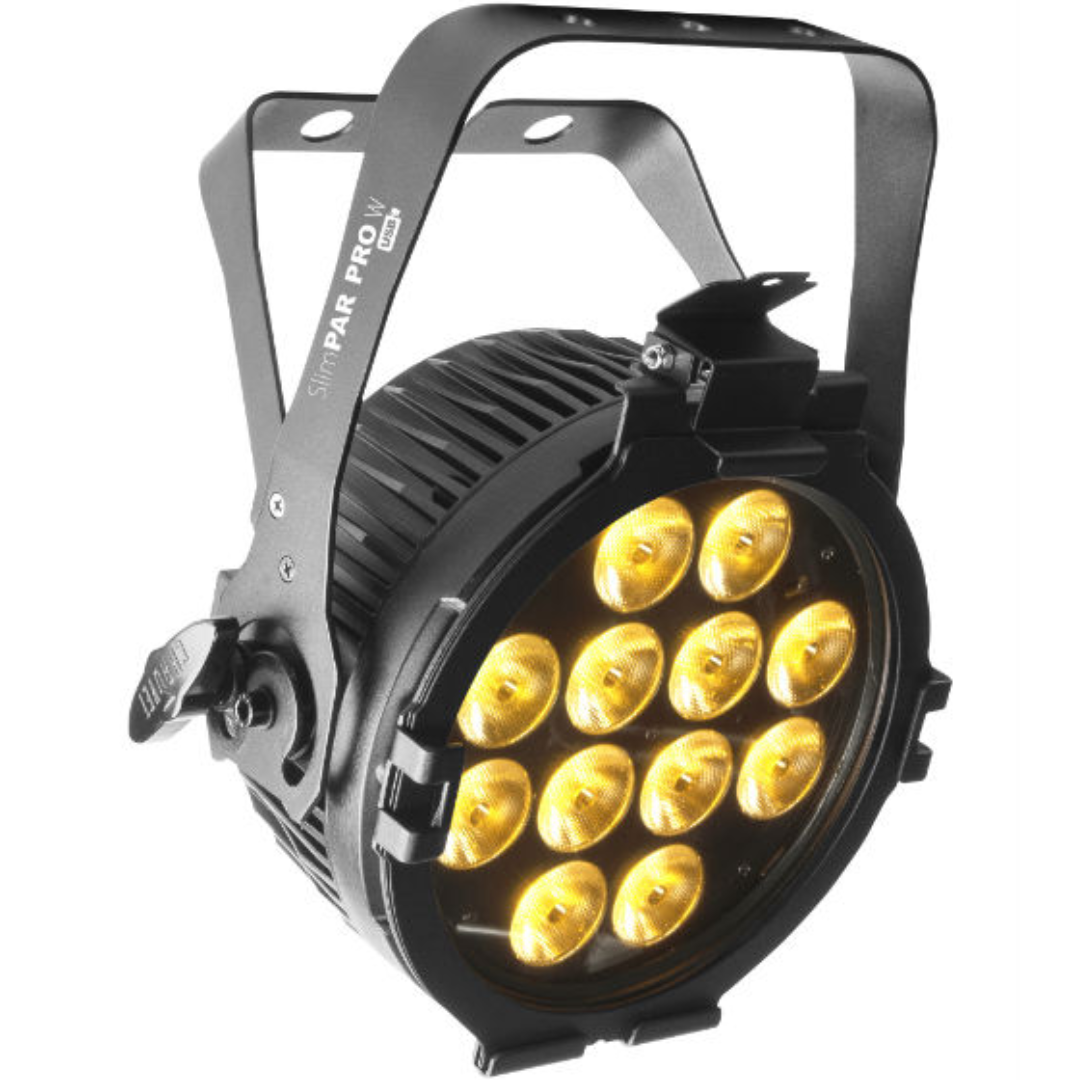

Chauvet DJ SlimPAR Pro W USB | Variable White LED Wash | D-Fi USB & powerCON Compatible

Chauvet Slim Par Pro W USB  (Chauvet DJ SlimParProWUSB)

Variable White LED Par

Chauvet DJ SlimPAR Pro W USB is a compact, variable white wash light designed for professional environments that demand precise white balance and flicker-free output. Featuring cool white, warm white, and amber LEDs, this fixture provides adjustable color temperatures for video shoots, live events, and architectural applications.

Chauvet DJ SlimPAR Pro W USB Competitive Differences

• Tri-color (CW, WW, A) LEDs for variable white control and halogen-like fades
• D-Fi USB and powerCON-compatible for wireless DMX and robust power linking

Chauvet DJ SlimPAR Pro W USB Description

The Chauvet DJ SlimPAR Pro W USB offers a clean, low-profile lighting solution for any application that requires adjustable white lighting. Its 12 tri-color LEDs (cool white, warm white, and amber) allow for seamless blending of color temperatures, ideal for matching existing lights or tuning to camera-friendly whites. With a CRI of 79 and flicker-free 1.2kHz PWM, it's optimized for use in film, broadcast, livestream, and photography environments. The fixture simulates the smooth fading of halogen filaments using built-in dimming curves, adding a natural touch to transitions and fades. Control options include DMX, Master/Slave, D-Fi USB for wireless control, and optional use of the IRC-6 remote for quick access to static colors and automated programs. Its powerCON-compatible input/output connectors ensure secure power linking, and the compact build fits easily in truss or travel bags—especially the CHS-30 VIP Gear Bag. The unit operates silently with no moving parts, making it suitable for noise-sensitive environments like studios or theaters.

Model Features

• Tri-color LED system (CW, WW, Amber) for full-range white adjustment
• Flicker-free output with 1.2kHz PWM—ideal for video
• Simulated halogen fades via built-in dimming curves
• D-Fi USB compatibility for wireless DMX or Master/Slave
• powerCON in/out for reliable power linking
• Compatible with most 7.5” barndoors
• Silent operation—no fans or moving parts
• Optional control with IRC-6 remote

Model Specifications

• DMX Channels: 3, 4, or 9
• Light Source: 12x 6W tri-color LEDs (CW, WW, Amber)
• Beam Angle: 17°
• Field Angle: 33°
• Illuminance: 3,097 lux @ 2 m | 592 lux @ 5 m
• Strobe Rate: 0–31 Hz
• PWM Frequency: 1.2 kHz
• CRI: 79
• Power and Current: 59W, 0.9A @ 120V | 58W, 0.5A @ 230V
• Power Linking: 9 units @ 120V | 17 units @ 230V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• DMX Connectors: 3-pin XLR
• Dimensions: 10 x 3.9 x 11.4 in (253 x 98 x 290 mm)
• Weight: 7 lb (3.2 kg)
• Approvals: CE, MET

What's In The Box

• SlimPAR Pro W USB fixture
• Power cord
• Gel frame
• Gel frame holder
• Warranty card
• Quick reference guide
