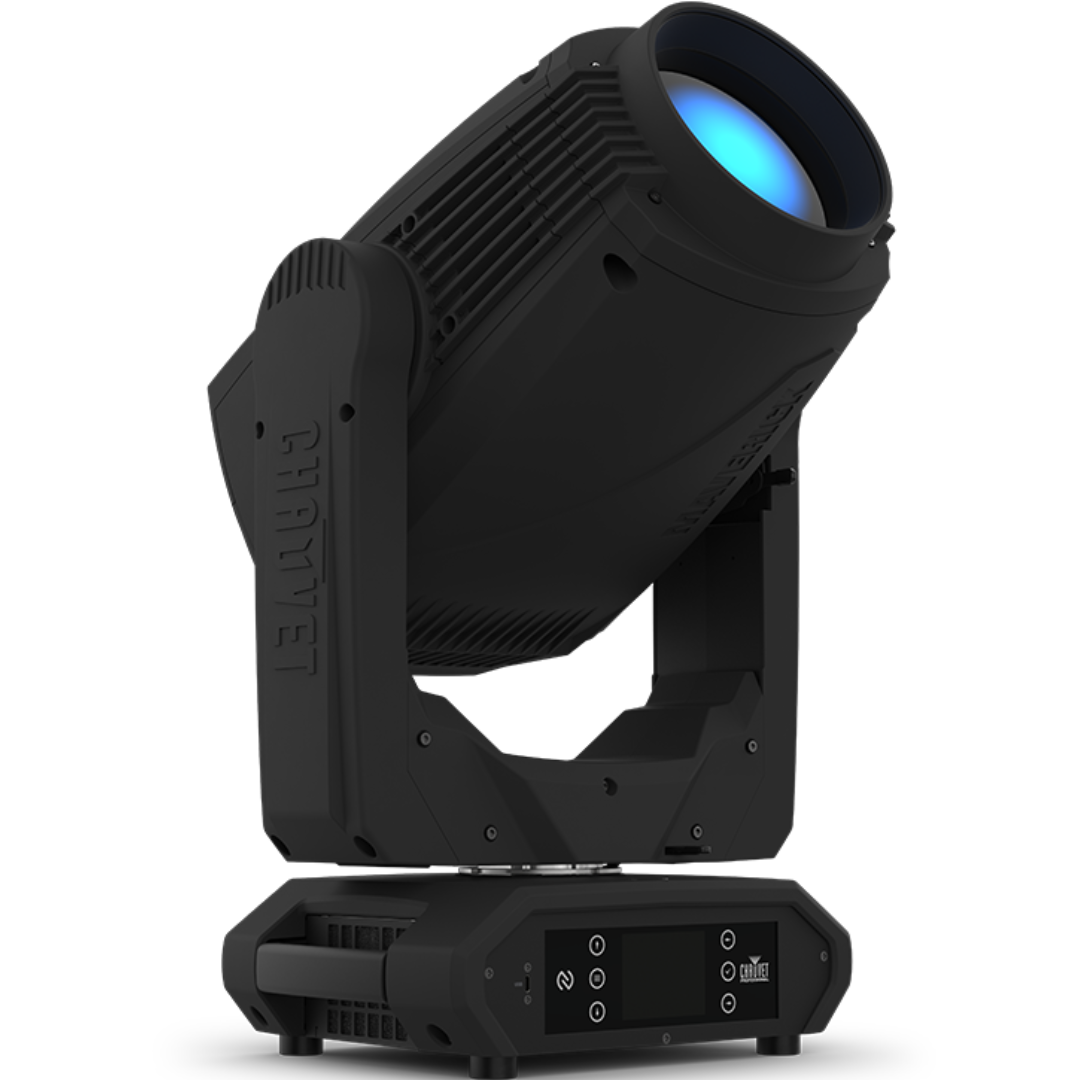

Chauvet Pro Maverick Force X Spot | 17,325 Lumens - 18:1 Zoom | Lightweight 520W LED Moving Head

LED Moving Head Spot Fixture

The Chauvet Pro Maverick Force X Spot is a feature-rich 520W LED moving head spot fixture designed for professional lighting applications where output, precision, and flexibility are critical. Compact yet powerful, it produces up to 17,325 lumens and offers a wide zoom range from 3.5° to 57.7°, all while maintaining a flat, even field across the beam. This fixture is ideal for both long and short throws in concerts, theaters, broadcast, and touring rigs.

Chauvet Pro Maverick Force X Spot Competitive Differences

• 17,325 lumen output from a 520W LED engine
• Ultra-wide 18:1 zoom range from 3.5° to 57.7°

Chauvet Pro Maverick Force X Spot Description

The Maverick Force X Spot pushes the limits of compact fixture performance. Built with a rugged aluminum and polymer housing, it packs pro-level optics and mechanics into a lightweight 44.2 lb design. A combination of a rotating and static gobo wheel enables rich pattern projection and mid-air effects, while the 5-facet prism, iris, motorized frost, and motorized zoom provide deep creative control. Color performance is bolstered by a precision-engineered CMY mixing system and a dedicated color wheel with CRI and CTB filters. This allows lighting designers to achieve a wide palette, including natural skin tones with high CRI output. Advanced 16-bit dimming ensures smooth fades, and selectable PWM frequencies up to 65,000Hz make the fixture camera-ready for broadcast environments. For control, the Maverick Force X Spot offers full flexibility with DMX, RDM, sACN, Art-Net, and CRMX wireless. Failsafe Ethernet allows data passthrough even without fixture power, and an NFC interface enables quick setup without powering the unit. Whether you're lighting a live show, stage production, or corporate event, the Maverick Force X Spot is a versatile workhorse that brings innovation and reliability to your rig.

Model Features

• 520W cool white LED engine with 17,325 lumen output
• 3.5°–57.7° motorized zoom with flat field focus
• CMY color mixing + color wheel with CRI and CTB filters
• Rotating and static gobo wheels for dynamic effects
• 5-facet prism, motorized iris, frost, and focus
• 16-bit dimming with 5 selectable dimming curves
• Selectable PWM up to 65,000Hz for flicker-free operation
• DMX, RDM, Art-Net, sACN, and CRMX wireless control
• Battery backup display with auto-rotate
• NFC configuration support

Model Specifications

• Max Output: 17,325 lumens
• Light Source: 520W cool white LED
• Zoom Range: 3.5° to 57.7°
• Pan/Tilt Range: 540°/270°
• Power Consumption: 554W @ 120V
• Input Voltage: 100–240 VAC, 50/60 Hz
• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 44.2 lb (20 kg)
• IP Rating: IP20 (dry location)

What's In The Box

• Maverick Force X Spot fixture
• Seetronic Powerkon power cable
• Omega brackets with mounting accessories
