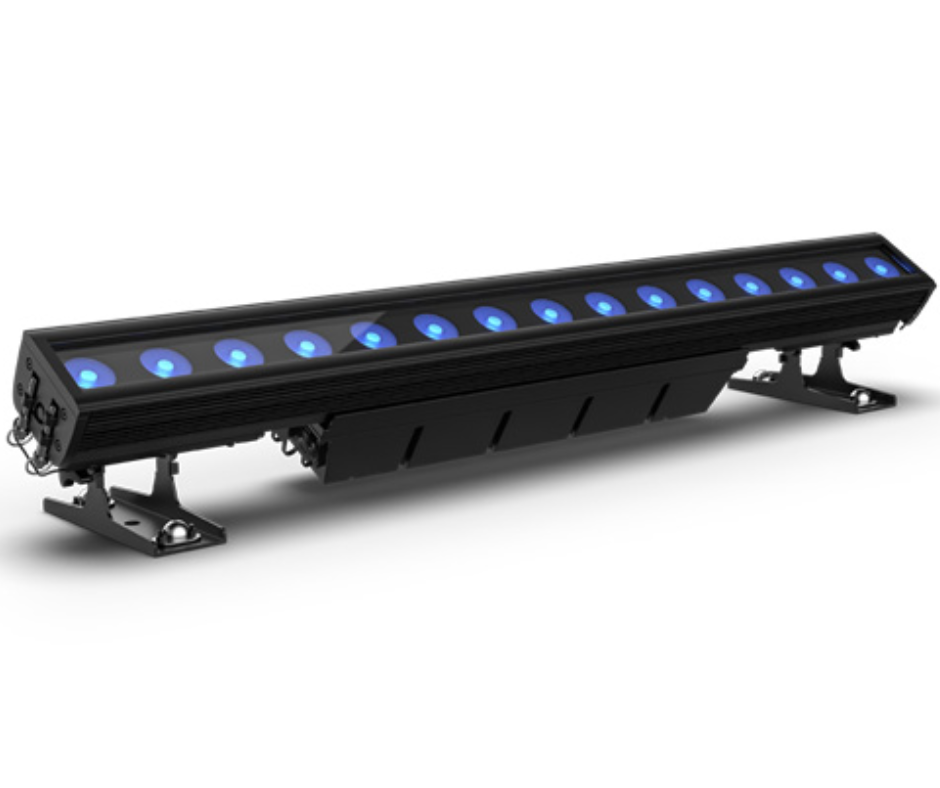

Chauvet COLORado Batten Q 15(Chauvet Pro COLORADOBATTENQ15)
COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.
Features:
Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
All environment operation with IP rated power and DMX connections
Unique end-cap and back plate mounting options
Color temperature presets, from 1800 K to 8000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy to navigate display with password protection
Specifications:
OPTICAL
Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
Color Temperature (range): 1800 to 8000 K
Installed Optics: 16°
Beam Angle (Horizontal): 15.5°
Beam Angle w/Filter (Horizontal): 41.9°
Beam Angle (Vertical): 14.7°
Beam Angle w/Filter (Vertical): 15.3°
Field Angle (Horizontal): 28.6°
Field Angle w/Filter (Horizontal): 77.9°
Field Angle (Vertical): 28.1°
Field Angle w/Filter (Vertical): 32.1°
Lumens: 6,324Lumens w/Filter: 5,547
Illuminance (total): 2399 lux @ 5 m
Illuminance w/Filter (total): 653 lux @ 5 m
Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz
CONSTRUCTION / PHYSICAL
Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
Weight: 28.8 lb (13 kg)
Exterior Color: Black
Housing Material: Aluminum alloy
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Colorado Batten Quad X
Seetronic powerKON® IP65 power cord
2 Omega Bracket
Base Plate
2 Retaining Pins
2 Safety Cable
Glare Shield
Filter
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin IP DMX Cables
