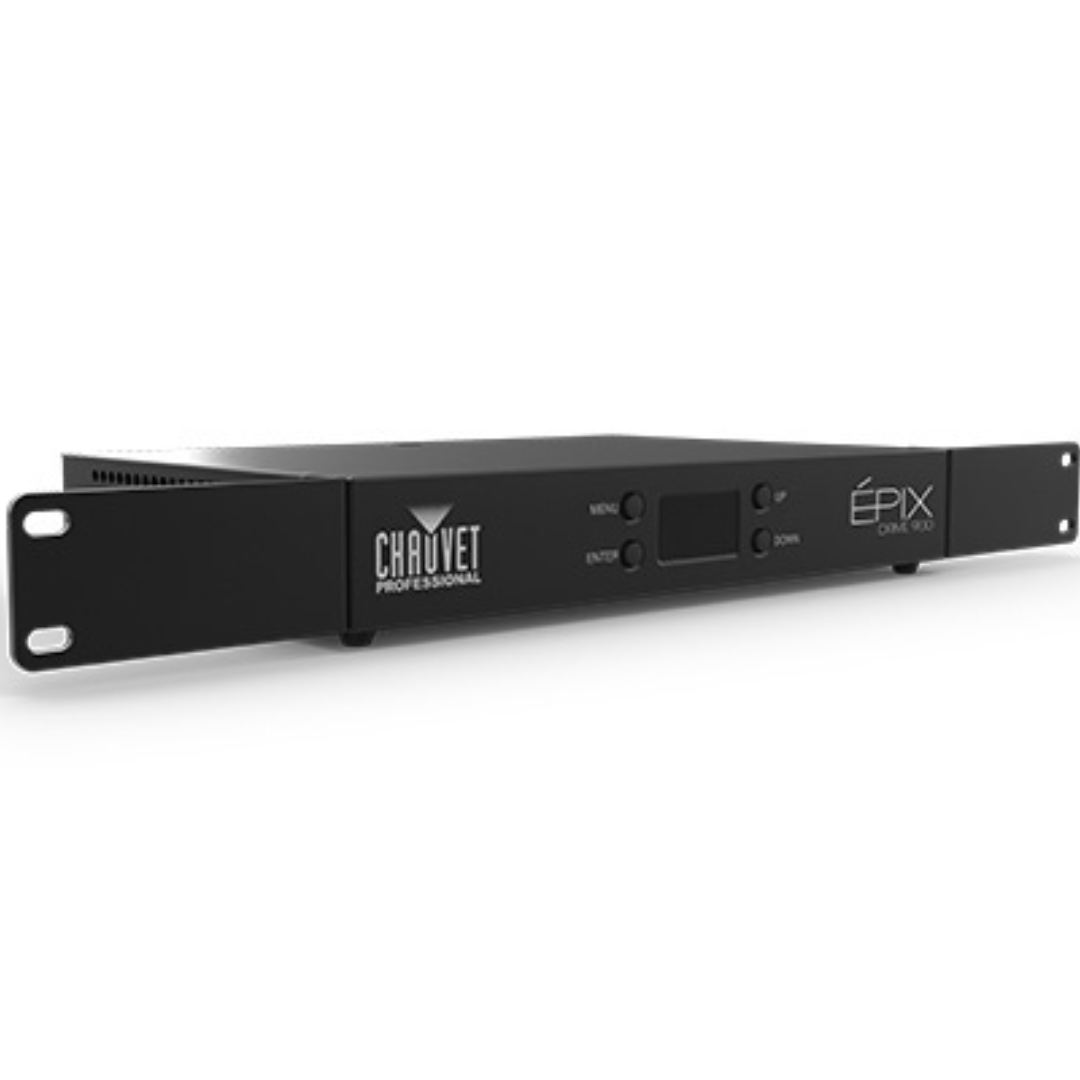

Chauvet Professional EPIX Drive 900(Chauvet Pro EPIXDRIVE900)
Details
Epix Drive 900 hosts the processing and power supply for the Epix Tour system. It supports either18 Epix Strip Tours or 6 Epix Bar Tours, or any combination of the two, with a total capacity of 900 LEDs. Epix Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options .Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the Epix lights.
Chauvet PRO Epix Drive 900 Features
The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 900 LEDs
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
Quickly and easily configure the Epix Drive 900 using the built-in OLED display
Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
Supports up to 18 Epix Strip Tours or 6 Epix Bar Tours
Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
Chauvet PRO Epix Drive 900 Specifications
Construction / Physical
Dimensions (with rack ears): 19.02 x 7.60 x 1.97 in (483 x 193 x 50 mm)
Dimensions (without rack ears): 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm)
Weight: 5.42 lb (2.46 kg)
Weight (shipping weight): 7.72 lb (3.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Device Outputs (4-pin XLR): 1
Physical Linking: 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
Data Connectors: Neutrik etherCON
Cable Length (power): 5 ft (1.5 m)
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 6 Art-Net/sACN Universes
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
Maximum Load: 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 Degree. F to 113 Degree. F (-20 Degree. C to 45 Degree. C)
What's Included
Epix Drive 900
Neutrik powerCON power cord
Rack ears (2)
Bag of rack ear mounting screws
Rubber feet (4)
