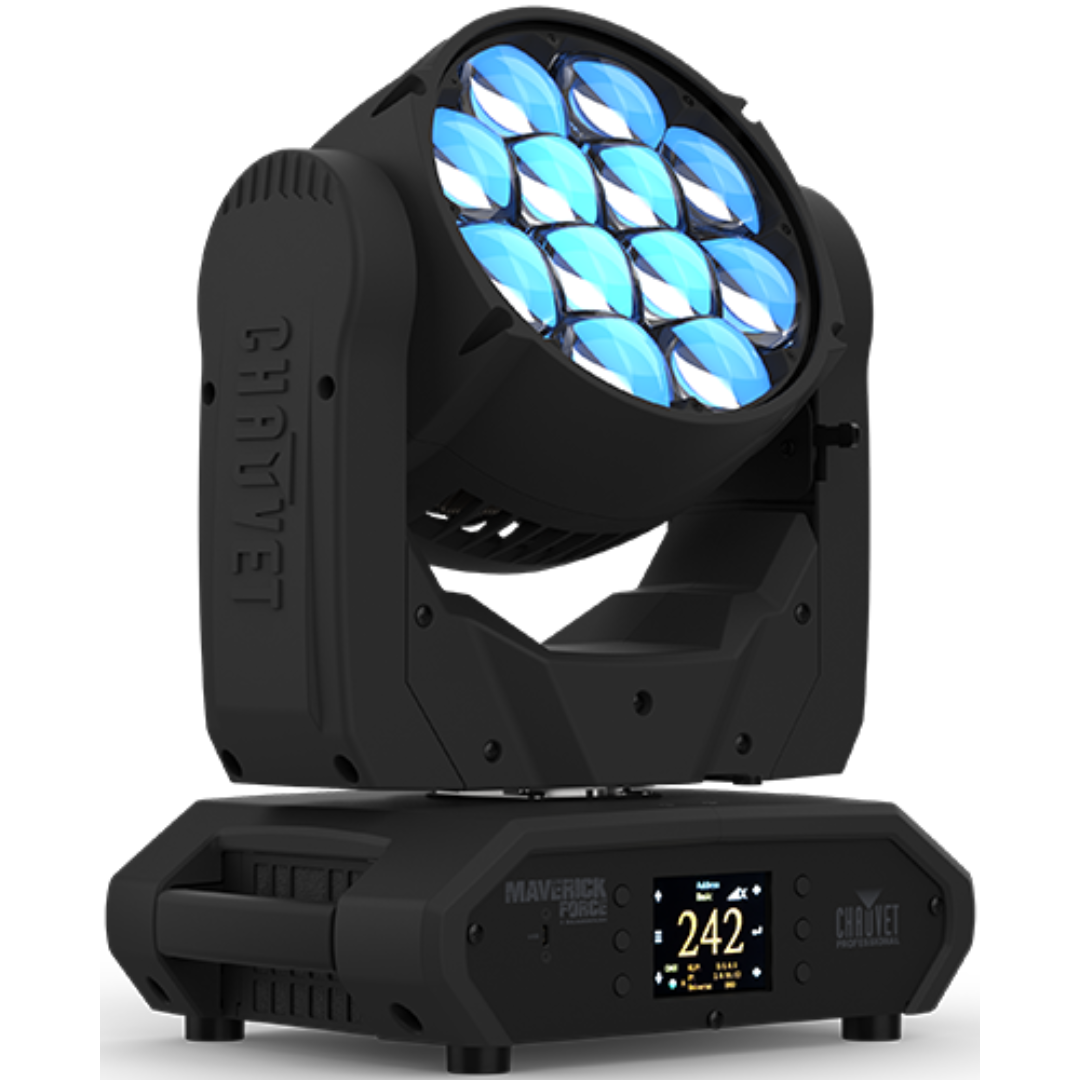

Chauvet Pro Maverick Force 2 Beam Wash

Chauvet Professional Maverick Force 2 BeamWash  (Chauvet Pro Maverick Force 2 Beam-Wash)

The CHAUVET PROFESSIONAL Maverick Force 2 BeamWash is a light, bright, fast RGBW LED yoke wash fixture with pixel mapping and zoom. The Maverick Force 2 BeamWash incorporates the latest LED and optical technologies to project the narrowest beams and deliver the deepest aerial washes. Foreground and background colors combine for atmospheric effects instantly with its built-in virtual gobo wheel. The fixture has flawlessly even output, full-pixel mapping, and smooth 16-bit fades.

FEATURES:

Fully featured RGBW LED yoke wash fixture with pixel mapping
and zoom
16-bit dimming of master dimmer as well as individual colors for
smooth control of fades
Virtual Color wheel with instantaneous access to a wide array of
options
Built in virtual gobo wheel with background colors for impressive
atmospheric effects
Fast movement of pan, tilt, and zoom
Quiet operation for a wide range of installation situations
DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full
flexibility
RDM Enabled for remote addressing and trouble shooting
3.7° to 44.1 zoom range for variable beam sizes
User selectable calibrated white for 7500 K at full output
True 1 compatible power input
USB-C software update port
Battery backup display with auto rotate depending on fixture
orientation
Three setup menu presets and preset sync for cross loading to
multiple like fixtures for easy shop setup

SPECIFICATIONS:

Construction / Physical
Dimensions: 12.91 x 12.60 x 17.09 in (328 x 230 x 434 mm)
Weight: 29.6 lb (13.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections
Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors
in/out
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
DMX Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
Art-Net/sACN Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or
146ch
DMX Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
DMX Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
Art-Net/sACN Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel): 36ch, 48ch,
96ch
Modes/Personalities: 8 personalities (20ch, 25ch, 68ch, 122ch or
146ch 8ch-36ch, 20ch-48ch, 26ch-96ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 620 W, 5.23 A @ 120 V, 60 Hz
Power and Current: 603 W, 2.96 A @ 208 V, 60 Hz
Power and Current: 600 W, 2.68 A @ 230 V, 50 Hz
Breaker Size: F10 A, 250 V
Certifications / Qualifications
CE, MET, FCC, CB, UKCA
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Maverick Force 2 BeamWash
Seetronic Powerkon IP65 power cord
2 140Dmm Omega brackets with mounting hardware
Optical
Light Source: 12 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours
life expectancy
Color Temperature (range): 2700 to 8000 K
Beam Angle: 3.7° to 33.6°
Field Angle: 5.8° to 44.1°
Cutoff Angle: 6.5° to 48.6°
Zoom Range: 3.7° to 44.1°
Lumens – Source: 10,800
Lumens – Output: 9,183
Illuminance (3.7°) : 41,355 lux @ 5 m
Illuminance (45.1°) : 1,267 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz,
15000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4
Optional Accessories
Professional Clamps : CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic® Powerkon Extensions
UPLOAD 08 software uploader
Micro T-1 TRX G6 WDMX Transceiver
FLIGHT CASE
