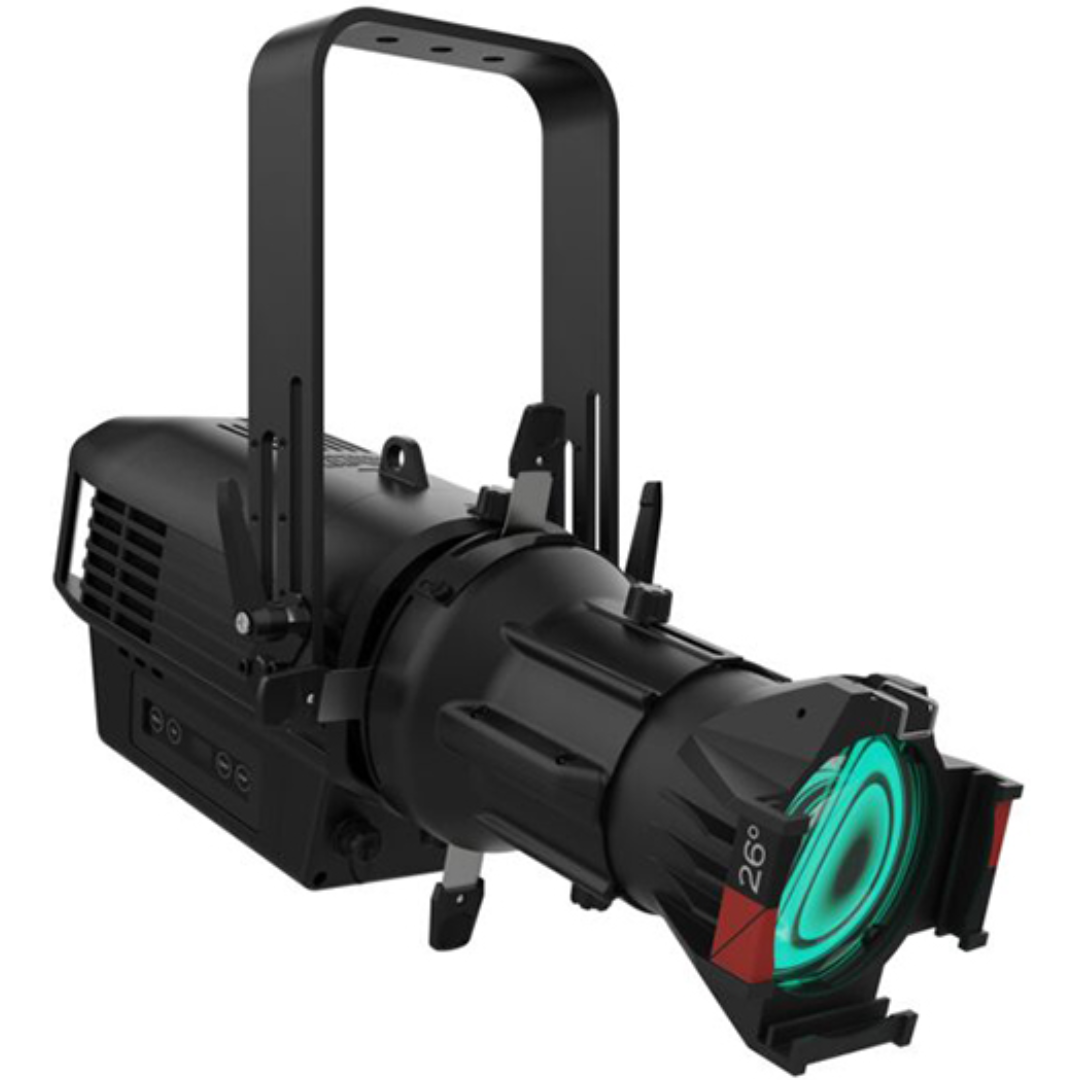

Chauvet Pro Ovation Reve E-3 IP

Chauvet Professional Ovation Réve E-3IP  (Chauvet Pro Ovation Réve E-3-IP)

Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.

FEATURES:

Full-spectrum, high-power LED ERS-style lighting fi xture
for theatre, fi lm, and production
Fully IP65 rated for seasonal use indoors or out
Linear color temperature presets from 2800 K to 8000 K
with high CRI and CQS
Virtual color wheel with color matched to popular gel
colors
+/- Green adjustment and emulated red-shift via DMX or
on-board control
RDM (Remote Device Management) for added fl exibility
Adjustable PWM (Pulse Width Modulation) to avoid
fl ickering on camera
Virtually silent operation for use in studio, fi lm, and
theatre applications
Ultra-smooth 16-bit dimming curves and speeds to
complement any lighting scheme.
Innovative adjustable yoke for mounting in low clearance
areas
Direct power/data connection and control options for the
Ovation GR-1 gobo rotator
USB port for fi xture software updates

SPECIFICATIONS:

OPTICAL
Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal
blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours
life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 6333 K
Beam Angle (w/19° lens): 17.5°
Beam Angle (w/26° lens): 25°
Beam Angle (w/36° lens): 33.4°
Beam Angle (w/50° lens): 20.2°
Field Angle (w/19° lens): 20°
Field Angle (w/26° lens): 27.5°
Field Angle (w/36° lens): 37.5°
Field Angle (w/50° lens): 55.9°
Lumens (w/19° lens): 9,785
Lumens (w/26° lens): 11,538
Lumens (w/36° lens): 11,828
Lumens (w/50° lens): 11,180
Lumens (w/15°–30° lens): 12,057
Lumens (w/25°–50° lens): 14,355
Illuminance (w/5° lens): 31,856 lux @ 5 m
Illuminance (w/19° lens): 5,104 lux @ 5 m
Illuminance (w/26° lens): 3,125 lux @ 5 m
Illuminance (w/36° lens): 1,822 lux @ 5 m
Illuminance (w/50° lens): 779 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 9,292 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 2,671 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 3,710 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 1,527 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz,
6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28.6 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
CONSTRUCTION/PHYSICAL
0.84 x 12.72 x 19.75 in (529.3 x 323 x 501.7 mm)
Weight: 24.8 lb (11.3 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic
Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1,
14ch2, 18, HSV)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units
@ 230 V
Power and Current: 360 W, 3.20 A @ 120 V, 60 Hz
Power and Current: 341 W, 1.69 A @ 208 V, 60 Hz
Power and Current: 338 W, 1.52 A @ 230 V, 50 Hz
CERTIFICATIONS/QUALIFICATIONS
CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT’S INCLUDED
Ovation Reve E-3 IP
Seetronic Powerkon power cord
Ovation Metal Gobo Holder
Soft Focus Filter
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
TRUE1 Style Power Extension Cables
5-pin IP65 DMX Cables
RDM2go
Ovation Glass Gobo Holder
Ovation Metal Gobo Holder
Ovation Iris
Ovation GR-1 IP Gobo Rotator
USB Jump Drive
