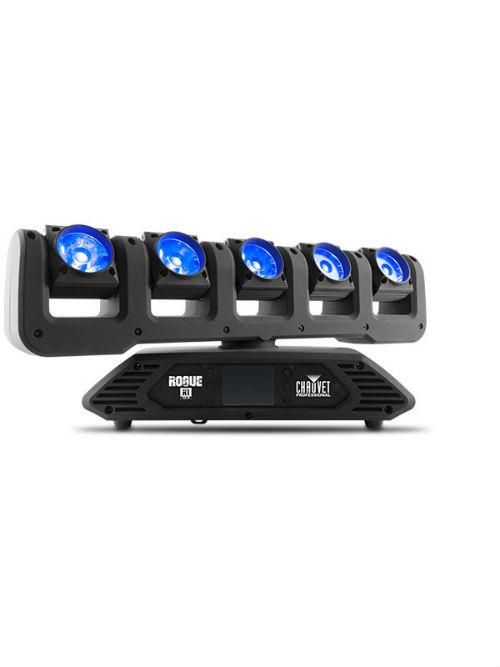

Chauvet Professional Rogue R1-FXB
(Chauvet Pro Rogue R1 FX-B)
ROGUE R1 FX-B shakes things up, five times over. It orchestrates an infinite rotation of both pan and tilt for its 5 individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs. Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects. Control is achieved with DMX, Art-Net, sACN, or KlingNet.
Features:
Fully featured RGBW LED yoke effect beam fixture with pixel mapping
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in color and tilt macros for quick design possibilities
Continuous movement of pan and tilt functions
Individual control of all five heads for movement and output
Quiet operation for a wide range of installation situations
DMX , WDMX, sACN, Art-Net, and Kling-Net control for full flexibility
7° beam angle to create crisp and defined areal beam effects
Specifications:
OPTICAL
Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
Installed Optics: 5°
Field Angle: 11°
Illuminance : 5,361 lux @ 5 m
DYNAMIC EFFECTS
Pan and Tilt: 540°/540°
Pan and Tilt Ranges: 540°, 360°, 180° pan/540°, 270°, 180° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Move-in-Black: Yes
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
Weight: 24.2 lb (11 kg)
Exterior Color: BLACK
Housing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, Kling-Net, DMX, sACN
DMX Channels Single Mode: 18, 25, or 47
DMX Channels Dual Mode – Function: 9, 17, 23
DMX Channels Dual Mode – Pixel: 15 or 20
Art-Net Channels Single Mode: 18, 25, or 47
Art-Net Channels Dual Mode – Function: 9, 17, 23
Art-Net Channels Dual Mode – Pixel: 15 or 20
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 15 units @ 208 V; 18 units @ 230 V
Power and Current: 207 W, 1.68 A @ 120 V, 60 Hz
Power and Current: 200 W, 0.938 A @ 208 V, 60 Hz
Power and Current: 197 W, 0.876 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
