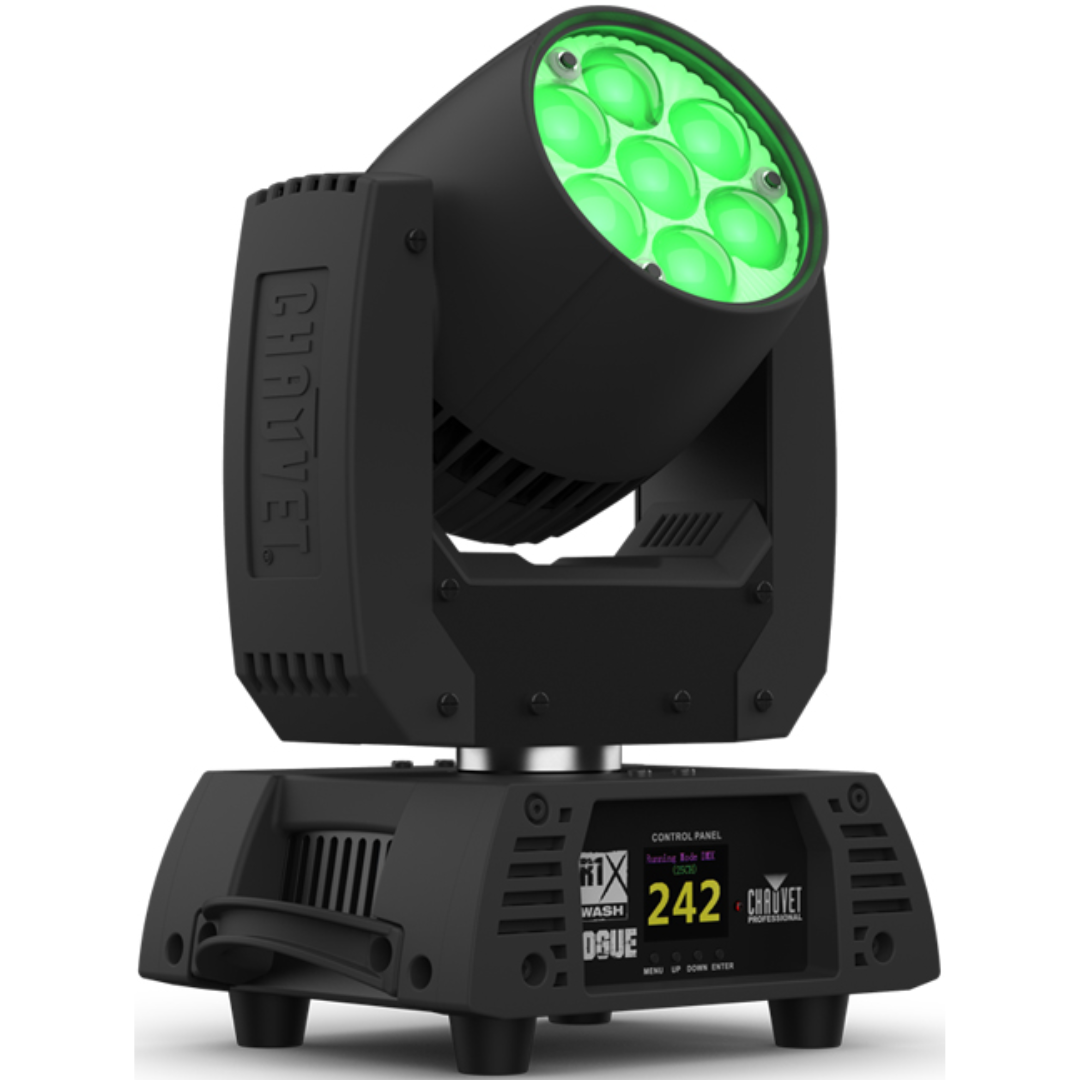

Chauvet Rogue-R1X-Wash(Chauvet Pro Rogue R1X Wash)
RGBW LED Moving Wash Light
Chauvet Pro Rogue R1X Wash is a compact, full-featured LED yoke wash fixture delivering vibrant color mixing, fast movement, and flexible control options. Designed for both touring and installation use, it packs performance and value into a lightweight housing that’s perfect for stages, events, and broadcast environments.
Chauvet Pro Rogue R1X Wash Competitive Differences
7x 25W RGBW LEDs with calibrated white and color temperature presets
Wide 7.9° to 62.7° motorized zoom range with smooth, quiet pan/tilt
Chauvet Pro Rogue R1X Wash Description
The Chauvet Pro Rogue R1X Wash is built for speed, reliability, and visual impact. Powered by seven 25W quad-color RGBW LEDs, it outputs over 2,400 lumens with smooth color mixing and excellent blending via its unique bubble lens design. With selectable PWM rates up to 15,000 Hz and user-defined white calibration (up to 10,000K), it’s a strong choice for camera-friendly applications such as livestreams, houses of worship, or broadcast events.
Its motorized zoom allows tight beams for aerial effects or wide washes for even stage coverage—ranging from a narrow 7.9° to a wide 62.7° spread. Additional features include fast and fluid 540° pan / 230° tilt movement, electronic dimming with 6 dimmer curves, and built-in automated programs for standalone operation.
Control options include RDM, 3- and 5-pin DMX, and four selectable DMX channel modes (14–21 channels) to match programming needs. Compact yet powerful, the R1X Wash fits easily into rigging setups thanks to its lightweight design and included omega bracket.
Model Features
7x 25W RGBW quad-color LEDs (50,000 hr life)
Motorized zoom range: 7.9° to 62.7°
Calibrated white mode (user-selectable up to 7500K)
Selectable PWM (600 Hz to 15,000 Hz) for flicker-free camera use
16-bit dimming of master and individual colors
3- and 5-pin DMX in/out with RDM support
Built-in auto programs and color temp presets
Omega mounting bracket included for truss or floor setups
Model Specifications
Max Output: 2,455 lumens
Zoom Range: 7.9° to 62.7°
Pan/Tilt: 540° / 230°
Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
