Chauvet Pro Strike V | RGBW Pixel-Tilting Strobe/Wash - 19,589 Lumens | Dual-Layer LED with Frost & IP65 Rating

CHAUVET STRIKE V  (Chauvet Pro StrikeV)

Outdoor-Rated Pixel Strobe/Wash Hybrid

The Chauvet Pro Strike V redefines high-impact lighting with an advanced strobe/wash hybrid that merges dual-layer LED control, eye-catching pixel effects, and motorized tilt in a fully IP65-rated form. Ideal for large stages, festivals, and rugged outdoor events, it brings together extreme output and creative flexibility in one robust fixture.

Chauvet Pro Strike V Competitive Differences

• Dual-layer RGBW LEDs with 48 individually controllable pixels and 180° tilt
• Electronic frost plate instantly alters beam angle for atmospheric wash effects

Chauvet Pro Strike V Description

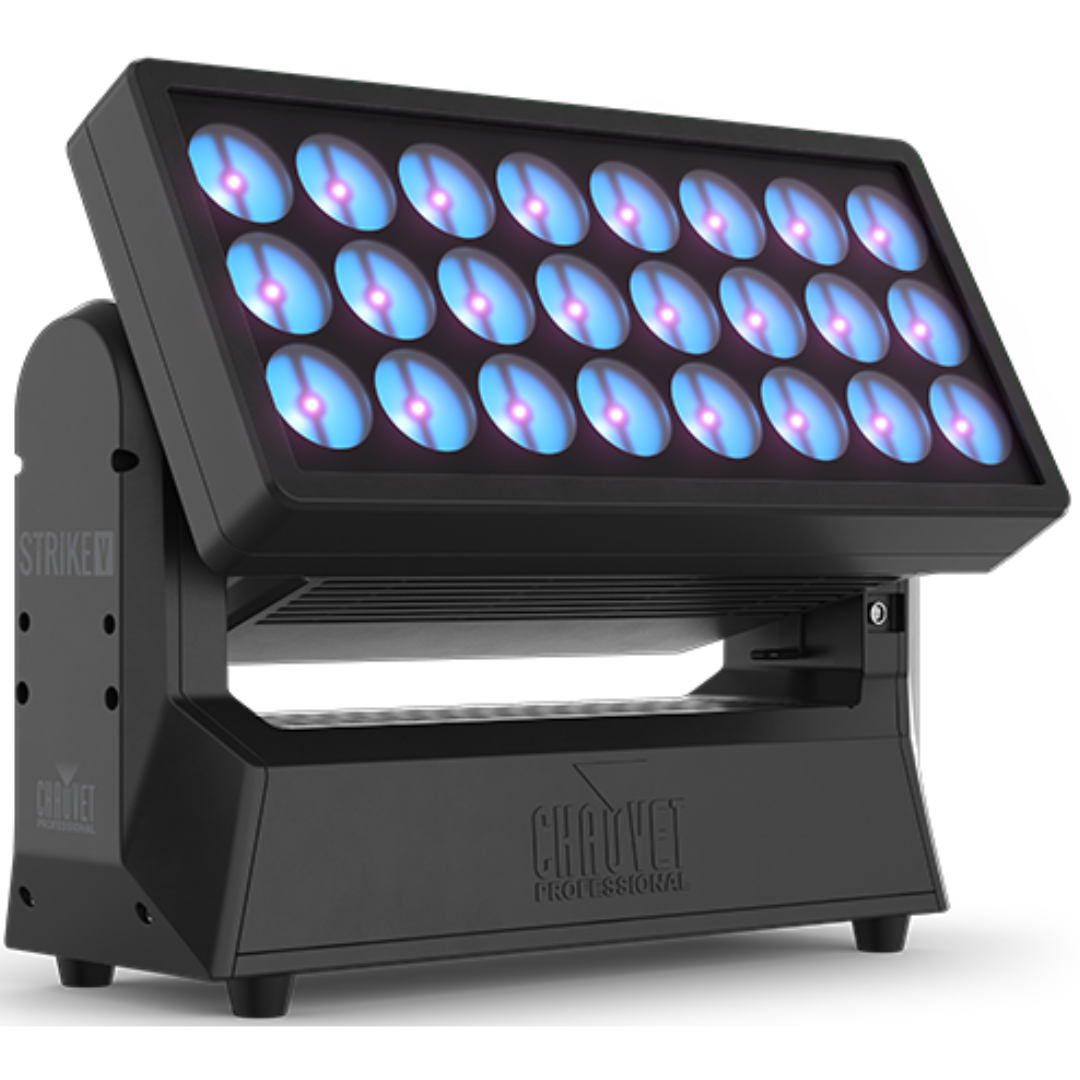

The Strike V takes the strobe/wash category to new levels of performance with over 19,000 lumens of output, smooth 16-bit dimming, and advanced pixel-mapped visuals. Designed for high-energy shows, the fixture features two layers of LEDs: a top plate for eye-candy and a bottom plate for punchy beams and floods—both individually controllable for layered FX. A motorized 180° tilt mechanism ensures dynamic movement on stage, while the electronically controlled frost system widens the beam angle on demand, transforming strobe bursts into wide, immersive color washes. The included stealth filter hides diodes when not in use, keeping your rig clean and camera-ready. Connectivity and control options are robust, with DMX, sACN, Art-Net, RDM, and multi-mode pixel control supporting complex designs. The magnesium diecast housing is built to handle rain, heat, and haze without compromise—making the Strike V a workhorse for the most demanding live environments.

Model Features

• Dual-layer LED system: 24x 6W (top) + 24x 50W (bottom) RGBW LEDs
• Motorized 180° tilt for dramatic movement and aiming
• Variable electronic frost transforms beam from 9.9° to 50.3°
• Individually controllable 48-pixel layout with advanced mapping
• 16-bit master dimming and PWM selectable up to 64,000 Hz
• Stealth filter included for discreet appearance when off
• OLED display, USB update port, and failsafe Ethernet passthrough
• Multi-layer pixel and movement control via DMX, sACN, Art-Net, Kling-Net

Model Specifications

• Max Output: 19,589 lumens
• Zoom/Beam Range: 9.9° to 50.3° (with frost)
• Tilt Range: 180°
• Illuminance (narrow): 16,779 lux @ 5 m
• Power Consumption: 747W @ 120V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• DMX Modes: 29–314 channels (multiple pixel and dual modes)
• Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
• Weight: 36 lb (16.3 kg)
• IP Rating: IP65 (temporary outdoor/wet use)

What's In The Box

• STRIKE V fixture
• Seetronic PowerKon IP65 power cord
• Omega bracket
• Stealth filter
