dB Tech Opera 10 | 10in - 128dB

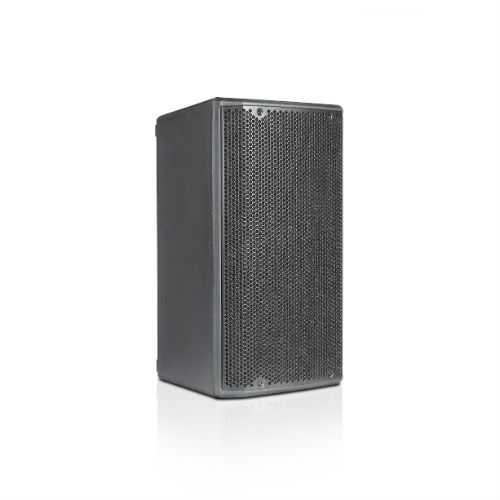

dB technologies Opera 10  (dB Tech Opera10)

OPERA 10
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Features:
1200 W PEAK POWER
600 W RMS POWER
NEWLY DESIGNED ASYMMETRICAL HORN
ADVANCED DSP WITH FIR FILTERS
2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
8 EQ PRESETS
FRESH FULL GRILLE DESIGN
STAGE MONITOR USE

Specifications:

Speaker Type 2-Way Active Speaker

Acoustical data
Frequency Response [-10dB] 58 - 20.000 Hz
Frequency Response [- 3dB] 70 - 19.600 Hz
Max SPL 128 dB
HF1" Exit, 1.4 v.c.
Type HF Compression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity 85° (+ 25°/-60°)
Horn Asymmetrical Horn
LF10", 2" v.c.

Amplifier
Amp Technology Amp SMPS Power supply dual range
Amp Class Class D
RMS Power 600 W
Peak Power 1200 W

Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 KHz
System Presets Rotary Encoder (8 Presets)
CrossOver Frequency 2000 Hz
Limiter Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters

Input
Signal Input 1 x Combo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output 1x XLR Male (CH1 Link/Mix OUT)
Selectable

Mechanics
Housing Polyproylene
Grille Full grille
Handles 1 on left Side, 1 on Top
Rigging Points 2 X M10 on Top + 1x M10 on Back
Pole Mount D 36 mm
Angles up Monitor use 45°
Width 300 mm (11.81 in)
Height 552 mm (21.73 in)
Depth 301 mm (11.85 in)
Weight 12.3 kg (27.12 lbs)
