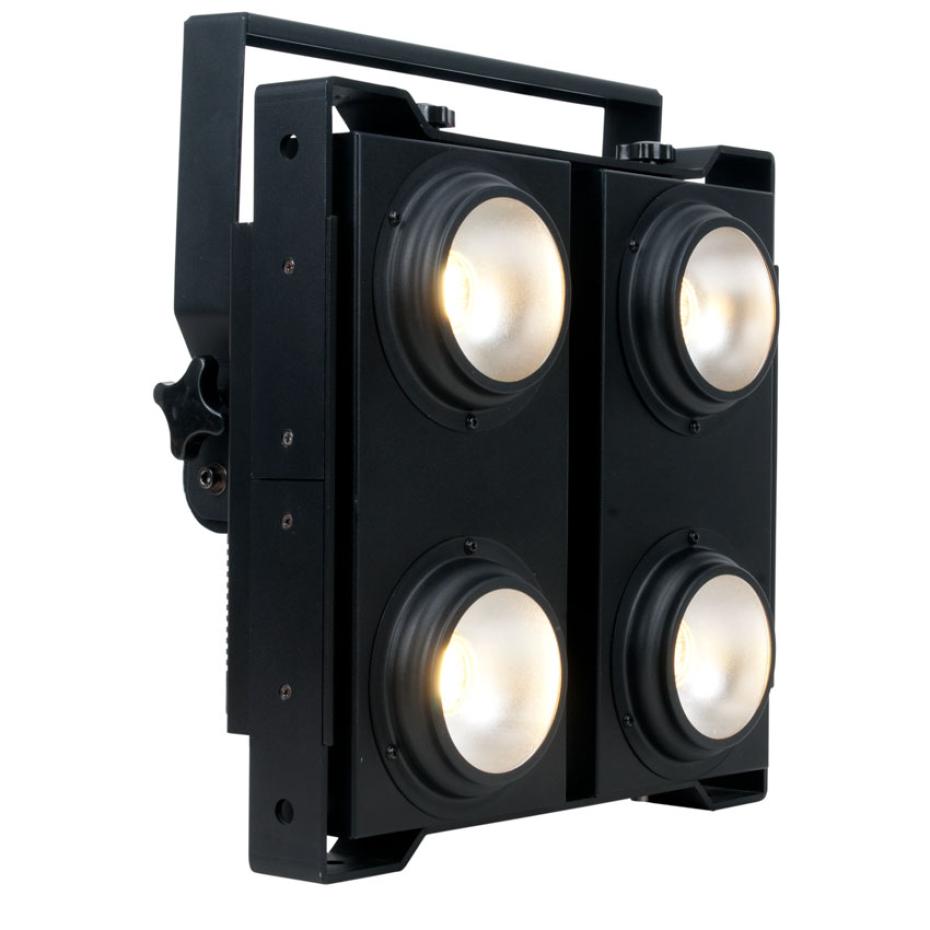

Elation Professional Cupix Blinder ww-4
(Elation CUE242)
The new CUEPIX Blinder WW4™ features (4) long life 100W Warm White 3,200K COB LEDs, a 62° beam angle, RDM (Remote Device Management), individual control of each COB module, manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
FEATURES
High Power Long Life Warm White COB LEDs
62° Beam Angle / 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
SOURCE
(4) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
12,300 LUX 1,143 FC @3.3’ (1M) / 3,200K
EFFECTS
Strobe
Dimming : 0% - 100% of Each COB Module
Variable Dimming Curves
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)
4 Button Control Panel and LCD Menu Display
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In/Out
SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 6.9" (174mm)
Horizontal Height: 17.4" (441mm)
Weight: 21.0 lbs. (9.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
427W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Integrated Yoke and Side Mounting Brackets
Working Position: Any (360°)
INCLUDED ACCESSORIES
(1) Power Cable
