Elation TVL PANEL DW

Elation Professional TVL PANEL-DW  (Elation TVL-PANEL DW)

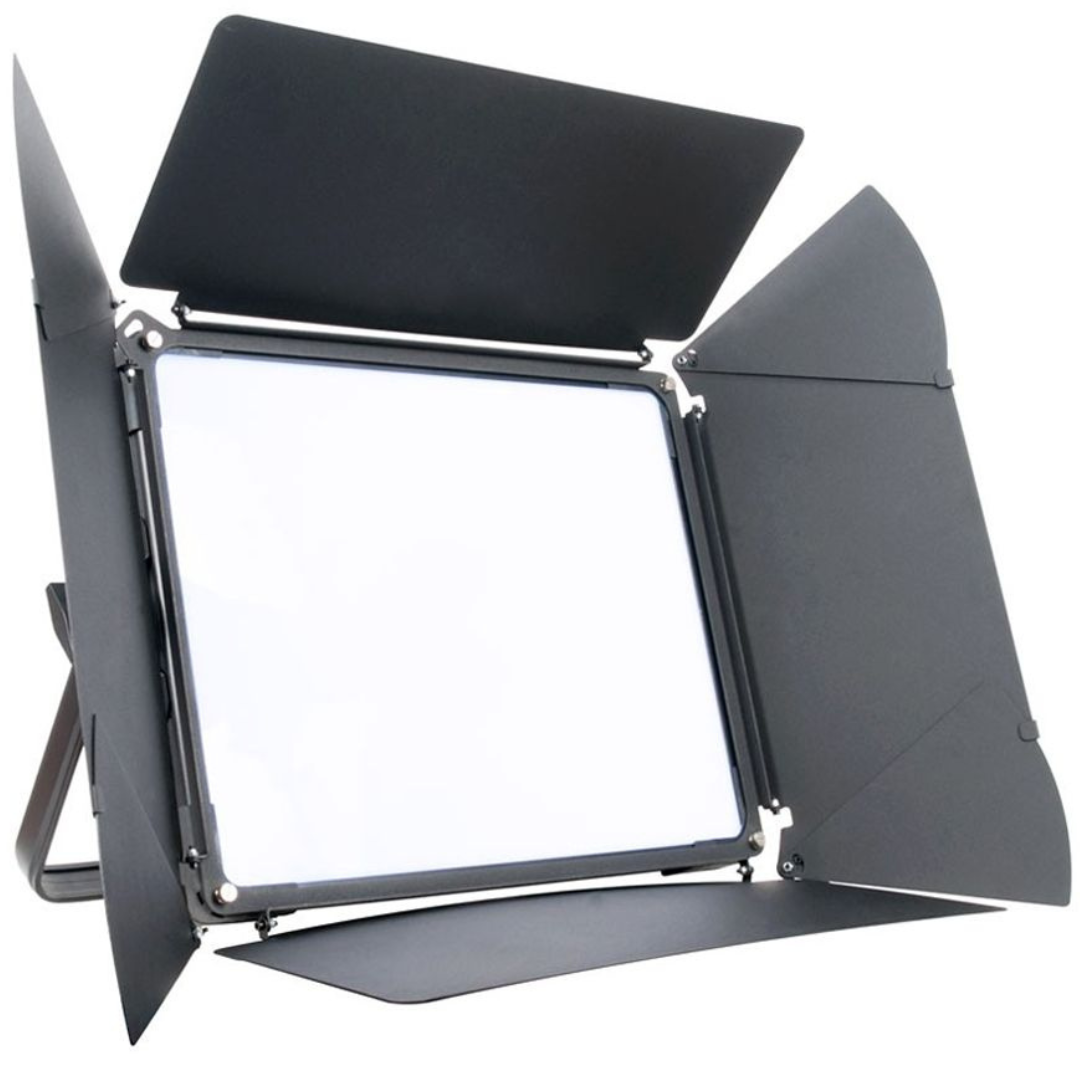

The TVL PANEL DW™ from Elation Pro Lighting is a soft light panel luminaire featuring 480x cool white and 480x warm white LEDs. It offers a nice featureset, including: 115° beam angle, 8-leaf adjustable / removable barn doors, adjustable linear white color temperature range (3,200K - 5,800K), smooth 16-bit dimming curve mode effects, discrete dimmer and color temperature manual control rotary dials, adjustable LED refresh-rate frequency and gamma brightness for flicker-free use in TV and FILM applications, 5-pin DMX, RJ45 etherCON (Art-NET), and powerCON® TRUE 1 connections, 4-button menu control panel, plus a 180° reversible LCD menu display. Also, there's an optional multi-voltage universal auto-switching power supply (100-240v), as well as SNAPGRID light control grid available (both sold separately).

Includes:
TVL Panel DW unit
Barn Door
Barn Door Safety Cable
Fixture Safety Cable
powerCON TRUE1 Cable

Features:
Dynamic White 150° Beam TVL Panel Soft Light
Linear White Color Temp Range (3000K - 5400K)
Smooth 16-bit Dimming and Dimming Curve Effects
Dimmer and Color Temperature Rotary Control Dials
Flicker-free Operation for TV and FILM use
Includes 8-Leaf Adjustable / Removable Barn Doors
Optional DC24 V External Battery Available (sold separately)
Elation Pro Lighting TVL-PANEL-DW

Specifications:
SKU: TVL481
Source: 480x Cool White and 480x Warm White LEDs
Photometric Date:
> 95CRI | 13,000 Total Lumens
1,117 LUX 104 FC @6.6ft (2 m) Full ON 4,200K > 95CRI
1,105 LUX 103 FC @6.6ft (2 m) CW 5800K > 95CRI
1,076 LUX 100 FC @6.6ft (2 m) WW 3200K > 97CRI
Effects:
Selectable Dimming Curves and Electronic Strobe
Linear Variable White Color Temp Presets
Color:
Cool White / Warm White
Linear Variable Color Temperature (3,000 - 5400K)
Control/Connections:
Multiple DMX Channel Modes
Four Button Control Panel
(2) Rotary Control Dials (Dimmer and Color Temperature)
180° Reversible LCD Menu Display
5-pin DMX In/Out
powerCON TRUE 1 Power In
24 VDC Input (optional external battery - sold separately)
Electrical/Thermal:
AC 100-240 V - 50/60 Hz
Max Power Consumption: 199 W
5 °F to 113 °F (-15 °C to 45 °C)
