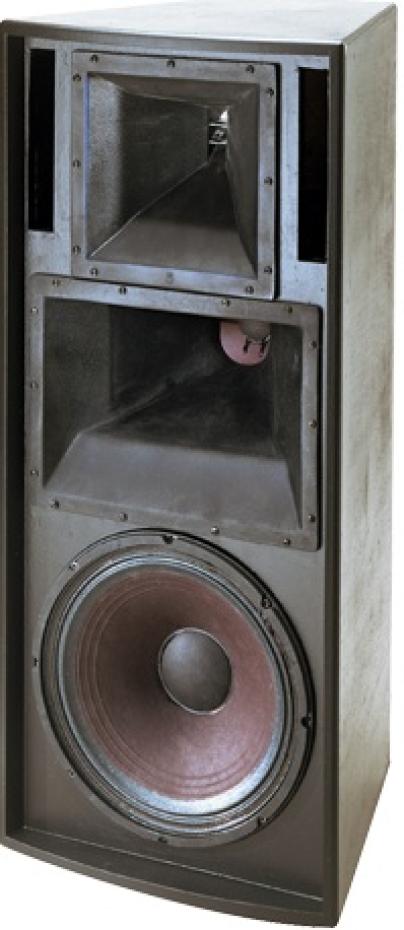

Electro-Voice QRx 153/75

EV QRx 153/75 (Electro-Voice QRX153-75)

Compact 15“ three-way

The QRx-153/75 is a 15“, three-way, full-range bi-amp only loudspeaker system. Featuring a horn loaded mid range section with asymmetrical horn, the QRx-153/75 has an articulated “hi fi“ sound.

Designed for Club Sound, Concert Sound, House of Worship, Pro Music, and other applications.
Three-way, high-output, full-range loudspeaker
Biamp only
Solid bass to 42 Hz (-10dB)
Vented LF enclosure
Asymmetrical CD horn aimed downward by 10°
3” HF voice coil (titanium diaphram)
Protection circuit for HF driver
Trapezoidal cabinet (15° per side) for tightpack situations
Comes with L-track hardware and single-stud ancra fittings

Chassis Size 381 mm (15")
Color Black
Color White
Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Three-Way
Frequency Response (-3 dB) 43 - 18 Hz
Frequency Response (-10 dB) 42 - 20 Hz
Internal Crossover Yes
Max. SPL/1m (calc) 130 dB
Coverage
(Nominal -6 dB) H° 75 °
Coverage
(Nominal -6 dB) V° 50 °
Rotatable Horn No
LF Transducer DL15X
Low Frequency Power Handling (Continuous/Program/Peak) 400 Watts
LF Nominal Impedance 8 Ω
Mid/High Frequency Power Handling (Continuous/Program/Peak) 150 Watts
MF Transducer MF8 8-inch MF
HF Transducer DH7 3-inch HF
Flying Yes
Outdoor No
Height 1240 mm (48.82")
Width 467 mm (18.39")
Depth 485 mm (19.09")
Weight Net 47 kg (103.62 lbs)
