Enttec 8PXW60-F-12-B | RGBW Pixel LED Tape

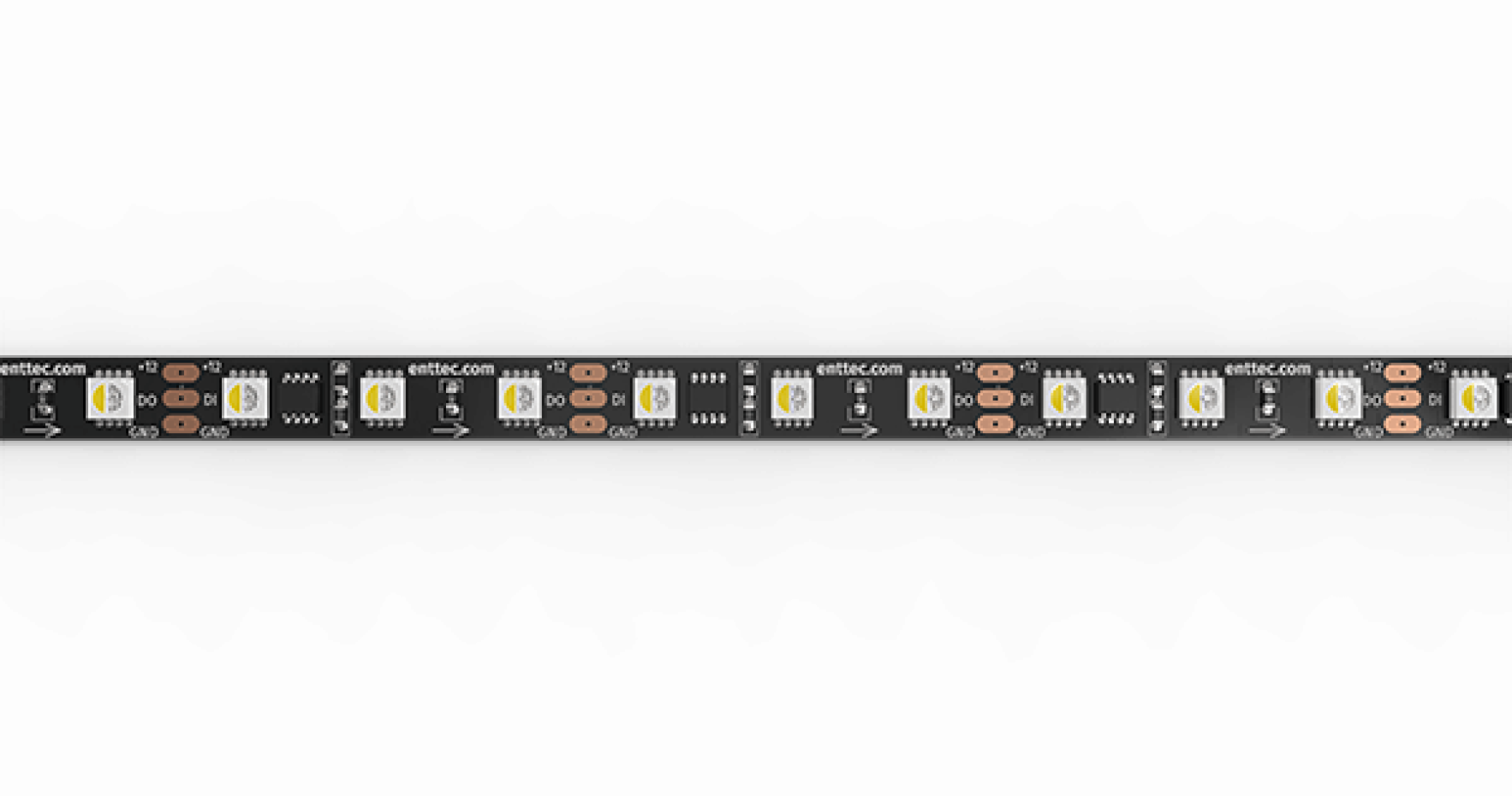

ENTTEC 8PXW60-F-12B  (Enttec Black Pixel Tape RGBW - (12V) 5M)

ENTTEC 8PXW60-F-12-B is a 12v 60 LED per meter
addressable RGBW LED Pixel Strip allowing
individual color control over clusters of 3 RGBW
LED’s (20 per meter), well suited to professional
architectural and entertainment purposes, used to
display smooth animated graphics achieving soft
pastels and saturated colors on a large scale.
Cut and join into any conceivable shape.
Its black PCB makes it perfectly suited for direct
view applications where the black PCB will be lost
in the darkness when all pixels are off.
It’s fast 1.2KHz scan rate and 8-bit color depth
means graphics and animations are played back
are smooth and consistently.
At ENTTEC, manufacturing quality and attention to
detail is paramount. We always use thicker copper
PCB to offer more durability, better heat dissipation
and reduced voltage drop when compared to other
LED strips available on the market. This in
combination with the 12v operating voltage allows
up to a 5m run with a single power injection

FEATURES:

RGBW, 4 in 1 full color LED pixel strip.
Premium flexible white 3oz thicker copper PCB’s. Suitable for stage, entertainment and
architectural applications. 12V DC input supply voltage. 60 LED’s/meter density. 20 Pixels/meter density.
UCS2904 IC chips.
4.29 billion possible shades per LED.
120-degree illumination 3M adhesive double side tape on the rear.
Built-in data signal reshaping circuit. High LED density Can be cut or joined at each copper tab.
IP20 Indoor use only. Designed for use with ENTTEC pixel products. Maximum 19.7 Watts/Meter.

SPECIFICATIONS:

Connectors 2* 3Pin JST SM
connectors (3A Max)
IP rating IP20
Input voltage 12V
Watts/meter (max)
RGB: 13.9 W
W: 5.8 W
Total: 19.7 W
Lumens/meter (max)
RGB: 274
W: 236
Total: 511
Efficacy (Lm/Watt) 25.9
DMX channels/pixel 4
Beam angle 120 °
Control protocol UCS2904 (Compatible with
WS2811)
Scan rate 1.5KHz
Backup data line No
Pixel mapping order GRBW
White temperature 4050K – 4250K
PCB color Black
PCB width 10mm / 0.40”
Bend radius (Min) 30mm / 1.2”
Spacing between cuttable
sections 50mm / 1.98”
Environmental operating
temperature
0°C to 50°C
32°F to 122°F
Environmental operating
humidity
5- 95%
(non-condensing)
Weight (5m roll) 0.18Kg / 0.40lbs
Shipping dimensions
(Single Roll)
240 * 215 * 16mm
9.45 * 8.47 * 0.63”
Shipping weight (Carton
of 5 rolls) 0.80Kg / 1.76lbs
Shipping dimensions
(Carton of 5 rolls)
260 * 225 * 93mm
10.24 * 10.04 * 3.66”
Warranty 1 year return to base
manufacturer warranty
