Enttec Pixelator Mini | 16 Universe Pixel Processor (Ethernet)

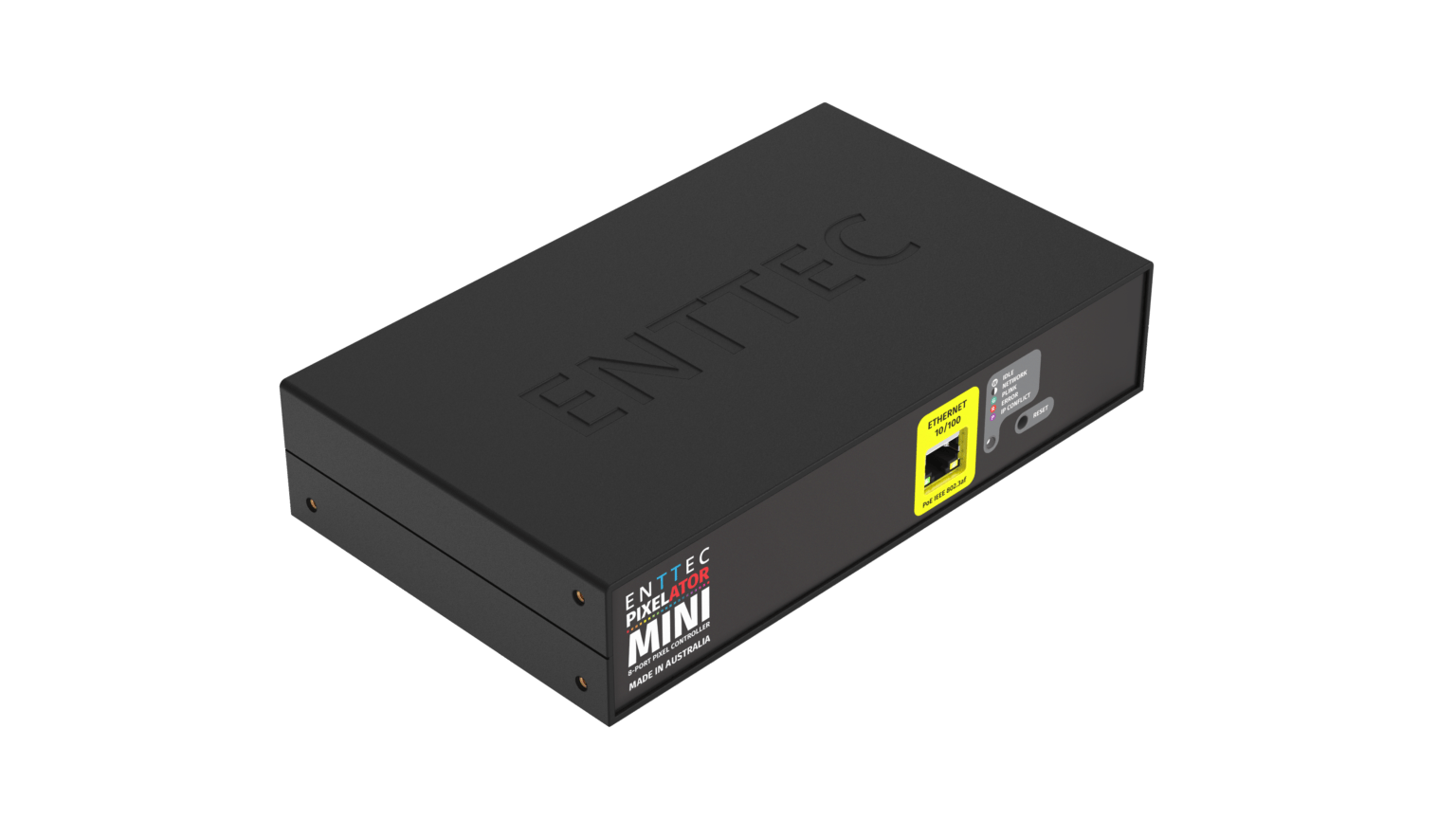

ENTTEC Pixelator-Mini

ENTTEC’s PIXELATOR MINI is an 8-port Ethernet pixel
converter that forms the head end of the PLINK
control system. Each PIXELATOR MINI can receive up
to 16 Universes of DMX over Ethernet and converts
them to ENTTEC’s proprietary PLINK protocol to be
connected to Plink devices, (up to 2 universes of
pixel control data is sent per port).
Each PLINK port can send data 300m using CAT6
cable to ENTTEC devices that receive PLINK data.
The PIXELATOR MINI is powerful enough to control
up to 8,192 channels (2,730 RGB Pixels) with perfect
synchronization and high refresh rate across all
eight outputs.
The PIXELATOR MINI can be configured to receive
sACN, ArtNet, ESP or Kling-Net, then set to output a
wide range of output pixel protocols using its
intuitive web interface.
Mount the PIXELATOR MINI in any location using the
accessories included in the box from rack, to surface,
to DIN. It can be powered using either PoE or the DC
Jack PSU that comes in the box.
Controlling LED pixels, dots and digital strips has
never been easier!
Depending on your project, you can partner the
PIXELATOR MINI with an indoor or outdoor PLINK
INJECTOR compatible with the pixels you’ve
installed. Alternatively, pair it with our CVC4 AUTOADDRESSING CONSTANT VOLTAGE LED DIMMERS - to
create large LED control systems with minimum
configuration.

FEATURES:

16 Universe Ethernet to PLINK data over
Cat5e/Cat6 cable
8* RJ45 ports (each providing 2 Universes of
PLINK data output)
1U Half Width form factor with mounting options
for 1U Half Width Rack, 19” Rack, Surface mount,
TS-35 DIN mounting. Easy to configure & update through any web
browser
Supports sACN, Art-Net, ESP, Kling-Net
RJ45 connector (10/100 Mbps)
Active IEEE 802.3AF Active PoE or 12-24v DC
power input.
All ports feature ESD surge protection and
resettable fuses to block external faults &
electrical noise propagation through control
infrastructure.
Power and output status LED indicators.
Static or Dynamic (DHCP) IP configuration (DHCP
by default)
Compatible with ENTTEC PLINK INJECTOR range Compatible with ENTTEC CVC4 RGBW autoaddressable LED dimmer. Pixel grouping is configurable for each PLINK
port. (1 to 340) for RGB / (1 to 256) for RGBW
Each PLINK output can be assigned up to 2
Ethernet Universes.
Pixel ordering is configurable for each PLINK
port.

SPECIFICATIONS:

Connectors
8* PLINK output (RJ45)
1* Power input (DC)
1* Ethernet (RJ45)
ESD Protection Resettable fuse & TVS
suppression per port.
Surge Protection Yes (all ports)
IP rating IP20
LED status indicator
Forward facing LED
indicator
Network link/Activity
(integrated into RJ45 port)
Input protocols
Art-Net sACN
Kling-net ESP
Output protocol PLINK DATA
Max. output channels 8192 (16 Universes)
Max. output refresh rate 40FPS
Network speed 10/100Base-T
Network configuration Static / DHCP
RDM No
Configuration & Update Web Interface
Input voltage 12-24V DC / PoE
IEEE802.3AF
Max. Power draw 8 Watts
Cooling method Convection
Environmental operating
temperature
-20°C to 50°C
32°F to 122°F
Environmental operating
humidity
5- 95%
(non-condensing)
Body material ABS + anodized
aluminium
Rack Ear Material Powder coated
aluminium.
Unit weight 0.44kg /0.97lbs
Shipping dimensions 390*210*110 mm
Shipping weight 0.79kg / 1.74lbs
Warranty 3-year return to base
manufacturer warranty
