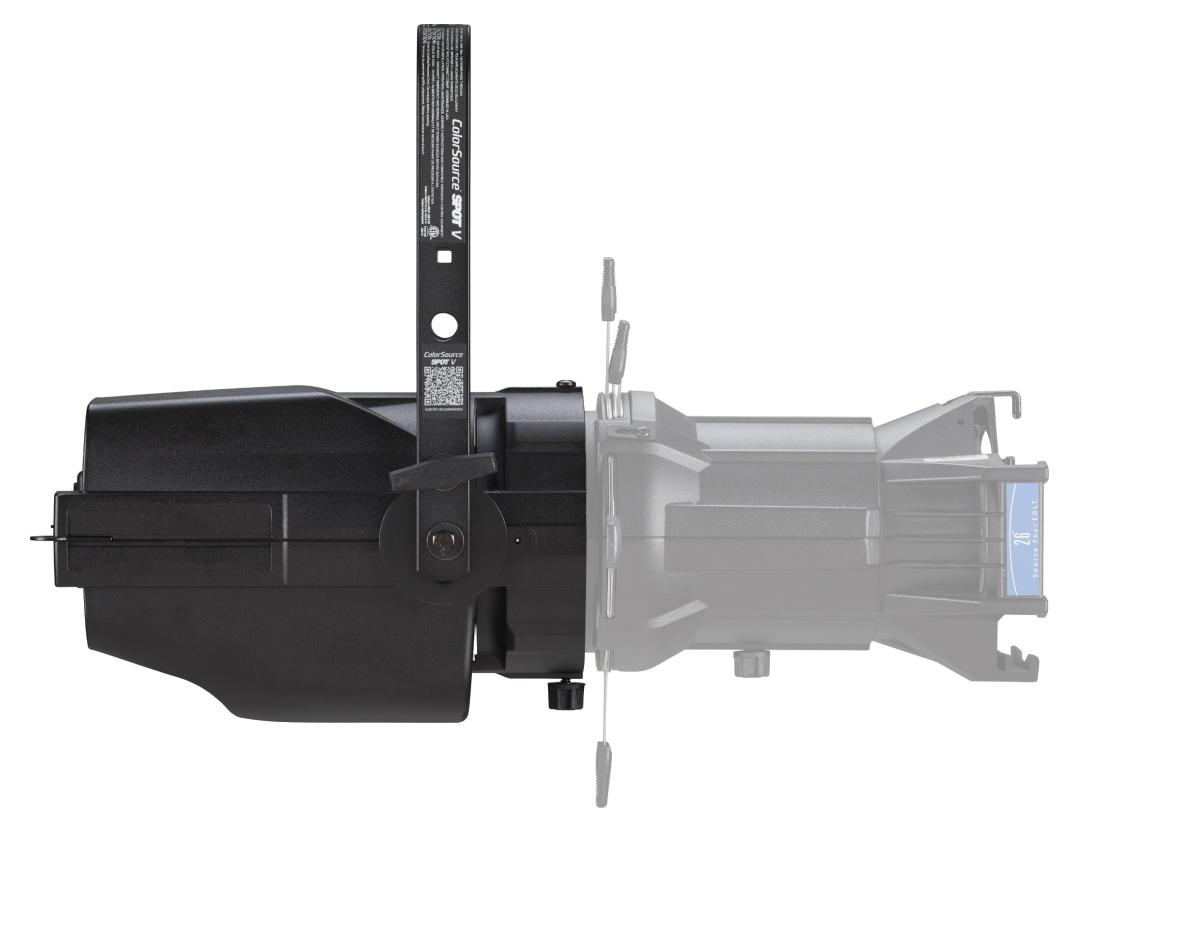

ETC ColorSource Spot V (Light Engine only)

E T C ColorSource Spot V Light Engine  (ETC ColorSource Spot V - Light Engine only)

The ColorSource Spot V brings an amazing richness of color and increased brightness to any space, all at an affordable price point. With a five-color array including red, green, blue, indigo, and lime, this light fixture can create both soft pastels and bold, saturated colors all from a single source. Plus, it features wireless DMX/RDM control using Multiverse technology, NFC configuration from your mobile device, and next-level brightness that make it super versatile and easy to use. Please note that lens tubes are sold separately.

ETC ColorSource Spot V Applications:
Theatres and performance spaces

Houses of worship

Universities and schools

Hospitality

Retail

Exhibition centers

Meeting rooms

Clubs

Cafetoriums

ETC ColorSource Spot V Includes:
ColorSource Spot V with Multiverse, with shutter barrel, black
Hanging yoke
1.5 m power cable
Soft-focus diffuser in an A-size gobo holder
ETC ColorSource Spot V Features:
Five-color array (red, green, blue, indigo, and lime)
Simple user interface with seven-segment display
Powercon True1 top connector
DMX/RDM in and thru (5-pin XLR)
Multiverse wireless DMX/RDM
NFC (near field communication) configuration
LED droop compensation
Optically calibrated
Tour-ready, aluminum housing
Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light (adapters sold separately)
ETC ColorSource Spot V Specifications:
Source
LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
Max lumens: 9,498
Lumens per watt: 48
L70 rating (hours to 70% output): 54,000 hours
Color
Colors used: Red, green, blue, indigo, lime
Color temperature range: Color mixing
Calibrated array: Yes
Red shift: No
Optical
Beam angle range: Swappable lens tubes, 5–90 degrees (sold separately)
Gate size: 80 mm
Aperture size: 6.25" – 14" (depending on lens tube)
Pattern projection: Yes
Pattern size: A or B
Control
Input method: DMX512 via 5-pin XLR connector
Protocols: DMX512/RDM
Modes:(footprint) 4 modes
RDM configuration: Yes
UI type: Seven-segment, three-button interface
Wireless
Band: 2.400–2.480 GHz
Range: 100 m indoors, 500 m line of sight (subject to conditions)
Max receivers:
DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby: 585
Multiverse Transmitter: 5,000
Broadcast power: 100 mW
Electrical
Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 TOP power in and thru
Thermal
Ambient operating temp: 32° – 104° F (0° – 40° C)
Droop compensation: Yes
dB range: 24.4 dBA average at 1 m
Physical
IP rating: IP20
Color: Black
Weight: 17 lb (7.7 kg)
For use with fixed-field lens tubes only
